• Min Button: Use this feature to automatically position the cursor at position with
the minimum value.
To update the maximum scale, enter the number you require using the numeric
keypad and then click on ENTER MAX. The value appears in the Enter Max box.
To update the minimum scale, enter the number you require using the numeric
keypad and then click on ENTER MIN. The value appears in the Enter Min box.
When the numbers have been entered, click OK to close the dialog box and
activate the changes. The max and min values at the left-hand side of the
display.
6.8.3 Trend Display Control
The Trend Display Control allows you to select sets, change the display layout, display the
cursor, and set the time scale of the display, pause the display, or scroll forward and
backward in time.

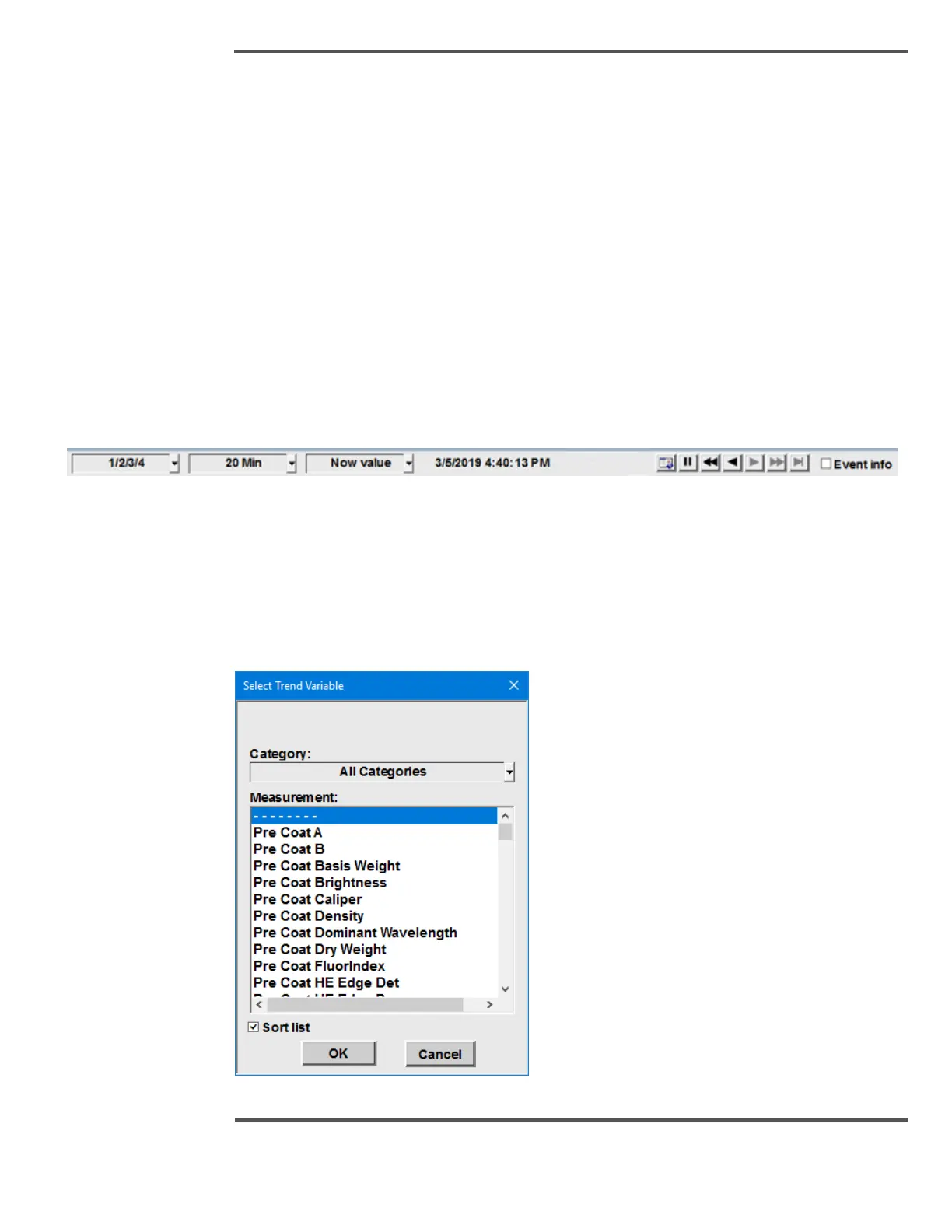

Fig. 122. Trend Display Control
Set Selection
The leftmost drop-down list shows the currently selected set for the trend plot display.
Pressing the drop-down arrow displays a list of all the sets. To change sets, press the drop-
down and highlight the desired set.
Fig. 123. Set Selection in Drop-Down Position
