The profile selection drop-down list can be used to select any profile defined in the system.
To select a new profile, click on the drop-down arrow and then select the desired profile.
A new profile may also be selected with the Profile Selection button that is just to the right
of the drop-down list.
Profile Variable Menu / Measurement Array Selection
When you click on the profile variable button, (or the variable name in the case
where this button does not exist) a context menu appears, highlighting various variables
from which to choose. The display updates with the selected profile and associated data.

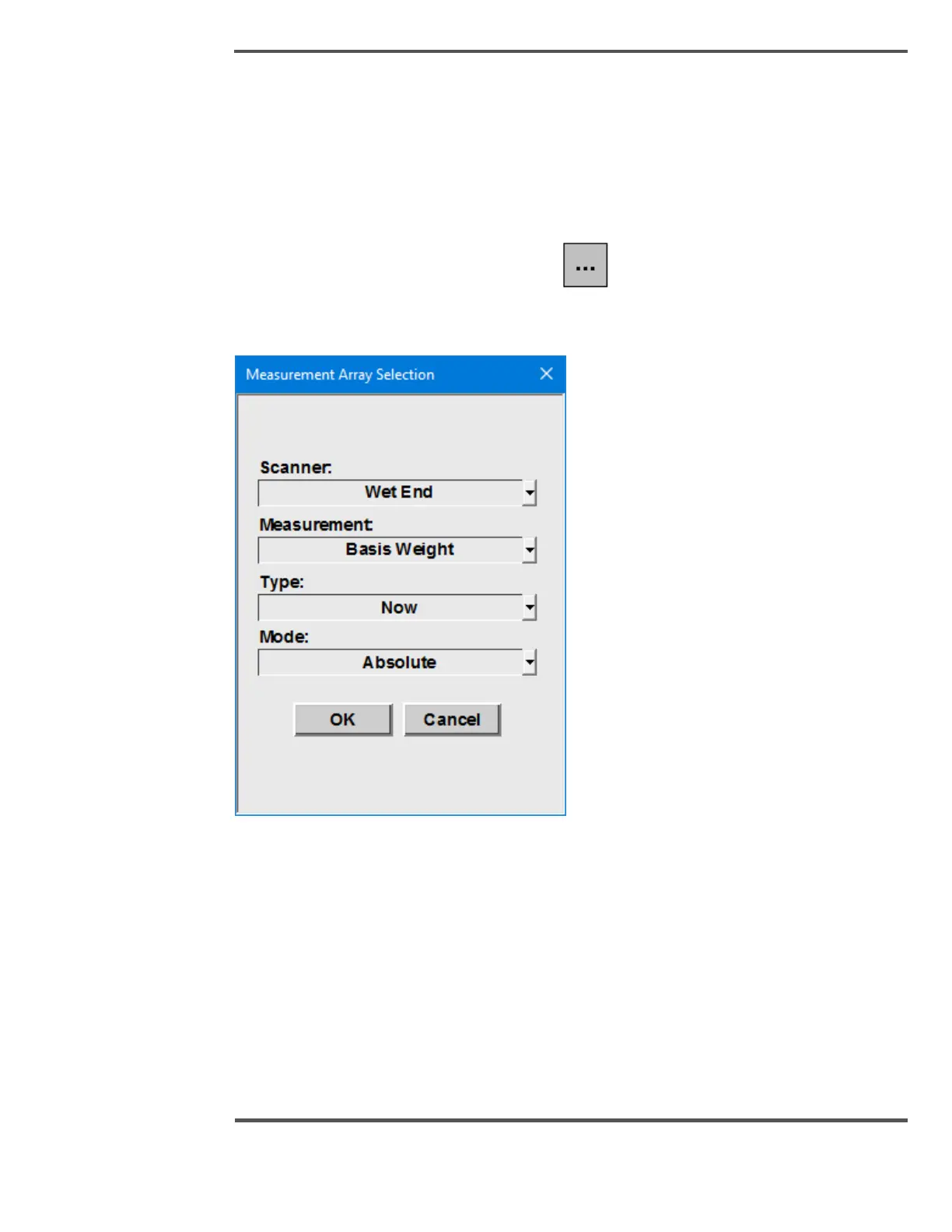

Fig. 107. Profile Variable Menu Display
To set up the required profile, do the following:
1. Select the scanner by clicking on the Select Scanner area. A pop-up dialog box
appears.
2. Highlight the scanner you require.
3. Select the sensor by clicking on the Select Sensor area.
A pop-up dialog box appears.
4. Highlight the sensor required.
5. Select the array type by clicking on the Select Array Type area.
