SCANNER SAFETY AND LOCAL CONTROLS
6510020335
43

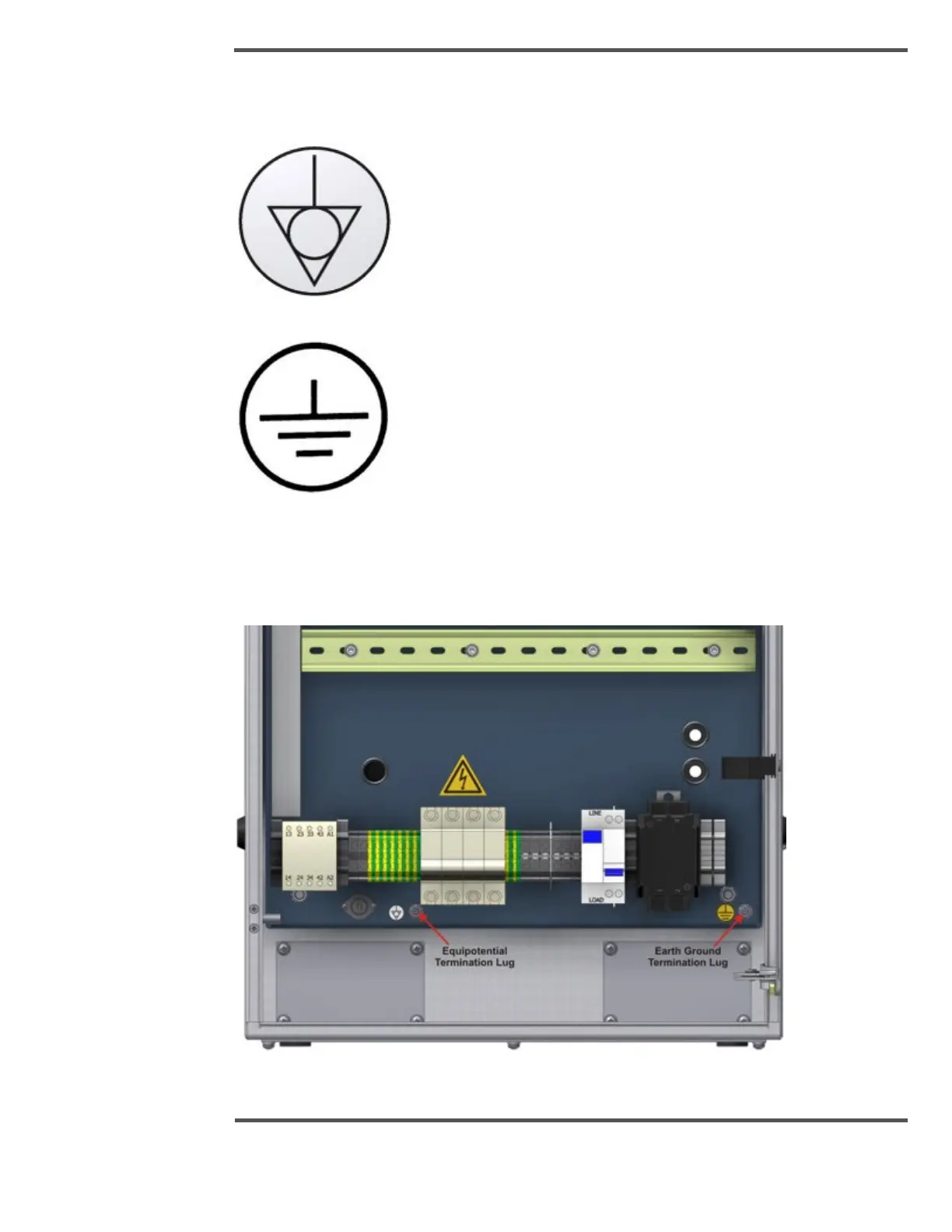

There are two types of labels used that relate to grounding safety: Equipotential (see
Figure 37), and Earth (see Figure 38).
Fig. 37. Equipotential Label
Fig. 38. Earth Ground Label
Grounding is required for safety and reliable operation of the electrical subsystems.
Before power is connected to the scanner, a safety ground should be terminated to the
scanner (see Figure 39).
Fig. 39. Scanner Ground Termination
