44 IFP-300 Series Manual — P/N LS10145-001SK-E:C 4/6/2022
Control Panel Installation RA-2000 Remote Annunciator Installation
4. Attach the annunciator and door assembly to back box as shown below using the supplied screws.
Surface Mounting
The RA-100TR Red Trim Ring kit and RA-100TG Gray Trim Ring kit are available for use when surface mounting the RA-2000.
1. Remove the desired knockout.
2. Mark and pre-drill hole in the wall for the center top keyhole mounting bolt. Refer to Figure 4.23 for mounting hole locations.
3. Install center top fastener in the wall with the screw head protruding.
4. Place backbox over the top screw, level and secure.
5. Mark and drill the left and right upper and lower mounting holes.
6. Install remaining fasteners and tighten.
7. Run wires to the control panel. Refer to Figure 4.26.
8. Place the trim ring over the back box as shown below.
9. Attach the door assembly to the backbox using the screws provided. Refer to Figure 4.24.

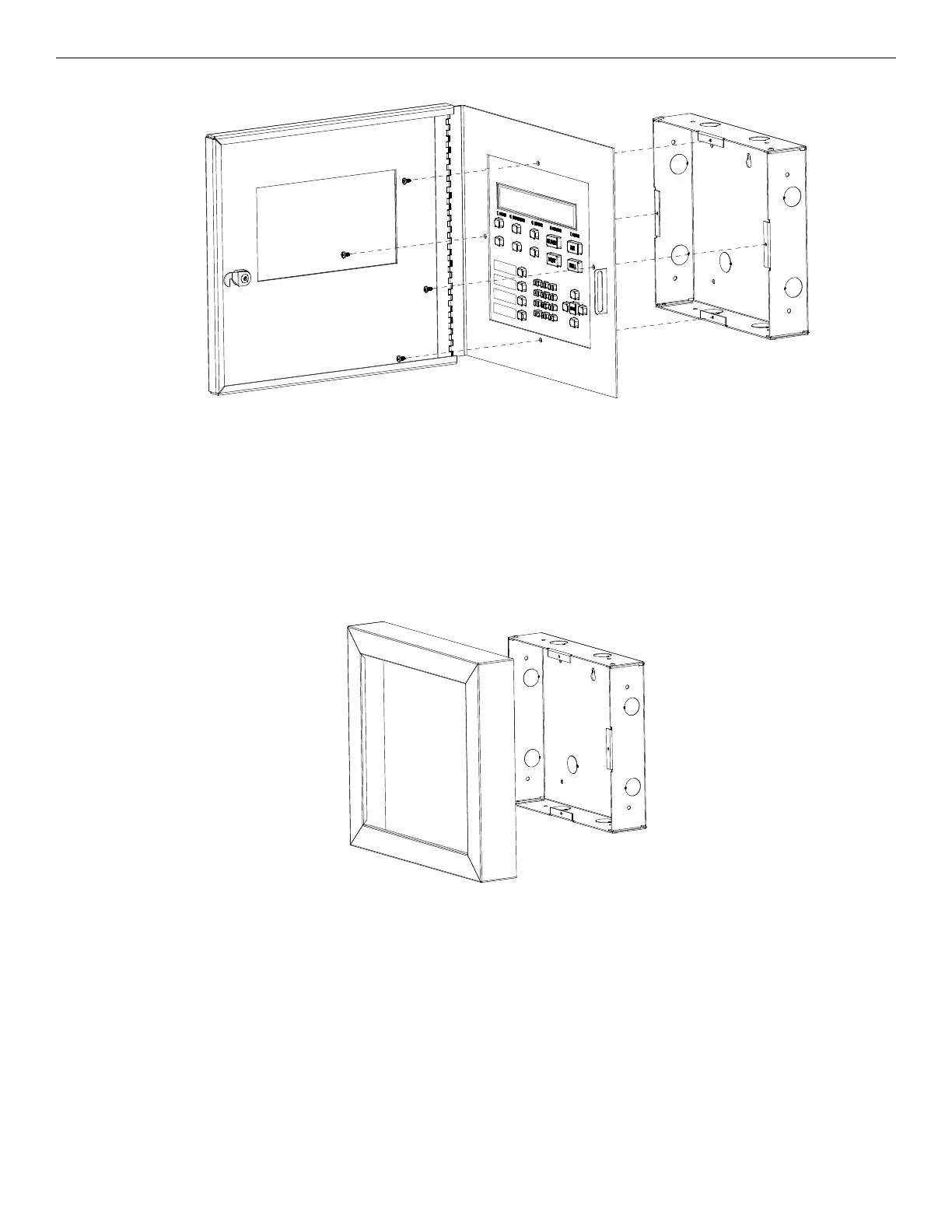

Figure 4.24 Attaching Annunciator / Door Assembly to Backbox
Figure 4.25 Installing Trim Ring
