Remote Station Applications Control Panel Installation
Wire the SD500-ARM as shown below.
Using a MR-201/T Control Relay From Air Products
When the MR-201/T control relay is wired for polarity reversal, it reports alarm and trouble events to a remote site. Alarms will override
trouble conditions and it will not be possible to reset the remote indicator until the condition is cleared and the control panel is reset. If an
alarm condition occurs, the alarm relay will close, overriding the trouble condition.
• Current: 15 mA max.
• Operating Voltage: 24 VDC nominal
• Resistance: 4 KΩ
TROUBLESBUS OUT
NC C NO
- +
A B
RELAY1
NC C NO
RELAY2
NC C NO
NAC1 NAC2 NAC3 NAC4
+ - + - + - + -
Intended for connection to a
polarity reversal circuit of a
Remote Station Receiving
Unit having compatible rating.
to remote
receiving station
SLC Out -
SLC Out +

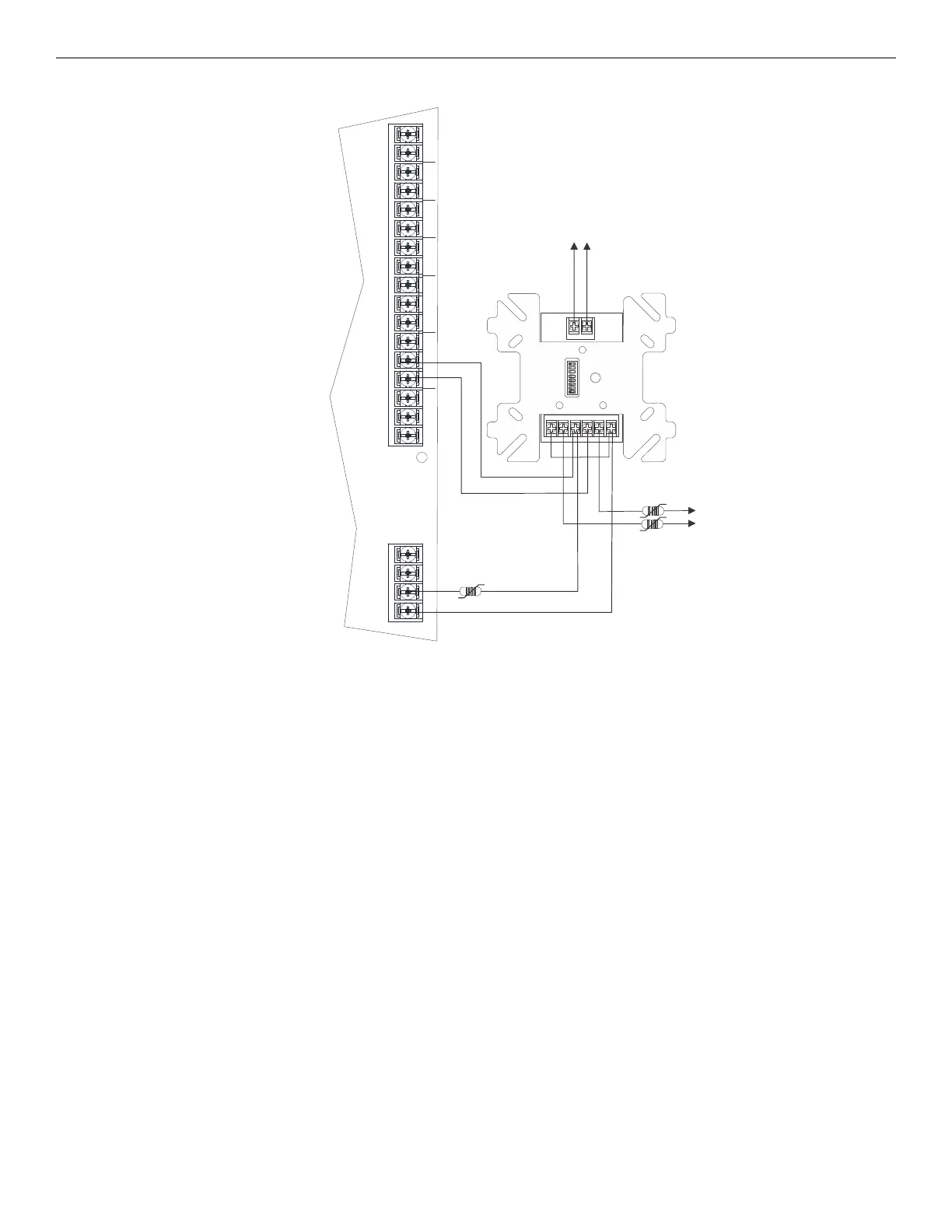

Figure 4.51 Polarity Reversal Connection Using the SD500-ARM Module
EOL
