230 HC900 Process & Safety Controller User and Installation Manual Revision 6
21 April 2017

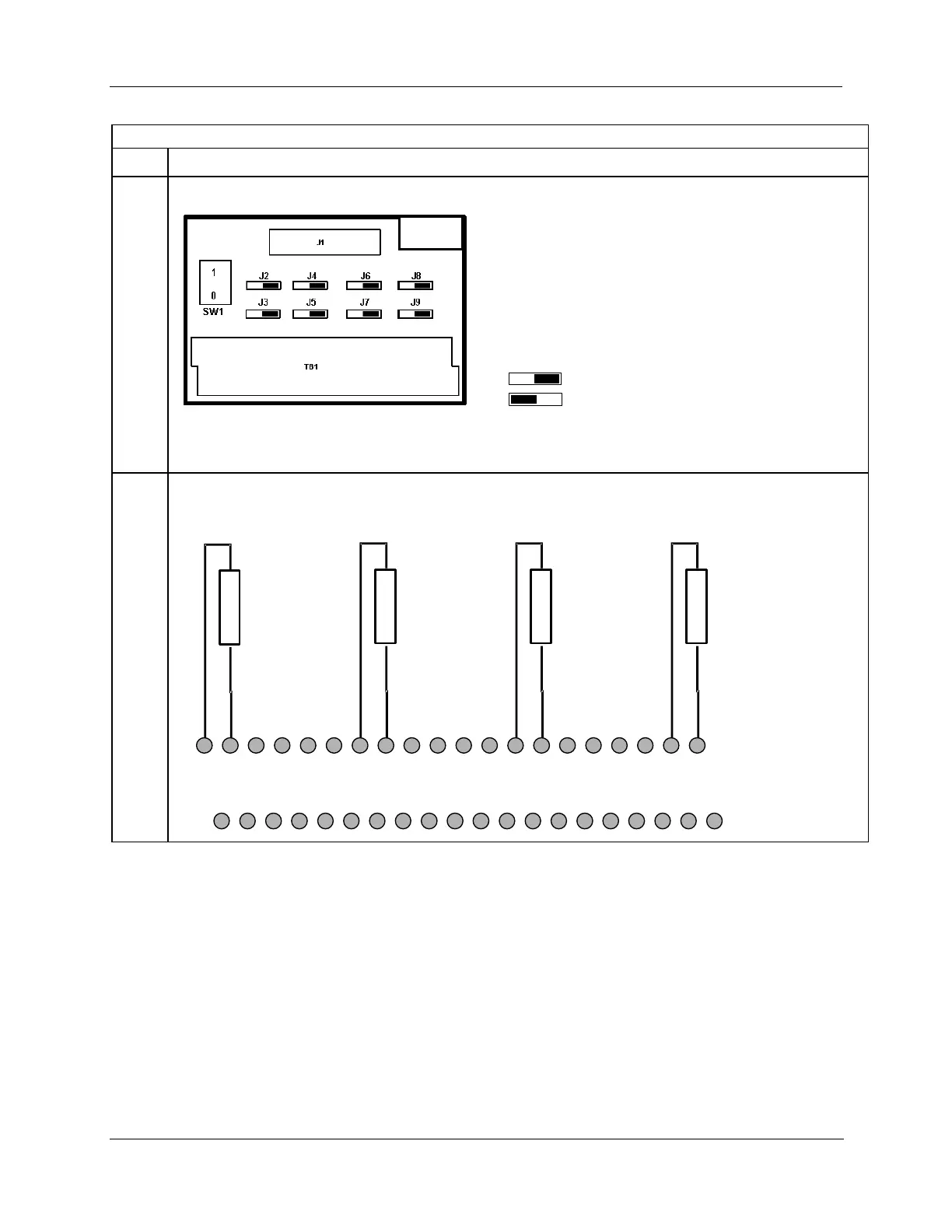

4 Point Analog Output
Step
Action
3
Set/verify jumper positions as shown for use with an analog output module.
Jumper open
Jumper closed
SW1 is not used. Module RIUP is not affected by using the RTP.
See page 240 for RTP internal schematic.
4
Connect field wiring.
1 2 3 4 5 6 7 8 9
10
11
12
13
14
15 16 17
18 19 20
21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40
LOAD
LOAD LOAD LOAD
AO-1
AO-2 AO-4 AO-3
LOADS ARE 0 to 750 ohm
AO1+ AO1
-
AO4+ AO4
-
AO2+ AO2
-
AO3+
AO3
-
