16 Point AC Digital Input
Step
Action
4

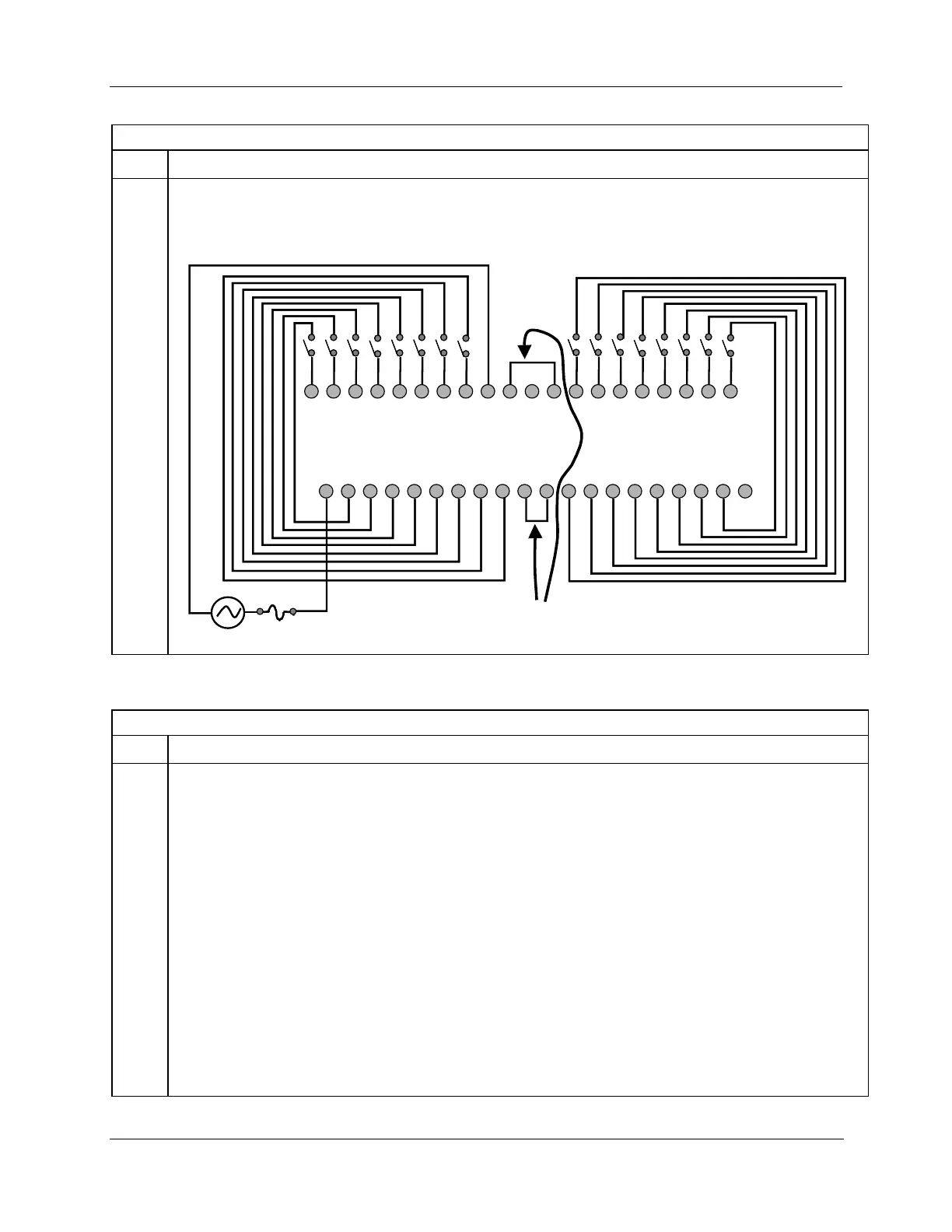

Connect field wiring.
Note: S-L1 in the wiring figure below refers to power that is disconnected from these screw terminals when
switch SW1 is open (0).
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40
IN1
IN2 IN3 IN4 IN5 IN6 IN7 IN8 IN9
IN10 IN11 IN12 IN13 IN14 IN15 IN16
L2
IN1+
IN2+ IN9+
IN10+
IN5+ IN6+
L2
IN3+
IN4+ IN7+
IN8+
L2 L2 L2 IN11+ IN12+ IN13+ IN14+ IN15+ IN16+
S
-
L1
S
-
L1
L1
S
-
L1
S
-
L1
S
-
L1
S
-
L1
S
-
L1
S
-
L1
S
-
L1
S
-
L1
S
-
L1
S
-
L1
S
-
L1
S
-
L1
S
-
L1
S
-
L1
S
-
L1
S
-
L1
S
-
L1
L1
Install jumper wires
16 Point DC Digital Output
Step
Action
1
ATTENTION: RTP and cables are intended for permanent installation within their own enclosure.
ATTENTION: 16 point DC Digital Output is rated at 8A per module and 1A per output. Limited to 4A
per group of 8.
ATTENTION: The RTP combines the two groups of 8 outputs into one group of 16.
Mount RTP cable assembly to HC900 Controller (Figure 96).
 Remove appropriate key tabs from terminal board to allow mating with the module. See page 85.
 Connect desired cable to 16 point DC DO module at controller. Choose from:
900RTC-L010 Remote Terminal Low Voltage Cable Assembly, 1.0 meters long
900RTC-L025 Remote Terminal Low Voltage Cable Assembly, 2.5 meters long
900RTC-L050 Remote Terminal Low Voltage Cable Assembly, 5.0 meters long
 Install 16 point DC DO label into the module connector cover.
 Connect shield drain wire to the grounding bars at the base of the HC900 rack. All field-wiring
shields must be grounded as described in the shield grounding section (page 81).
