18 PC45 Series Printer User Guide

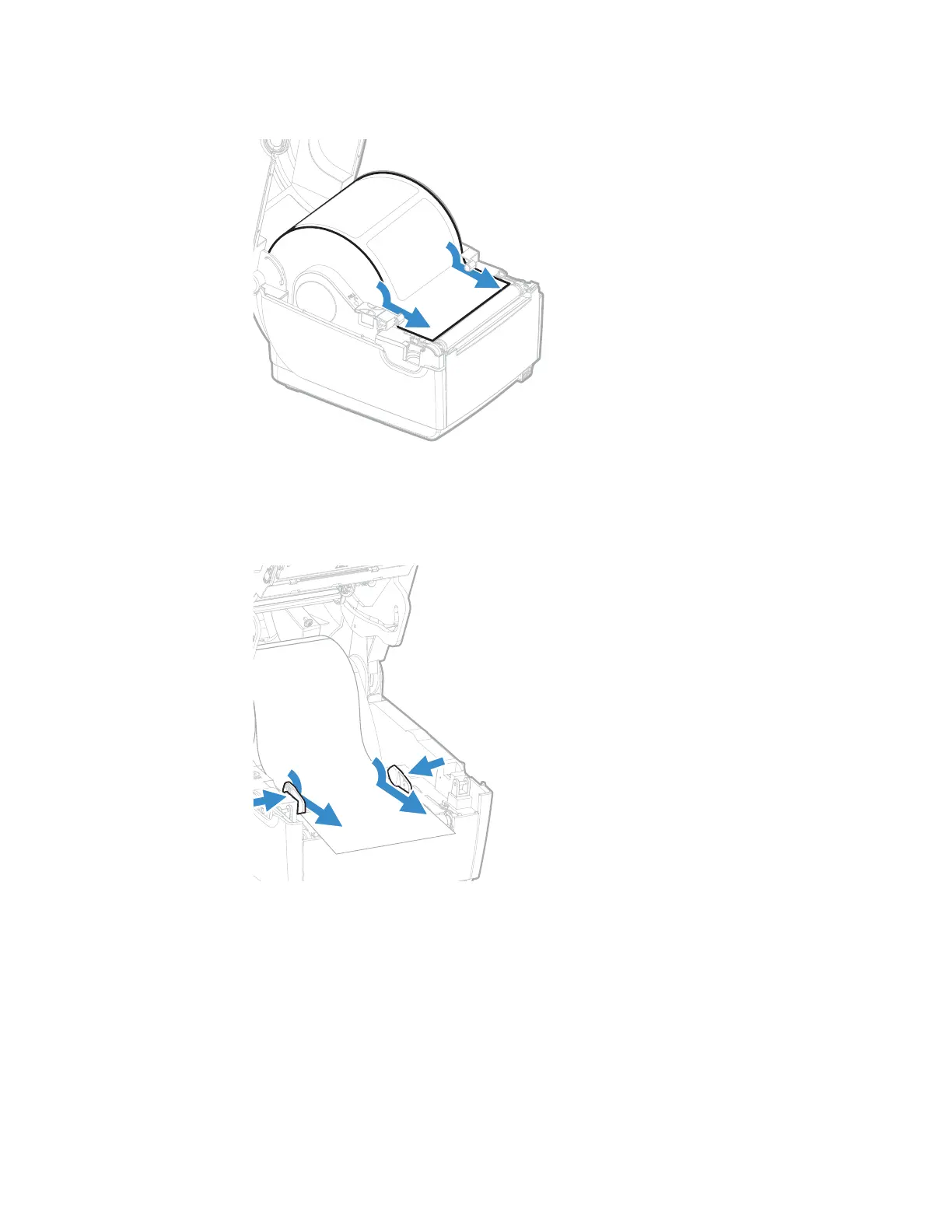

6. For PC45d printer, thread the media under the tip guides on the media holders
and past the front of the printer.
For a PC45t, thread the media through the media guides and past the front of
the printer. To adjust the width of the media guides, slide the guides as needed
to fit your media.
7. Close the printer lid until it snaps shut.
8. Turn the printer on and configure the feed adjust settings.
