Removal and Replacement 7-21
Audio Card (HP VISUALIZE K260/K450/K460 Workstations)
Removal: Refer to Figure 7-16
1. Remove the core I/O card.
2. Disconnect the audio card by grasping the card on the edges and lifting the card off the two standoffs
on the core I/O board and off the connector pins. This will disengage the core I/O connection. (Note
that the connectors between the standoffs pass through the holes in the audio board. These connectors
are for connection to the internal modem card.)
3. Pull the audio card away from the core I/O card and bulkhead.

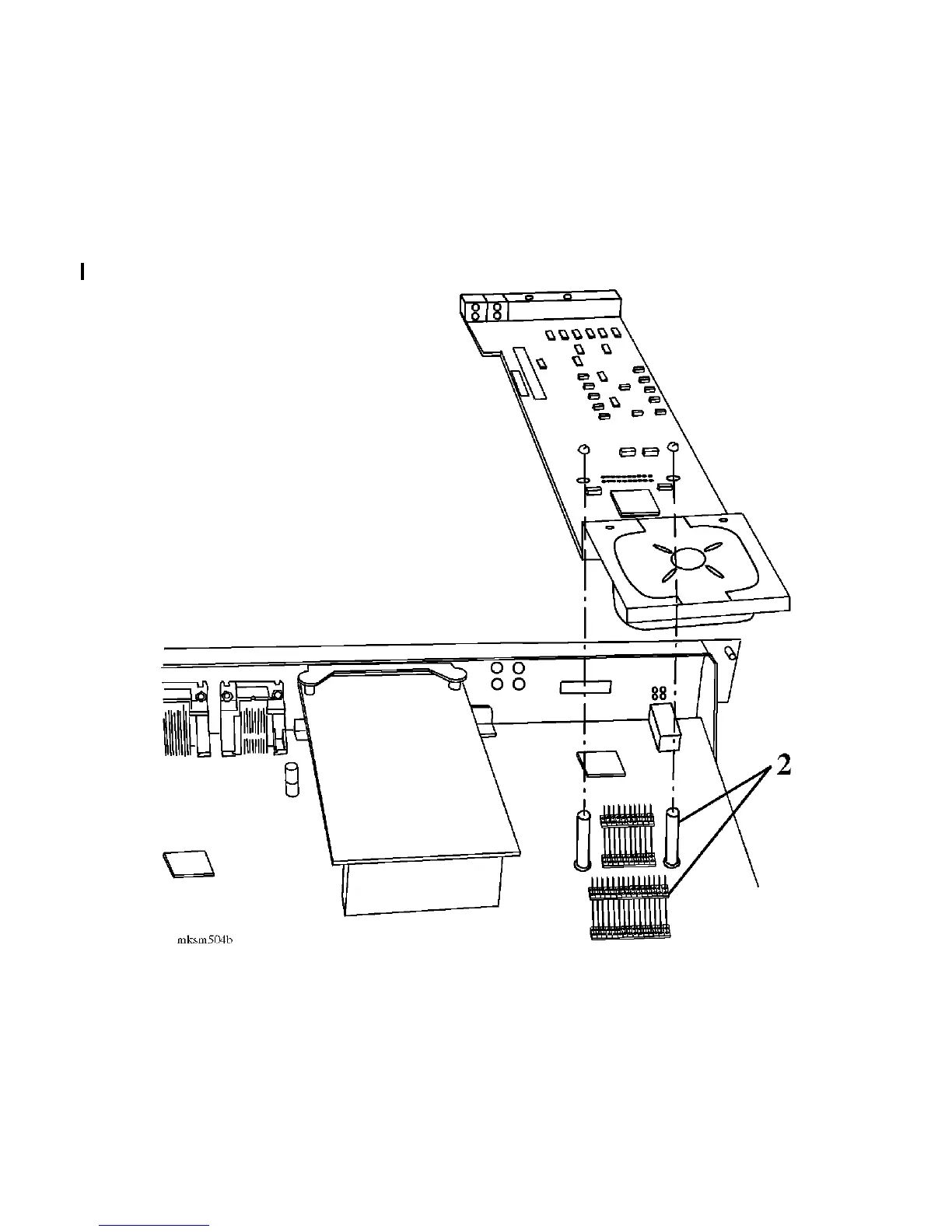

Figure 7-16 Audio Card Removal and Replacement
Replacement:
1. Align the audio card bulkhead connector and LEDs with the holes in the bulkhead (audio card compo-
nents facing up). The four jacks for headset and microphone align with the four holes shown in the
bulkhead.
2. Align the card over the two standoffs as shown in Figure 7-16 Carefully press the core I/O pins into the
rear connector on the audio card.
