HP 3000 9x9KS - Jumpering

SCSI and I/O 8-47
Jumpering
Figure 8-22 shows a bottom view of the drive for purposes of showing the device ID Jumper J6,
configuration jumper connector J2 and the location of the J1 connectors.

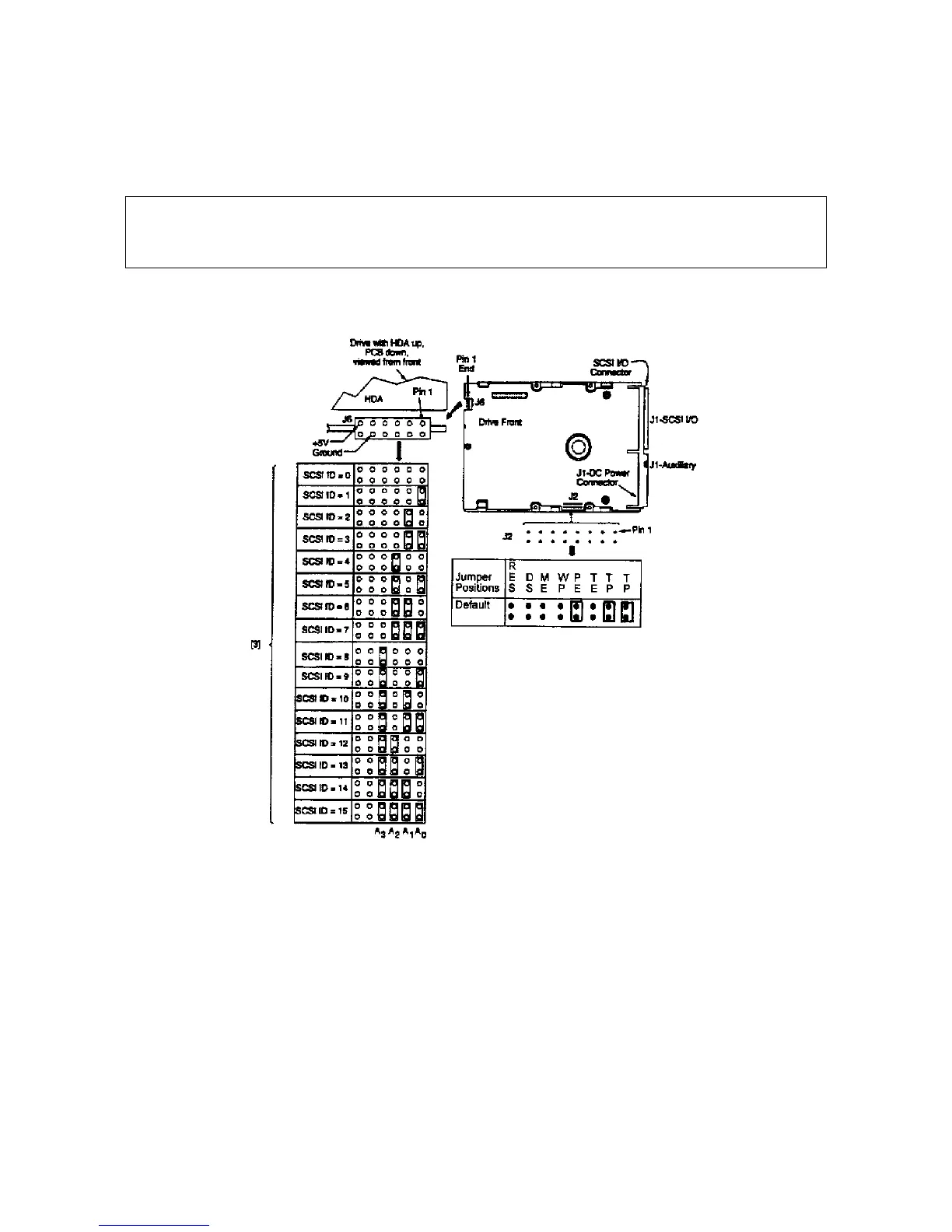

Figure 8-22. HP A3058A Jumper Diagram
NOTE
Use J1-Auxiliary connector for ID. If bothJ1 and J6 are used, the unit takes the OR of both as the
SCSI ID.
