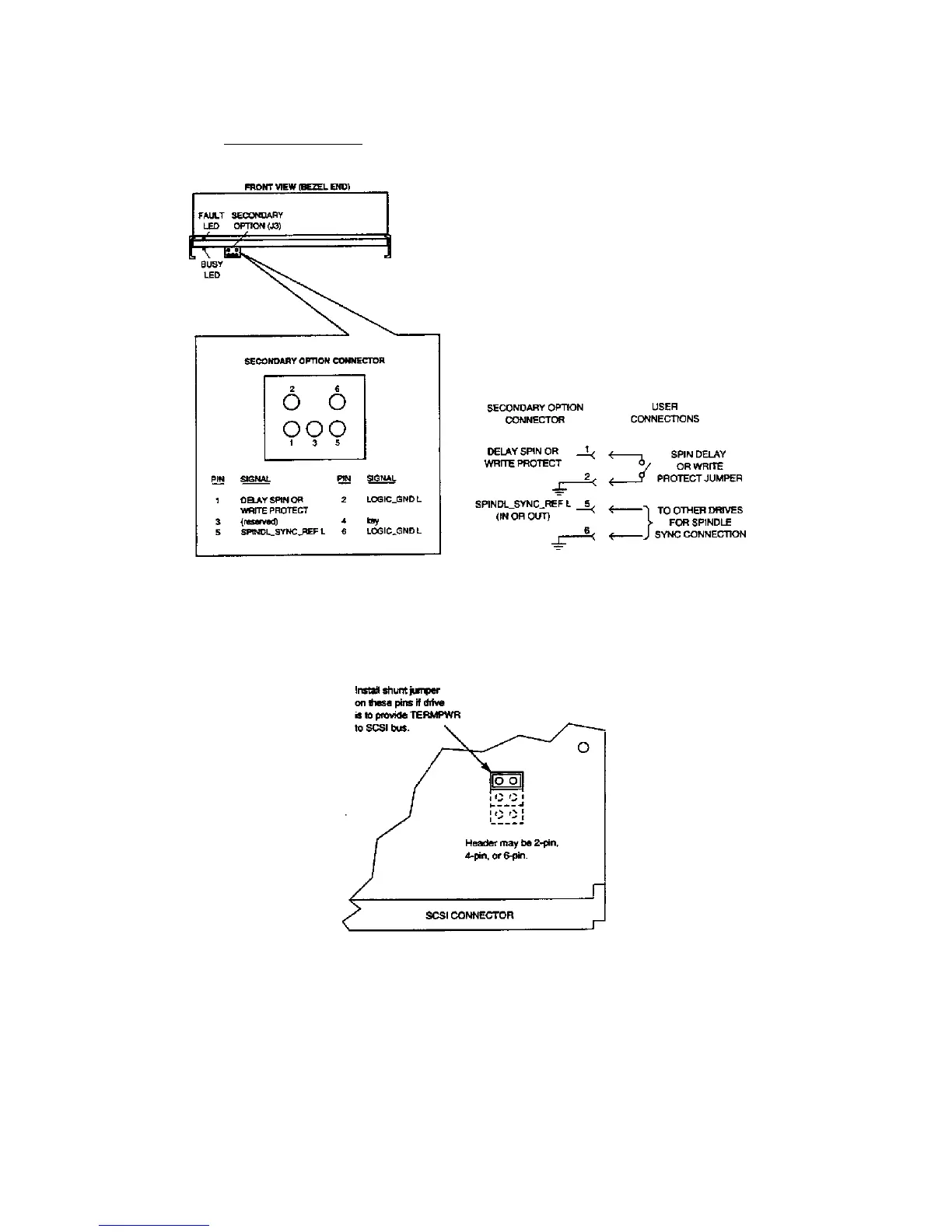

Figure 8-26 shows the location of the FAULT LED and the secondary option connector. The default jumper
configuration is no jumpers installed.
Figure 8-26. HP A3058A Fault LED and Secondary Jumper Diagram
Figure 8-27 shows the termpower jumper block on the bottom of the drive controller. The default
configuration is jumper installed. No on board termination is available on this disk drive.
Figure 8-27. HP A3058A Terminator Power Jumper Diagram
The default jumper settings are; Terminator Power Jumper installed, all others open. SCSI ID as needed.
Preventative Maintenance
There is no preventative maintenance required for this product
