Removal and Replacement 7-27

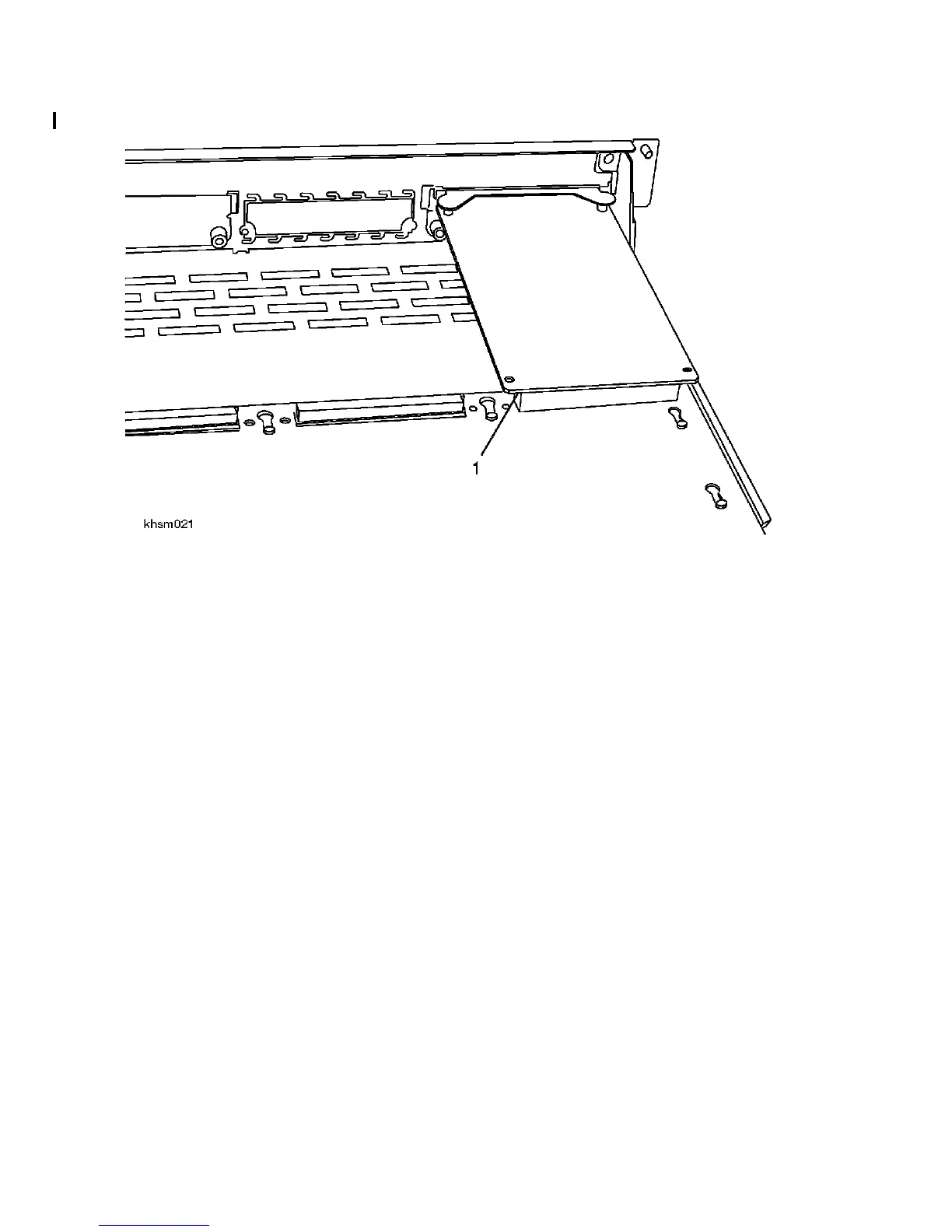

Figure 7-22 HP-HSC Expansion Card Removal
Replacement:
1. Angle the HP-HSC I/O card so the hooked tabs slide through the bulkhead slots.
2. Push the back of the HP-HSC I/O card down to fully seat the card into the mother board.
3. Tighten the two captive mounting screws on the expansion I/O card bulkhead, to secure the HP_HSC
I/O card to the mother board.
4. Replace the HP-HSC Expansion I/O card into the chassis.
5. Reconnect all cables that were removed.
HP-PB I/O Card
Removal:
1. Remove the interface cable.
2. Loosen the two (1 top and 1 bottom) captive mounting screws.
3. Pull the extractor levers out, pull the card out of the chassis by the extractor levers.
Replacement:
1. Align the card in the appropriate slot.
2. Press firmly to fully seat the card into the system card.
3. Reconnect the cable to the card.
