Model 5340A
General Information
Table
1
-
3.
Specifications (Continued)
GENERAL (CONTINUED)

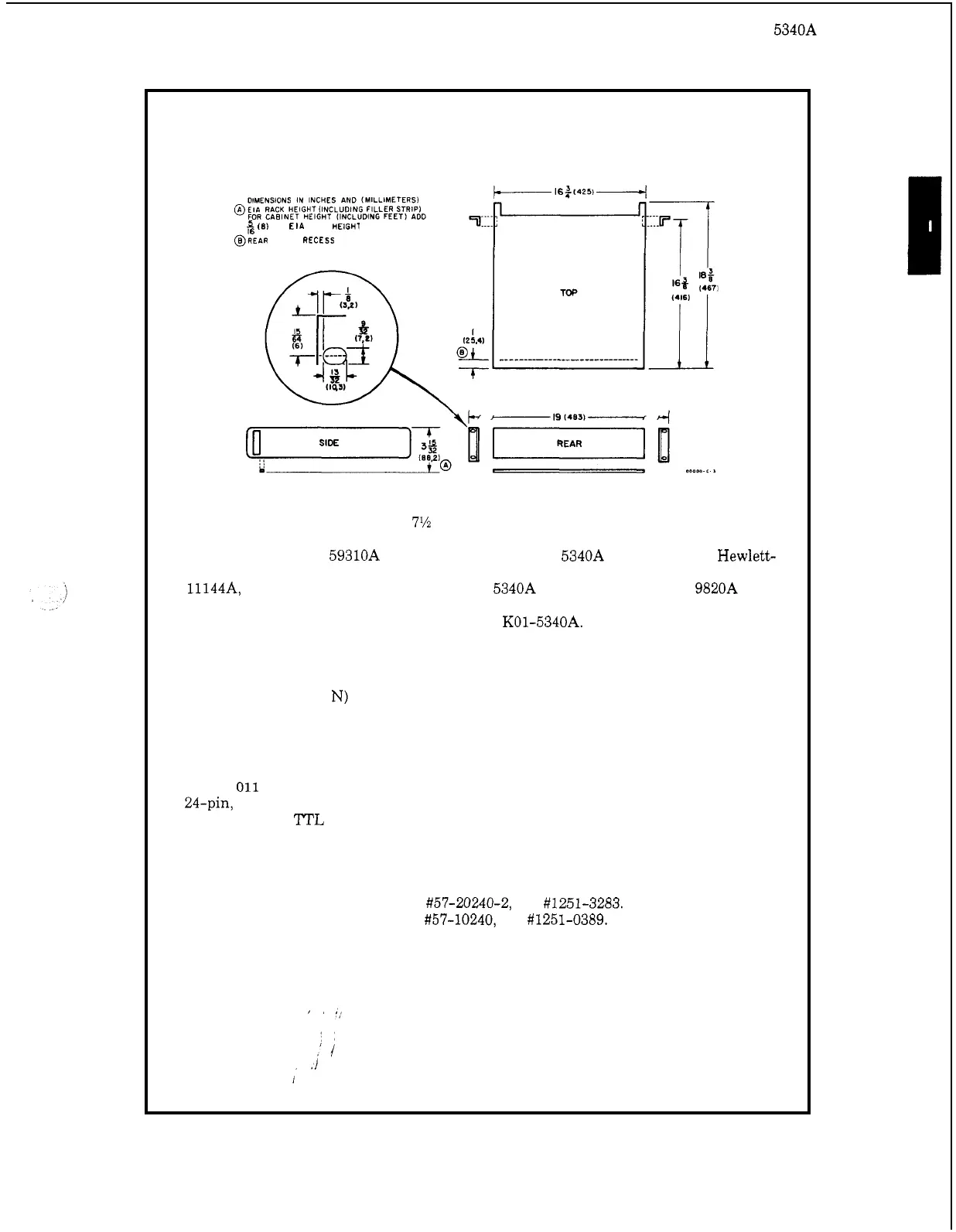

Dimensions:
NOTE
$
IB)
TO
ElA RACK HEIGHT
@REAR
APRON
RECESS
Accessories Furnished:
Power cord 7% ft (200 cm), NEMA plug (HP
Part
Number 8120
-
1378)
Accessories Available:
59310A Interface Kit for use with 5340A Option 011 and Hewlett-
Packard computers.
11144A, Option 20 Interface Kit for use with 5340A Option 011 and Model 9820A
Calculator.
ASCII (Option 011) to parallel BCD converter
K01-5340A.
Rear Panel Connectors (Option
002)
This option provides input connectors on the rear panel. Input specifications remain the
same. Input
1
(Type N) is on the rear panel in place of installation on the front panel.
Input
2
(BNC) is available on the front and rear panels. Input impedance
is
reduced
to 5012.
Remote Programming and Digital Output (Option
011)
Option
011
adds the capability
of
digital outputting and remote programming
via
a
24-pin, series 57 microribbon connector on the rear panel marked DIGITAL INPUT/
OUTPUT. The
TTL
and DTL compatible, bi
-
directional bus consists of eight data lines
plus seven status and control lines. Both program and output information are seven
-
bit
ASCII (USA Standard Code for Information Interchange) characters. They are passed
over the data lines on
a
character
-
serial basis.
Connector:
24
-
pin female Amphenol #57-20240-2, HP #1251-3283.
Mating connector male, Amphenol #57-10240, HP #1251-0389.
1
-
5
