HP 5340A Service Manual

Model 5340A
Theory of Operation
4
- 75. Presettable Binary CountedLatch 1820-0765
4 - 76.
configuration.
"he 1820 - 0765 is similar to the 1820 - 0751 except that the 1820 - 0765 has a +2 and +8
4 - 77. Hex D - Type Flip - Flops 1820 - 0788
4
- 78.
The 1820
- 0788 (Figure 4 - 34) consists of six positive - edge - triggered D flip - flops. Infor -
mation at the D inputs is transferred to the Q outputs on the positive - going edge of the clock
pulse. Clock triggering occurs
at a particular voltage level and is not directly related to the
transition time of the positive
- going pulse. When the clock input is at either the high or low level,
the
D input has no effect on the output. A low input to pin 1 resets all Q outputs to low.

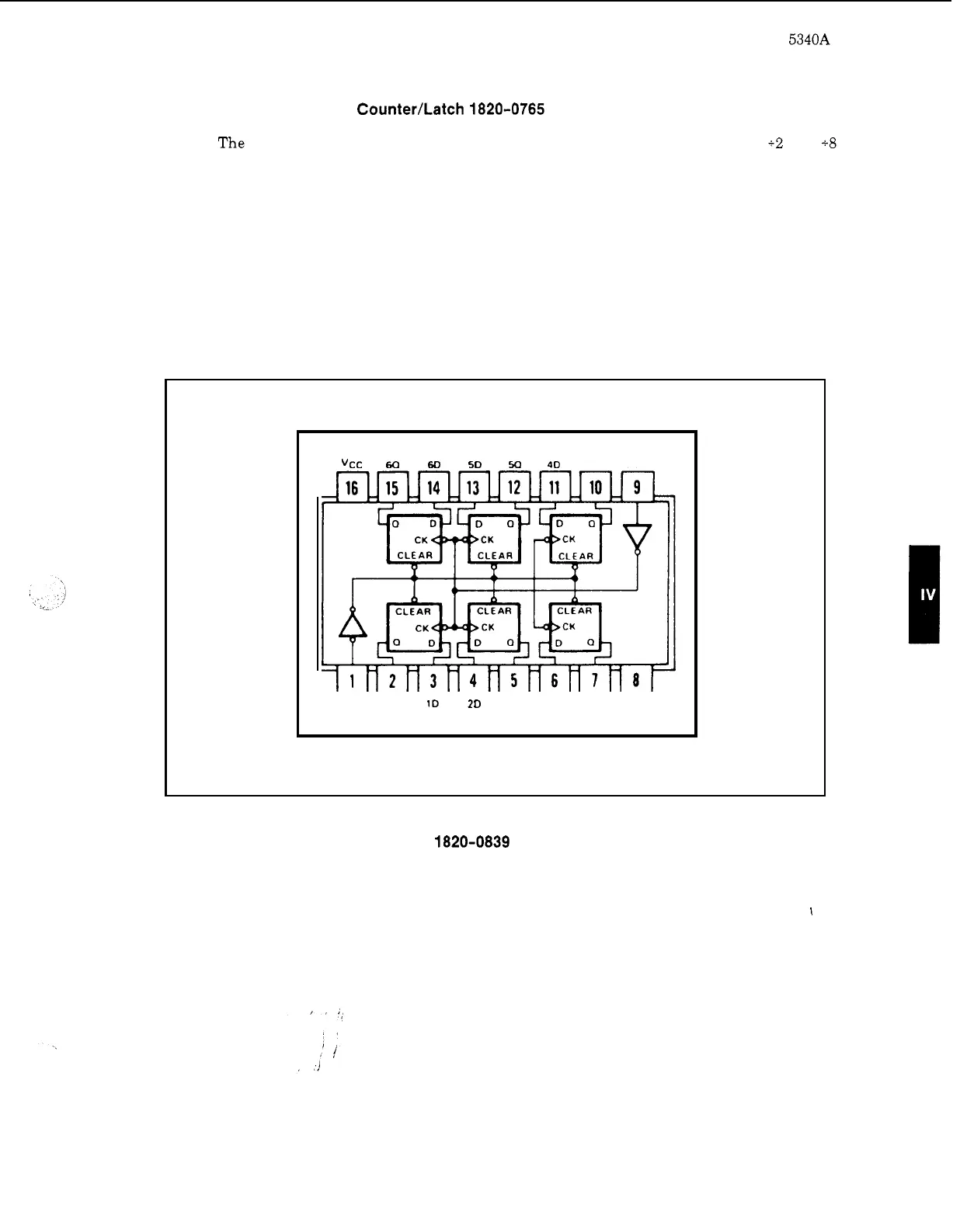

Figure 4
- 34. Hex D - Type Flip - Flops 1820 - 0788
VCC 60 60 5D M 40 40 CLOCK
- -- - - - - -
CLEAR 10 1D ZD 20 30 30 CND
4 - 79. Quadruple D - Type Flip - Flops 1820-0839
4 - 80.
complementary outputs from each flip
- flop.
The 1820
- 0839 (Figure 4 - 35) is similar to the 1820 - 0788 except that the 1820 - 0839 has
I
4 - 25
