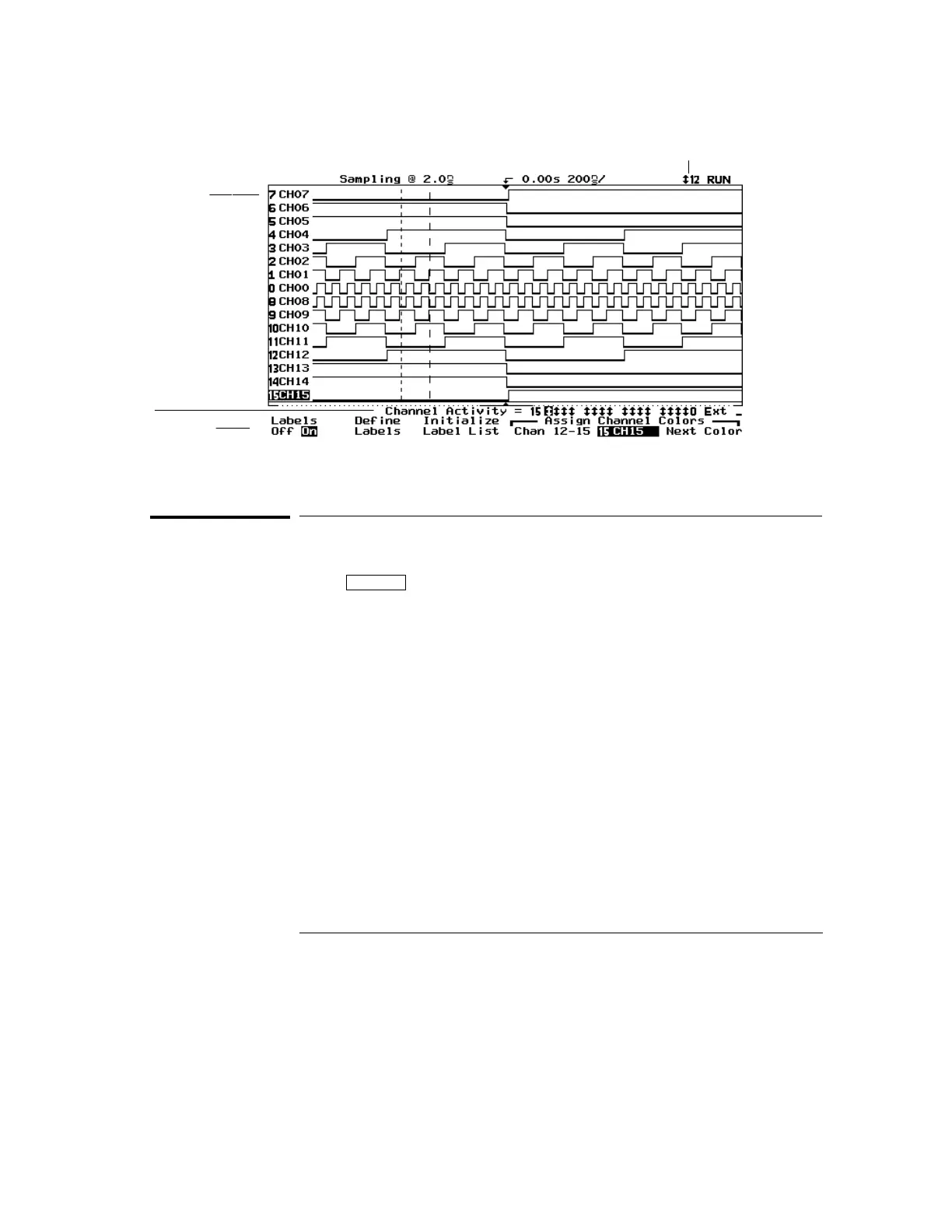

HP 54620C with Label Menu Selected and Single Channel Highlighted
To print in color
1
Press
Print
.
Steps 2-4 are valid if you are using the HP 54652B Interface Module. The
HP 54652B is the recommended module for non-HP-IB applications. The
HP 54659B will function as a hardcopy and computer I/O, but none of its
advanced features are active in the logic analyzer. The HP 54652B and
HP 54659B each have dual interfaces (a parallel port and RS-232). If you are
using these modules, you can set the Destination to either Parallel or RS232.
Because there are no color printers with an HP-IB Interface, the HP 54650A
module is not recommended for color printing.
2
Press
Hardcopy Menu
. Then press
Format
until it displays
HP DJColor
.
This selects the HP DeskJet Color Printer format.
3
Set the Destination to
Parallel
.
4
Press
Previous Menu
. Then press
Print Screen
.
The current display will be sent out the parallel port to the HP DeskJet color
printer attached to your logic analyzer, and printed in color.
Channel
activity
indicator
Softkeys
Trigger condition
Figure 5
Channel
labels
Getting Started
To print in color
34
