Delayed Sweep
Graticule
The graticule on the HP 54620A/C has three settings, Full, None, and Frame,
allowing you to change the pattern of hash marks on the display. This can
make it easier to view or measure waveform events.
Printing
You can print the status line and the waveform display to an HP- or
Epson-compatible printer attached to one of the optional interface modules
(HP 54650A—HP-IB, or HP 54651A or HP 54652A/B—RS-232). These
printouts can be used for analysis, publication, test reports, and so on.
Delayed-sweep
indicator
Time/Div
for delayed
sweep
Time/Div for
main sweep
These markers define
the beginning and
end of the delayed
sweep window
Here, the time
reference is set to
“left,” the delay
is 0
Select either
main or delayed
sweep
Increase
the number
of Time/Div
settings
Set the position of
the trigger in
acquisition memory
Main sweep
window
Delayed sweep
window

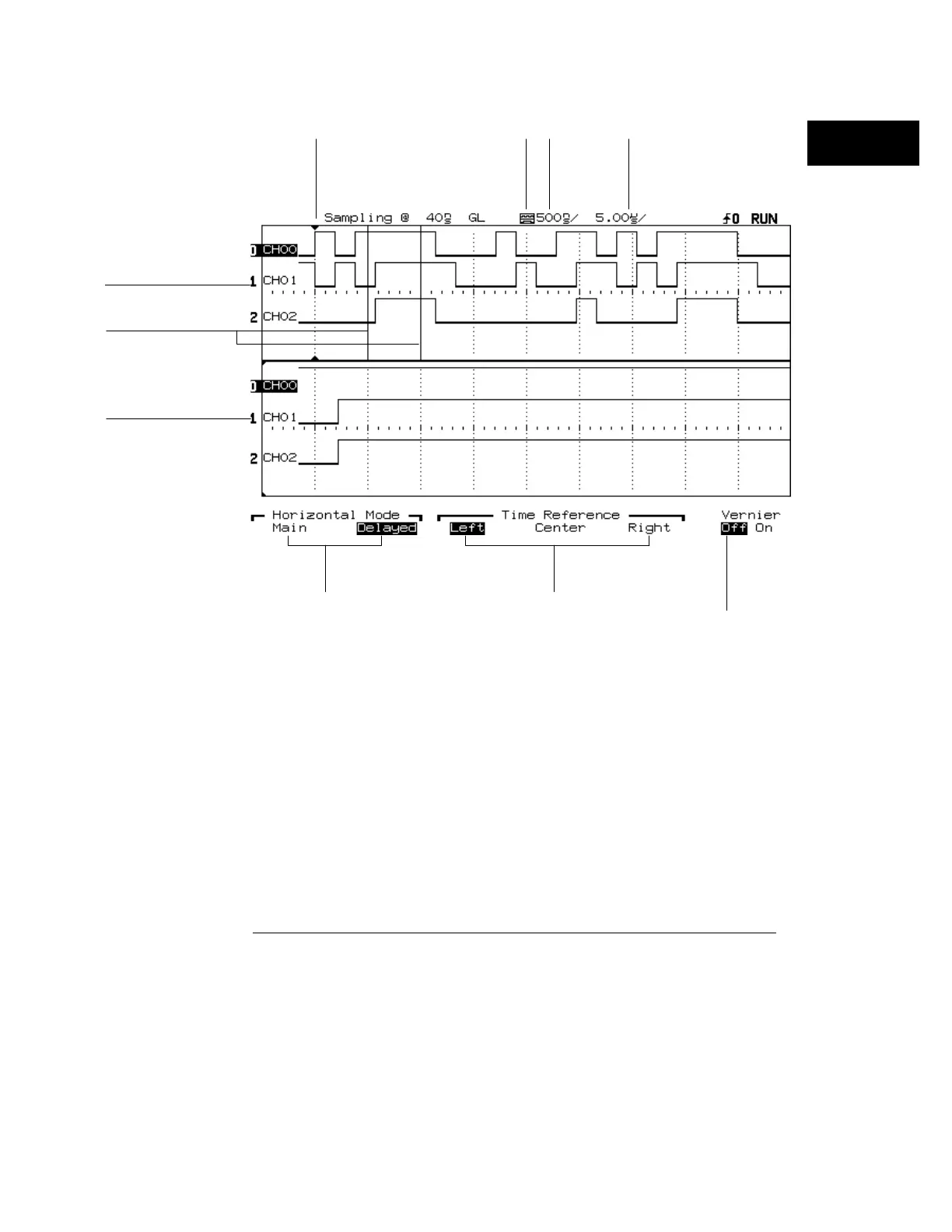

Figure 20
Making Analyzer Measurements
Viewing acquired data with delayed sweep
81
