Single-Channel Measurements
All five of the single-channel measurements in the HP 54620A/C—period,
frequency, duty cycle, positive width, and negative width—are concerned
with measuring the time between sets of events on the same channel, then
calculating the appropriate values based on the definition of the
measurement.

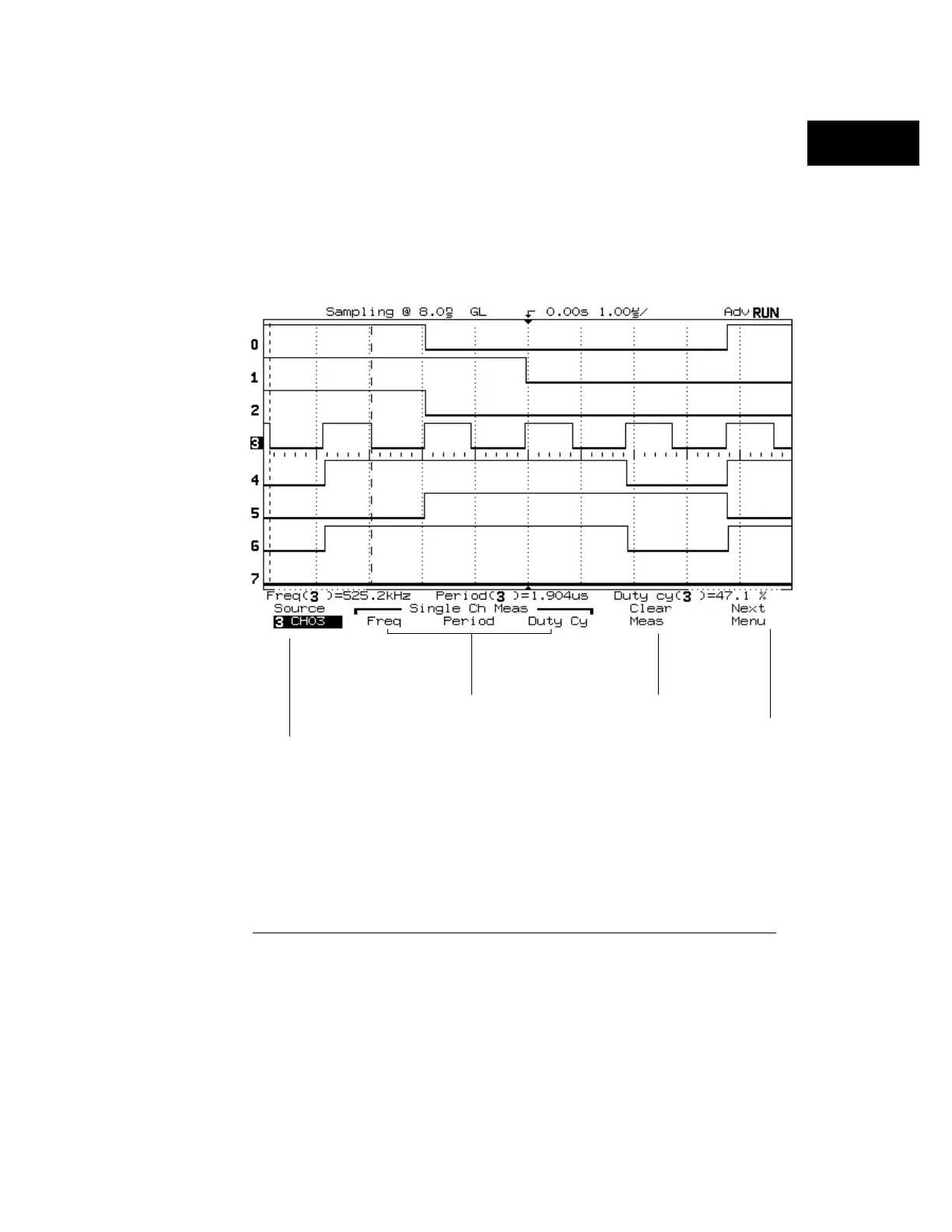

Figure 24 shows frequency, period, and duty-cycle measurements on channel
3 of the input.
Single-Channel Measurements
Select the
waveform to be
measured using
the softkey, or
the Select or
Entry knobs
Choose the
measurement
to be made
Access the
positive and
negative
width
measurements,
and the Show
Measurements
On/Off softkey
Erases the
measurement
field
Figure 24
Making Analyzer Measurements
Ways to measure data
91
