Connector Pins
133

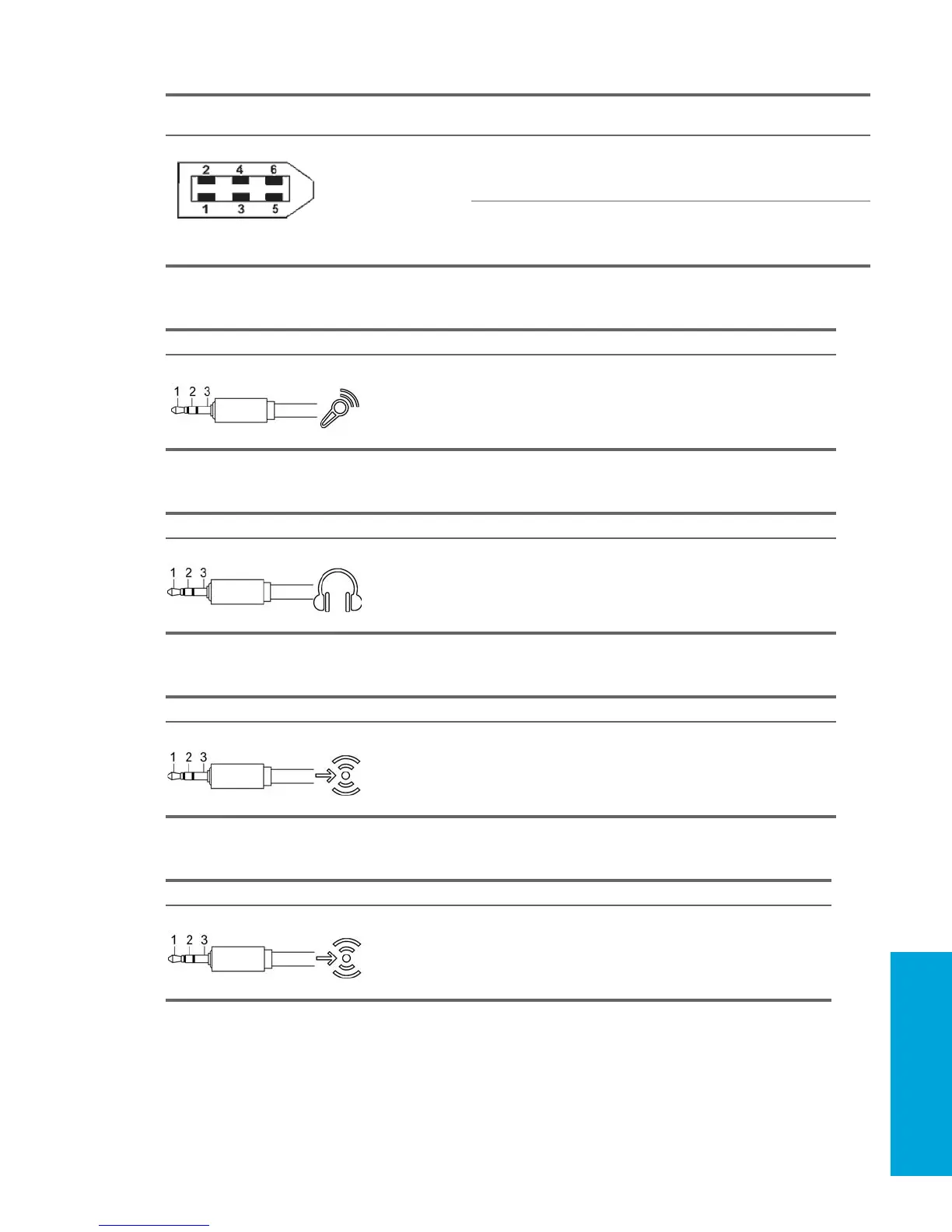

C.6 IEEE 1394
C.7 Microphone
C.8 Headphone
C.9 Line-in Audio
C.10 Line-out Audio
IEEE 1394 Connector
Pin
Signal
1power
2 gnd
3 tpb-
4 tpb+
5tpa-
6 tpa+
Microphone Connector (1/8 inch) Pin Signal
1 (Tip)
2 (Ring)
3 (Shield)
Audio
Power
Ground
Headphone Connector (1/8 inch) Pin Signal
1 (Tip)
2 (Ring)
3 (Shield)
Audio_Left
Audio_Right
Ground
Line-in Audio Connector (1/8 inch) Pin Signal
1 (Tip)
2 (Ring)
3 (Shield)
Audio_In_Left
Audio_In_Right
Ground
Line-out Audio Connector (1/8 inch) Pin Signal
1 (Tip)
2 (Ring)
3 (Shield)
Audio_Out_Left
Audio_Out_Right
Ground
