Removal and Replacement Procedures90
4.30 Processor
To remove the processor:
1. Disconnect power from the system (section 4.2), open the access panel (section 4.9), and remove the CPU
heatsink (section 4.29).

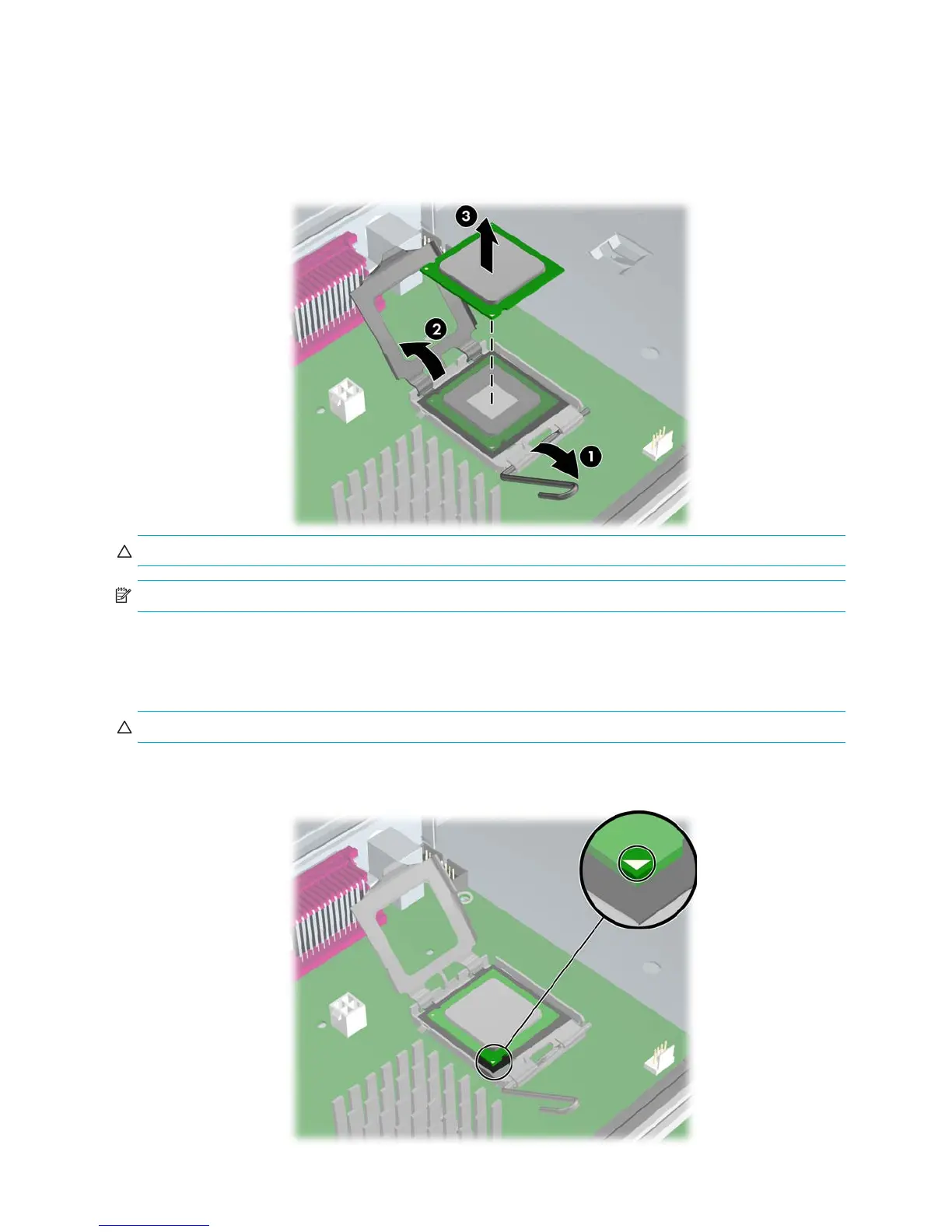

2. Raise the lever 1 on the processor socket handle and open the cover 2.
3. Pull the processor 3 straight out of the socket.
CAUTION: Avoid bending the protrusions in the CPU socket. This mishandling can damage the CPU socket.
NOTE: Store the processor in a safe place where it will not be damaged.
To replace the processor:
1. Disconnect power from the system (section 4.2), open the access panel (section 4.9), remove the CPU heatsink
(section 4.29), and remove the processor (section 4.30).
2. Raise the processor socket handle fully (the full swing angle of the lever is approximately 90 degrees).
CAUTION: Processor pins are delicate and bend easily. Use extreme care when placing the processor in the socket.
3. Line up the triangle on the top of the processor with the triangle on the corner of the processor socket and install
the processor into the socket. Ensure that the underside of the processor is level with the top of the processor
socket. Lightly press down on the top of the processor while closing the socket lever.
