Removal and Replacement Procedures56
4.3.2 System Board Architecture

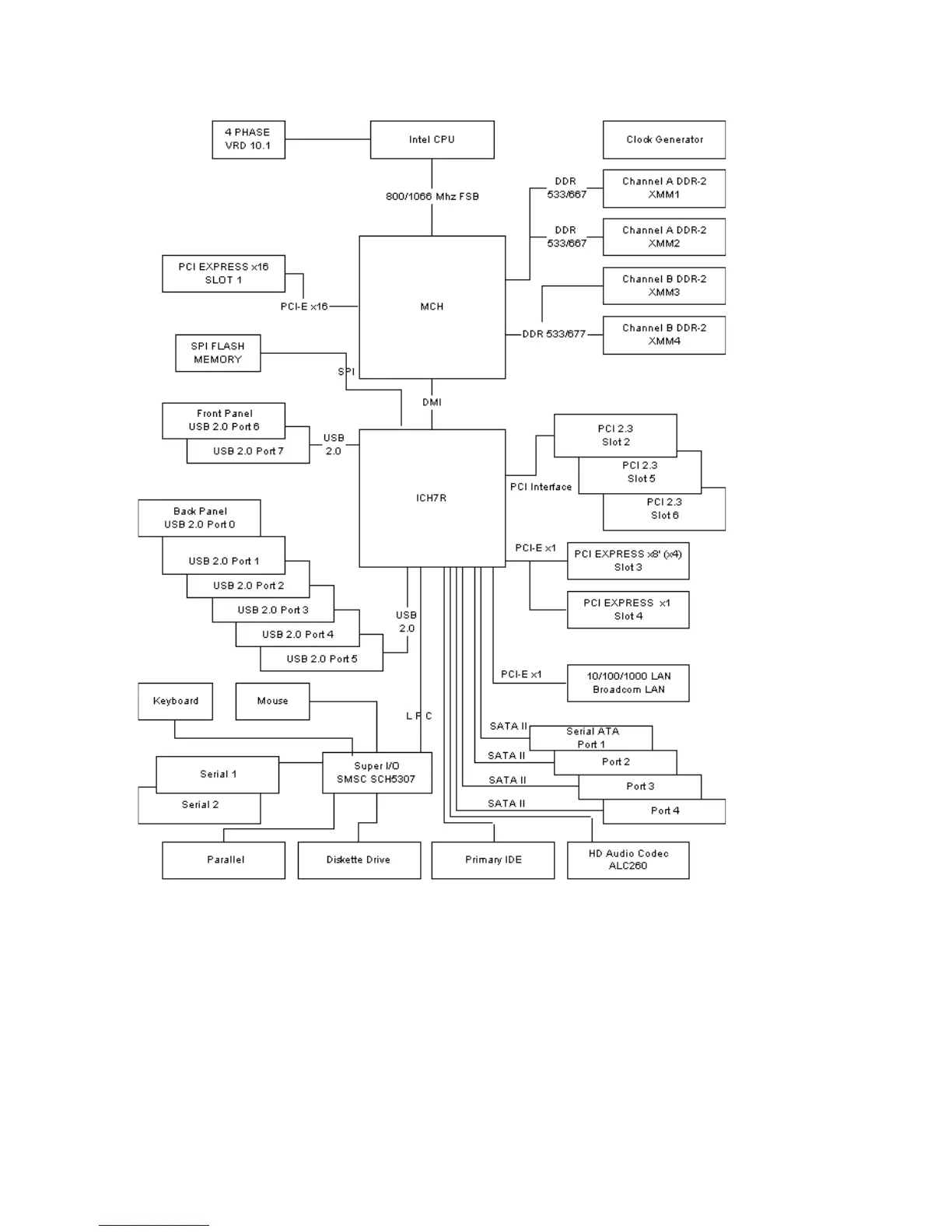

The following illustration shows the HP xw4300 Workstation block diagram.
