Removal and Replacement
Procedures
77

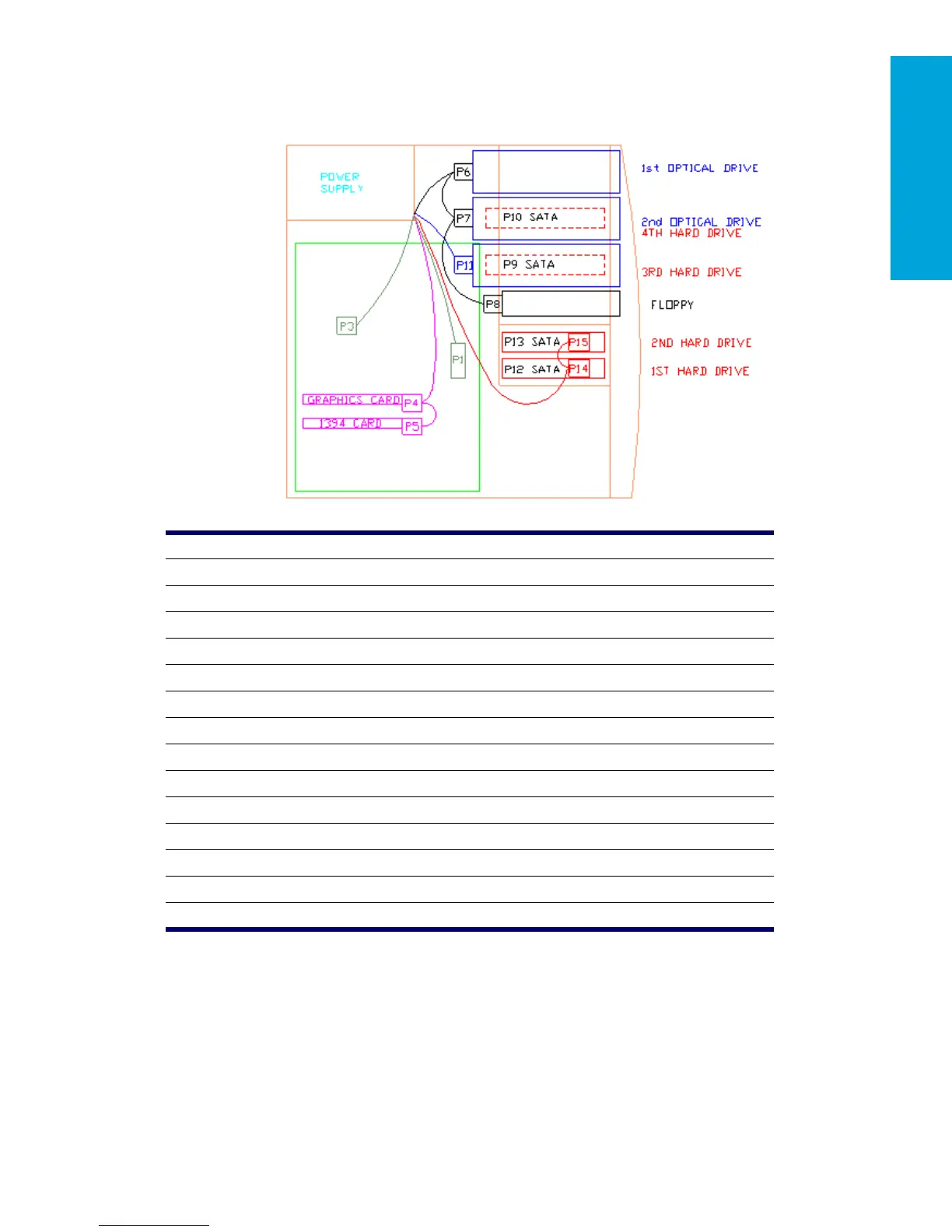

4.23 Power Connections
For help in identifying power cables, refer to the following information. Route or tie cables so that there is no possible
way for them to interfere with the CPU heatsink fan.
Table 4-11 Power Connections
P1 Main power on system board
P2 N/A
P3 CPU power
P4 PCI Express graphics auxiliary
P5 PCI (e.g. 1394) auxiliary
P6 ODD IDE top bay
P7 ODD IDE mid bay
P8 FDD
P9 3rd HDD SATA bottom ODD bay
P10 4th HDD SATA mid ODD bay
P11 ODD IDE or 3rd HDD SCSI ODD bottom bay
P12 1st HDD SATA bottom HDD bay
P13 2nd HDD SATA top HDD bay
P14 1st HDD SCSI bottom HDD bay
P15 2nd HDD SCSI top HDD bay
