HP xw4300 User Manual

Connector Pins136

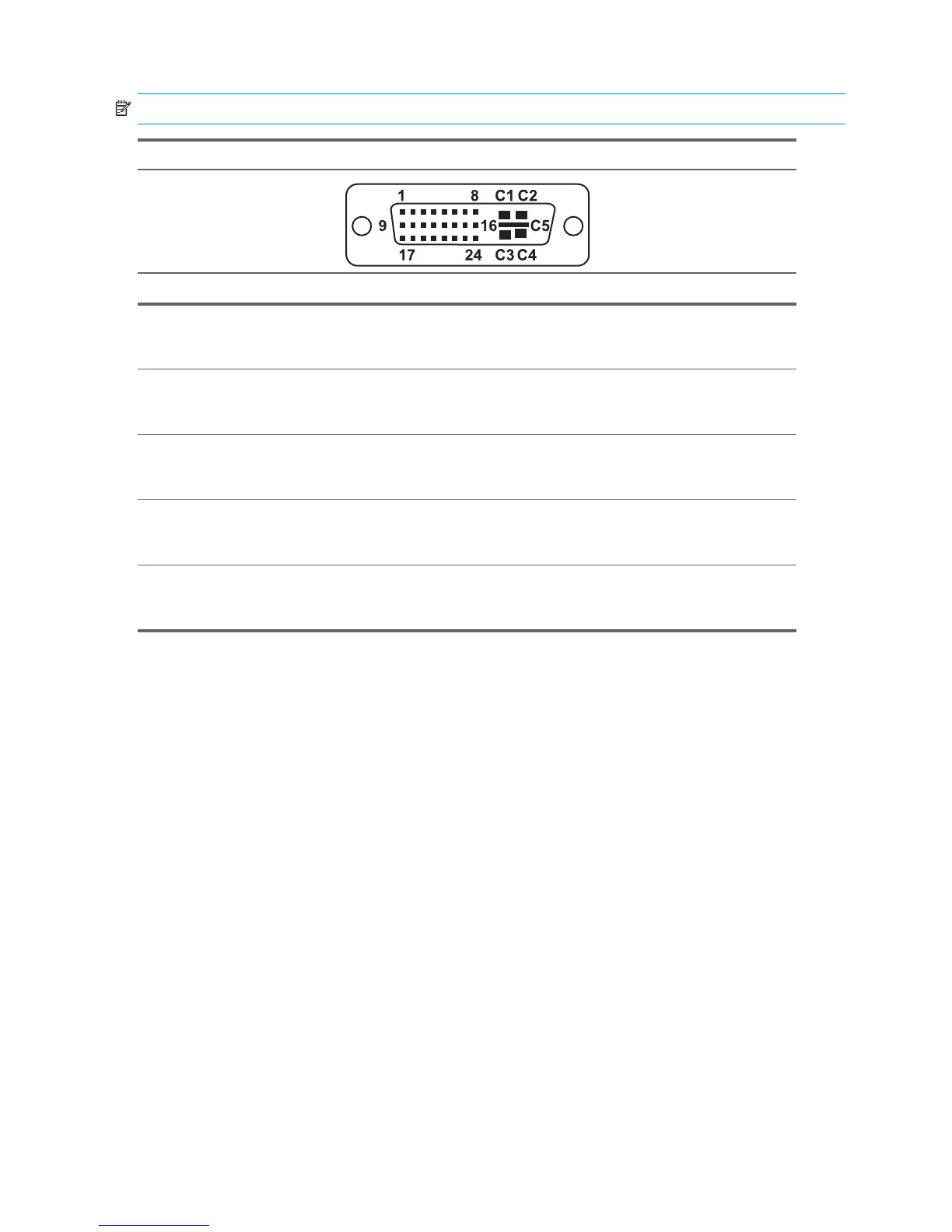

C.14 Monitor (DVI)
NOTE: Monitor connectors can vary depending on your configuration.
DVI Connector
Pin Signal Pin Signal
1 T.M.D.S DATA 2- 16 HOT PLUG DETECT
2 T.M.D.S DATA 2+ 17 T.M.D.S DATA 0-
3 T.M.D.S DATA 2/4 SHIELD 18 T.M.D.S DATA 0+
4 T.M.D.S DATA 4- 19 T.M.D.S DATA 0/5 SHIELD
5 T.M.D.S DATA 4+ 2 0 T.M.D.S DATA 5-
6 DDC CLOCK 21 T.M.D.S DATA 5+
7 DDC DATA 22 T.M.D.S CLOCK SHIELD
8 ANALOG VERT. SYNC 23 T.M.D.S CLOCK+
9 T.M.D.S DATA 1- 24 T.M.D.S CLOCK-
10 T.M.D.S DATA 1+ C1 ANALOG RED
11 T.M.D.S DATA 1/3 SHIELD C2 ANALOG GREEN
12 T.M.D.S DATA 3- C3 ANALOG BLUE
13 T.M.D.S DATA 3+ C4 ANALOG HORZ SYNC
14 +5V POWER C5 ANALOG GROUND
15 GND
