4.13 Bezel Blanks
To remove the bezel blank:
1. Disconnect power from the system (section 4.2), open the access panel (section 4.9), and remove the front bezel
(section 4.12).

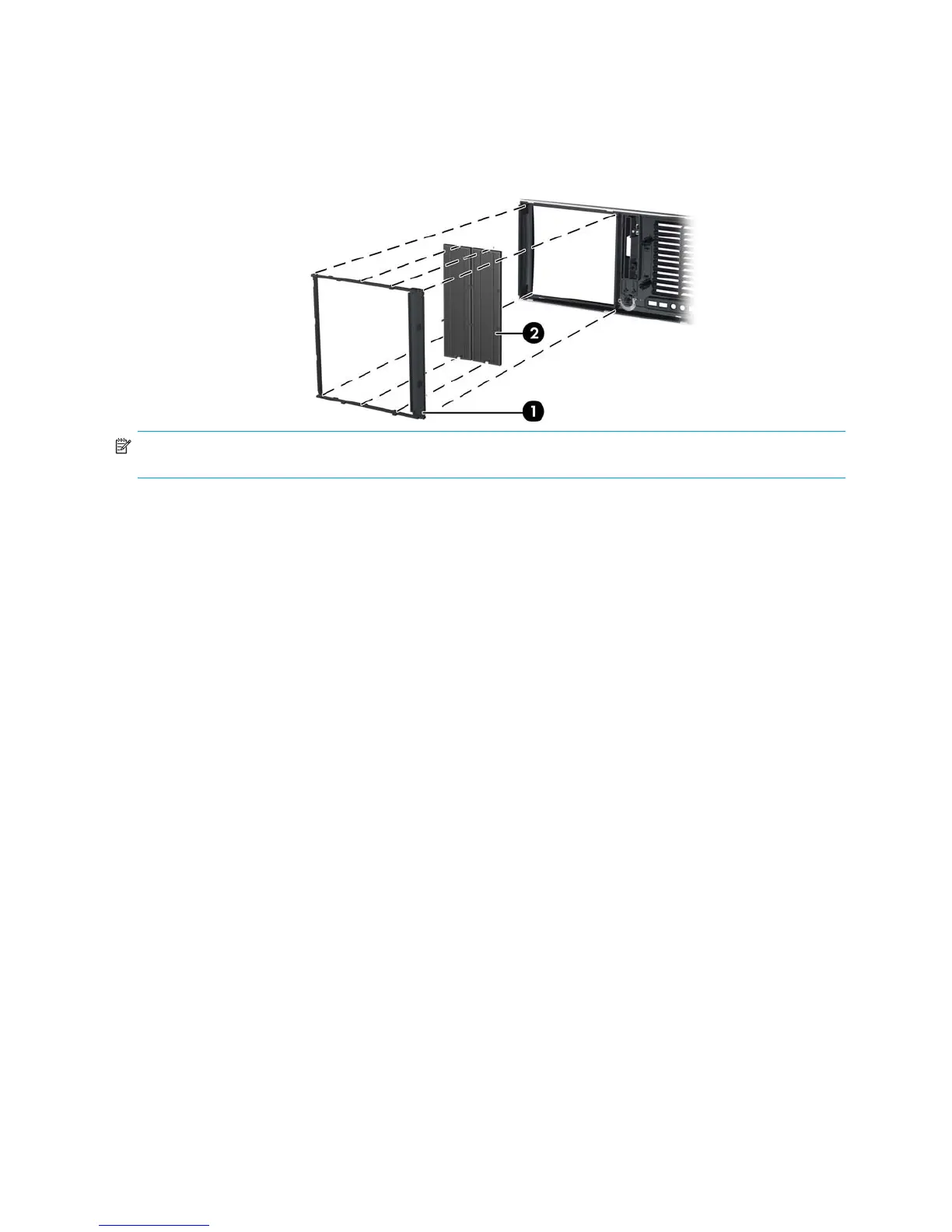

2. Gently push the subpanel 1 out the back of the front bezel.
3. Remove the desired bezel blank by applying outward pressure on the subpanel 1 and pulling the blank 2 away.
NOTE: The bezel blanks are keyed to assist you in replacing the blanks. Also, the subpanel can be rotated 90 degrees
to install the optical drives in desktop orientation, if desired.
