Removal and Replacement
Procedures
73
4.20.4 PCI

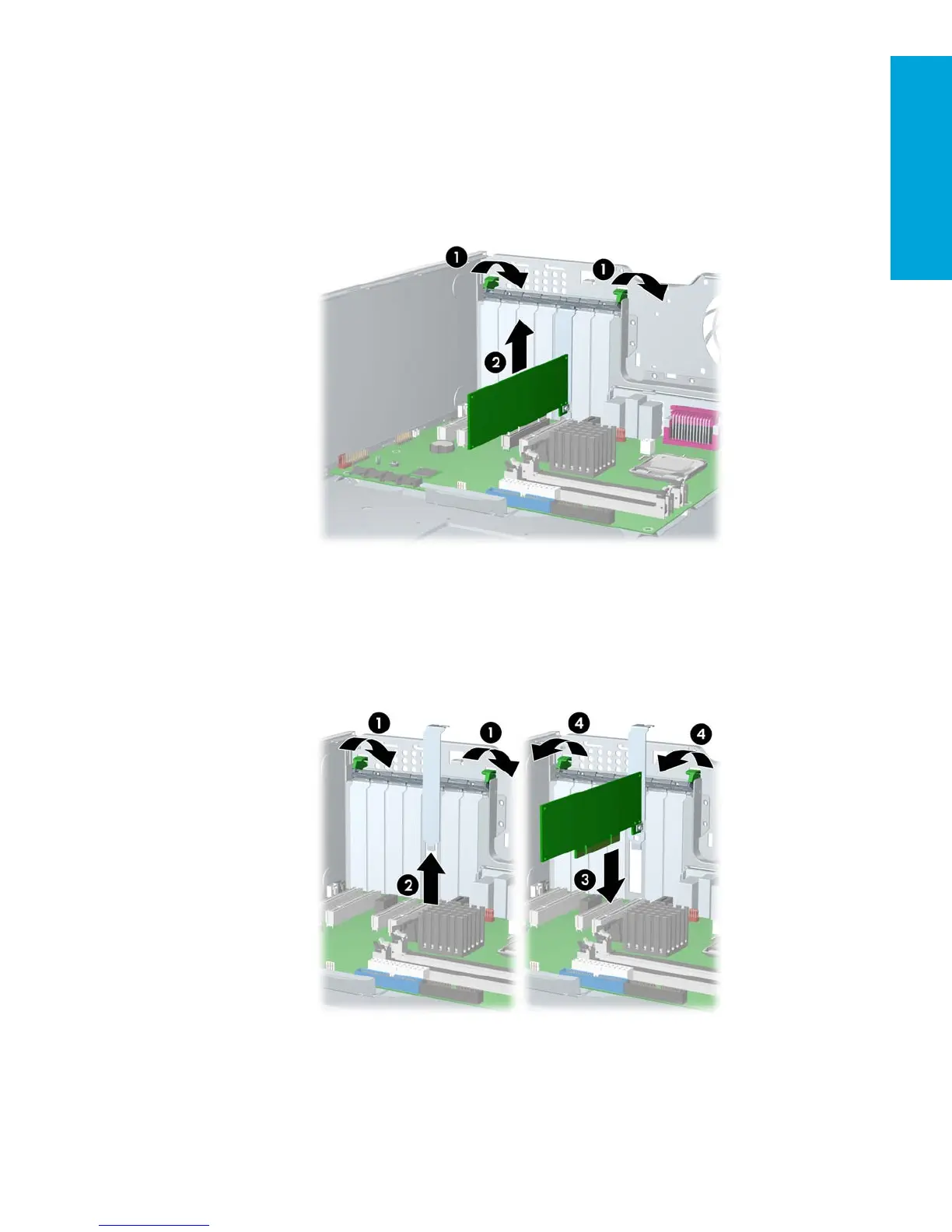

To remove a PCI card:
1. Disconnect power from the system (section 4.2), open the access panel (section 4.9) and remove the PCI card
support (section 4.20.2), if installed.
2. Lift the PCI levers 1 by first pressing down and then up.
3. Lift the PCI card 2 out of the chassis. Store the card in an anti-static bag.
4. Install a PCI slot cover and close the PCI levers. If the PCI levers do not close, be sure all cards are properly
seated and then try again.
To install a PCI card:
1. Disconnect power from the system (section 4.2), open the access panel (section 4.9) and remove the PCI card
support (section 4.20.2), if installed.
2. Lift the PCI levers 1 by first pressing down and then up.
3. Remove the PCI slot cover 2.
4. Lower the PCI 3 card into the chassis. Verify that the keyed components of the card align with the socket.
5. Close the PCI levers 4. If the PCI levers do not close, be sure all cards are properly seated and then try again.
