HP xw4300 - Rear Panel Components

Product Overview16
1.1.3 Rear Panel Components

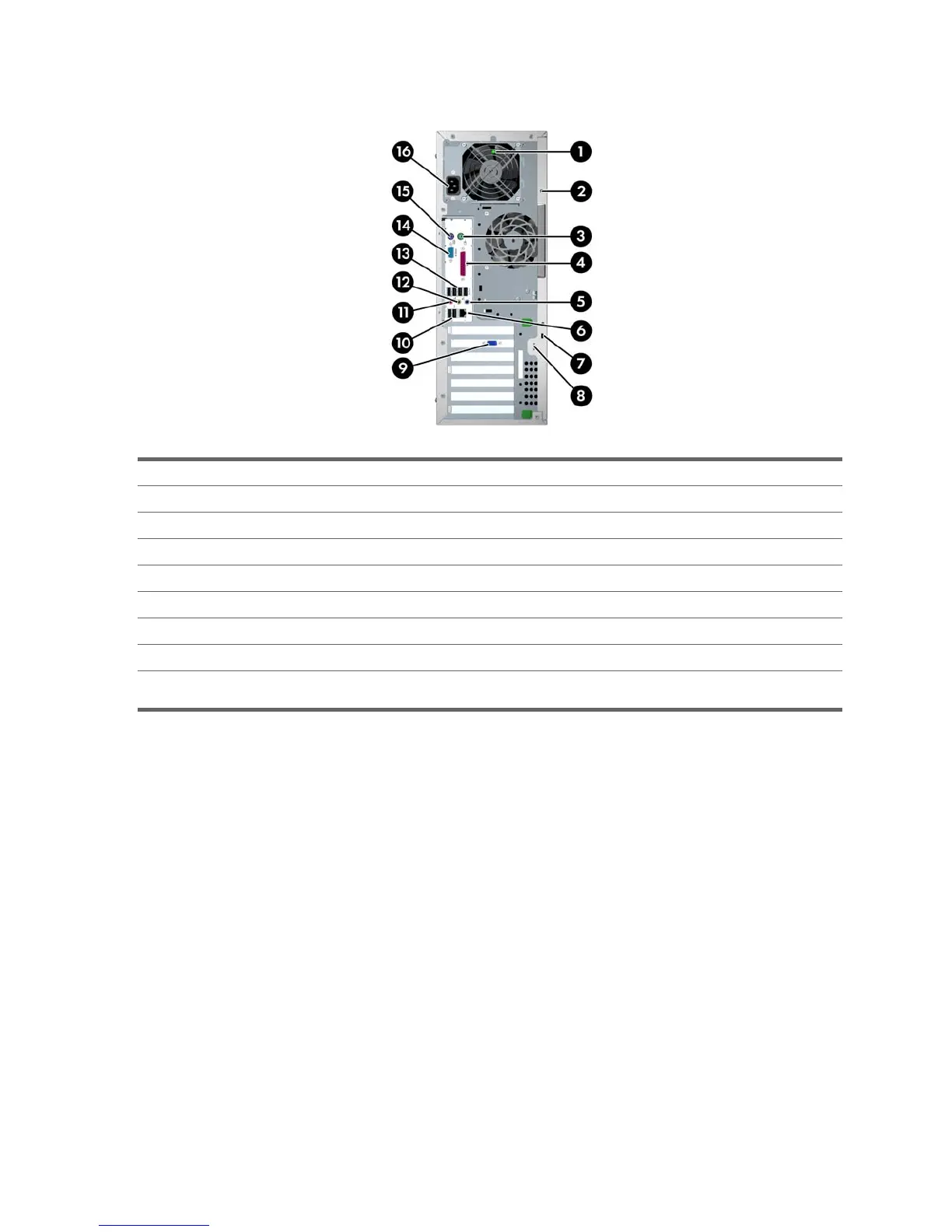

The following illustration shows a typical HP xw4300 Workstation.
Table 1-3 Rear Panel Components
1
Power Supply Built-In Self Test (BIST) LED
9
Graphics Adapter
2
Universal Chass Clamp Opening
:
Universal Serial Bus 2.0 (USB) (x2)
3
PS/2 Mouse Connector (green)
;
Microphone Connector (pink)
4
Parallel Connector (burgundy)
<
Audio Line-Out Connector (lime)
5
Audio Line-In Connector (light blue)
=
Universal Serial Bus 2.0 (USB) (x4)
6
RJ-45 Network Connector
>
Serial Connector (teal)
7
Cable Lock Slot
?
PS/2 Keyboard Connector (purple)
8
Padlock Loop
@
Power Cord Connector
NOTE: To assist you in connecting your peripheral devices, the rear panel connectors are labeled and color-coded according to
industry standards.
