Product Overview14
1.1 Product Features
This section contains the following information:
Section 1.1.1 “Exploded View”
Section 1.1.2 “Front Panel Components
Section 1.1.3 “Rear Panel Components
1.1.1 Exploded View

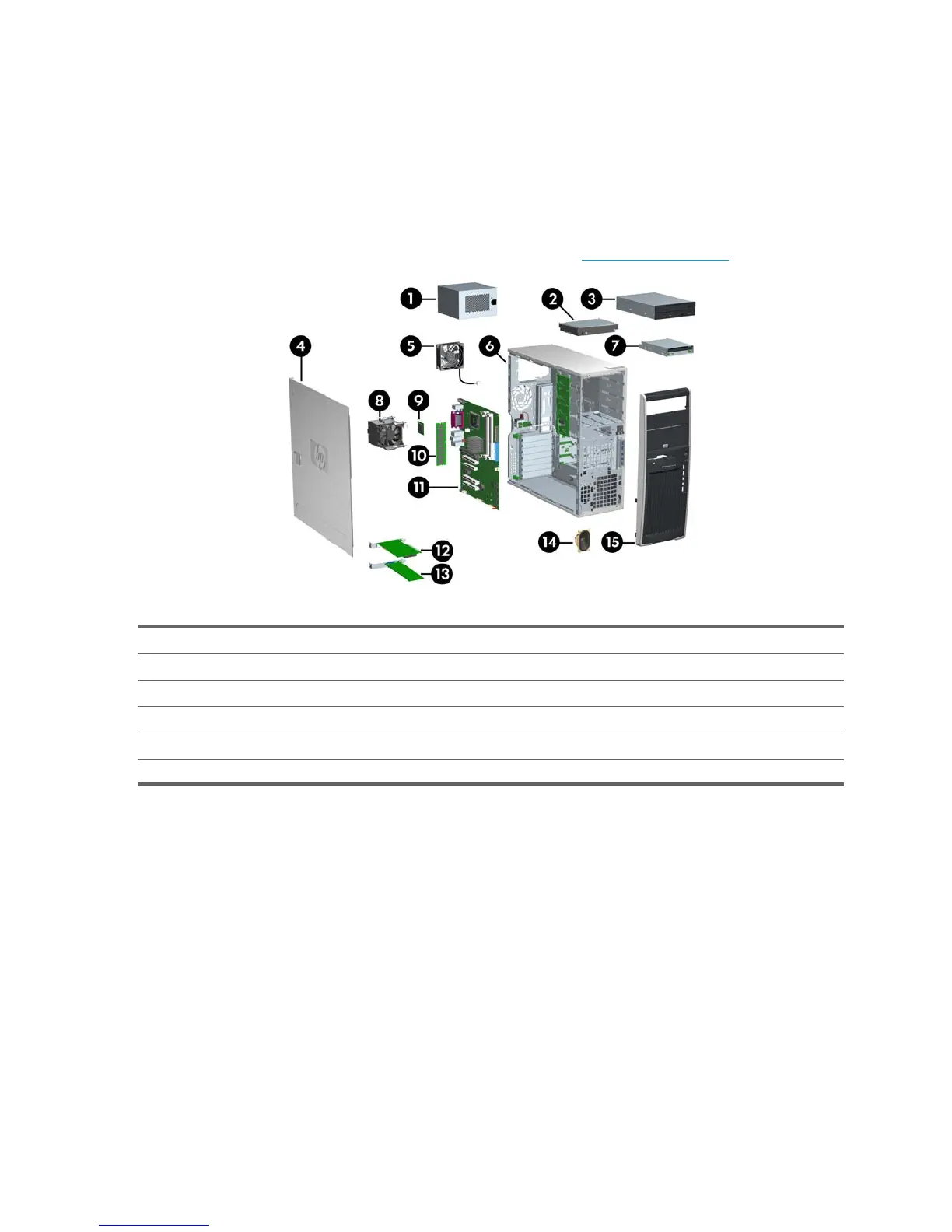

The following illustration shows a typical HP xw4300 Workstation (drive configurations can vary).
For complete information on supported accessories and components, visit http://partsurfer.hp.com
.
Table 1-1 Exploded View
1
Power Supply
6
Chassis
q
System Board
2
Hard Drive
7
Diskette Drive
<
PCI Express Card
3
Optical Drive*
8
CPU Heatsink
=
PCI Card
4
Access Panel
9
Processor
>
Speaker
5
System Fan
:
Memory Module
?
Front Bezel
*An optical drive is a CD-ROM, CD-RW, CD-RW/DVD-ROM, or DVD±RW combo drive.
