Removal and Replacement Procedures64
4.15 Power Button

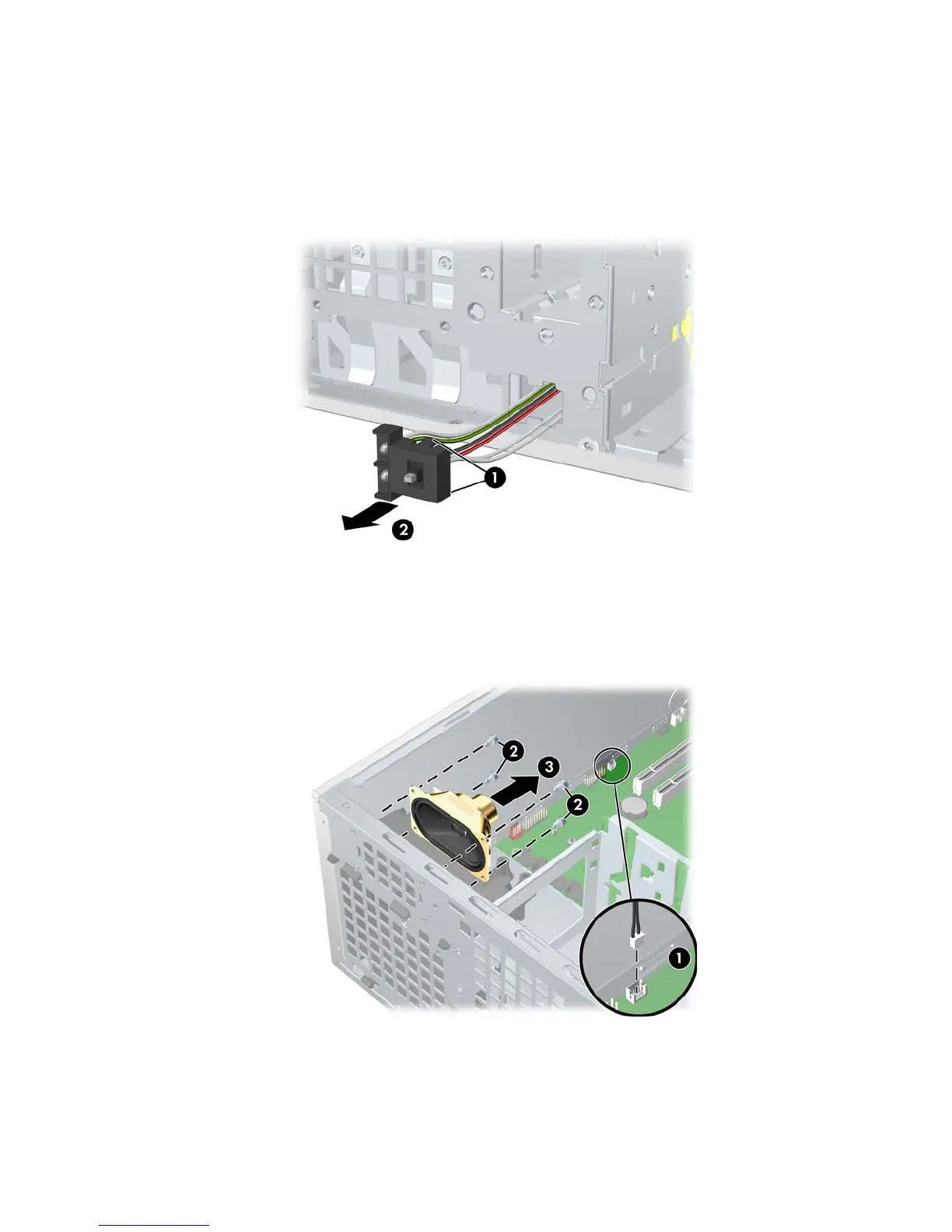

To remove the power button:
1. Disconnect power from the system (section 4.2), open the access panel (section 4.9), remove the front bezel
(section 4.12), and remove the front panel I/O device assembly (section 4.14).
2. Disconnect the power button cable from the system board.
3. Press in on the clips that secure the power button to the chassis.
4. Dislodge the metal clip from the chassis by rocking the power button back and forth. Then slide the power button
assembly 2 out from the front of the chassis.
4.16 System Speaker
To remove the speaker:
1. Disconnect power from the system (section 4.2) and open the access panel (section 4.9).
2. Disconnect the speaker cable 1 from the system board.
3. Remove the four screws 2 securing the speaker to the chassis and lift the speaker out of the chassis.
