HP xw4300 User Manual

Connector Pins
135
C.12 SATA
C.13 Monitor (VGA)
NOTE: Monitor connectors can vary depending on your configuration.
37 SPINDLE SYNC 77 ACTIVE LED OUT
38 RMT_START 78 DLYD_START
39 SCSI ID (0) 79 SCSI ID (1)
40 SCSI ID (2) 80 SCSI ID (3)

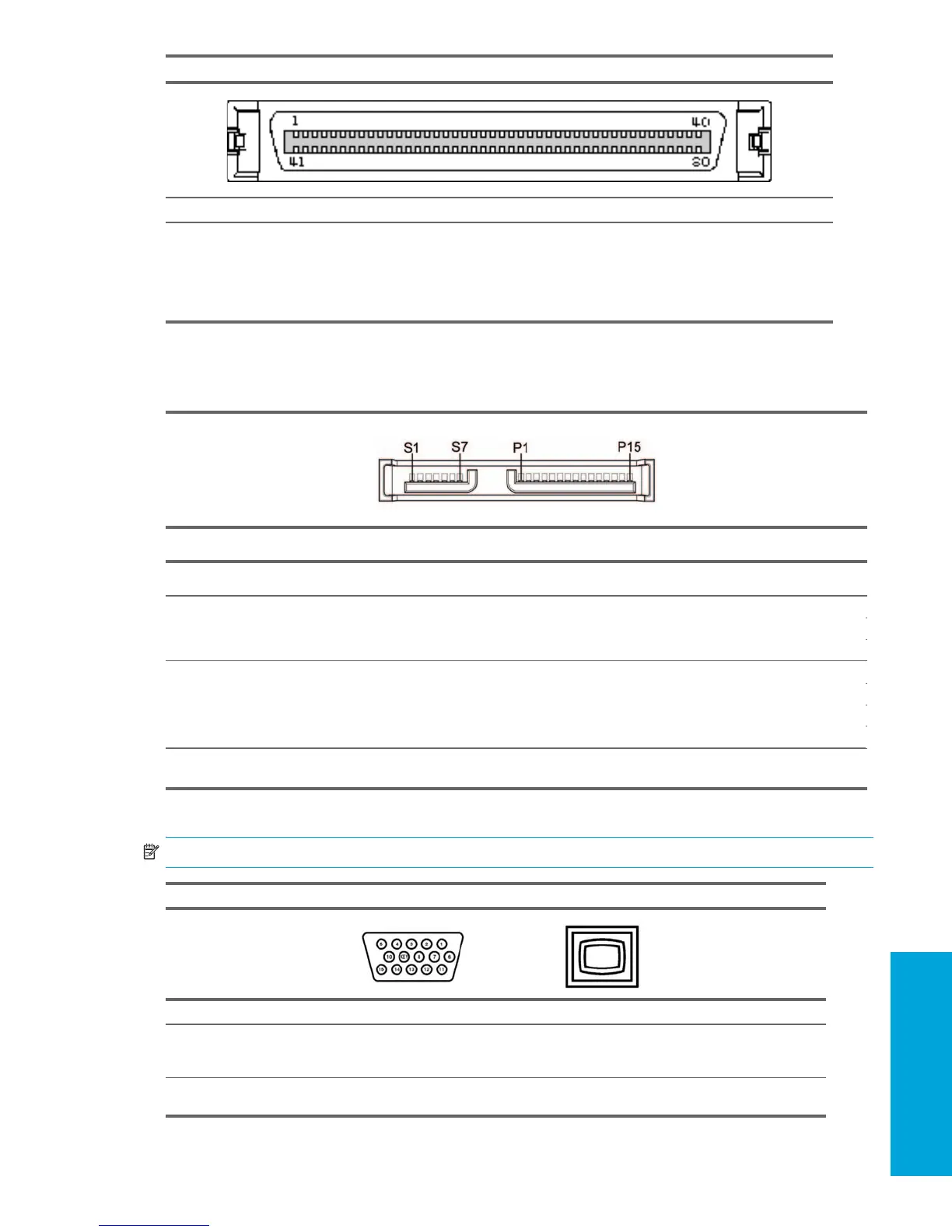

Ultra SCSI 80-pin connector
Pin Signal Pin Signal
SATA Connector
Pin Signal Pin Signal Pin Signal
Data Cable Power Cable Power Cable
S-1 Ground P-1 3.3-V power P-8 5-V power
S-2* A+ P-2 3.3-V power P-9 5-V power
S-3* A- P-3 3.3-V power P-10 Ground
S-4 Ground P-4 Ground P-11 Reserved
S-5** B- P-5 Ground P-12 Ground
S-6** B+ P-6 Ground P-13 12-V power
S-7 Ground P-7 5-V power P-14 12-V power
* S2 and S3 differential signal pair
**S5 and S6 differential signal pair
P-15 12-V power
VGA Connector
Pin Signal Pin Signal Pin Signal
1
2
3
Red Analog
Green Analog
Blue Analog
6
7
8
Ground
Ground
Ground
11
12
13
Monitor ID
DDC Serial Data
Horizontal Sync
4
5
Monitor ID
Ground
9
10
+5V DC
Ground
14
15
Vertical Sync
DDC Serial Clock
