Huawei FusionModule2000 Product Description

FusionModule2000 Smart Modular Data Center
Product Description
5 Power Supply and Distribution System
Issue 06 (2020-05-21)
Copyright © Huawei Technologies Co., Ltd.
36
Port
Silk Screen
Description
voltage.
DO_4
NO
DO_4 is used to output alarms and indicates battery
mode by default. It can be set to indicate critical
alarms, minor alarms, bypass mode, or low battery
voltage.
COM
DB26
MDU
Provides FE, RS485, I2C, and CAN signals.
Battery
temperature sensor
port
B_TEMP
Connects to an indoor battery temperature sensor.
Southbound
communications
port 1
COM1

Supported protocol: Modbus-RTU.

Connects to an ambient temperature and
humidity sensor over two wires.
Southbound
communications
port 2
COM2

Supported protocol: Modbus-RTU.

Connects to a southbound device.
Network port
FE

Supported protocols: Modbus-TCP, HTTPS, and
SNMP.

Connects to the network port on a PC.
Northbound
communications
port
RS485

Supported protocol: Modbus-RTU.

Connects to a northbound network management
device over two wires.

Signal cables must be double-insulated twisted cables. If the cable length is 25–50 m, the
cross-sectional area must be 0.5–1.5 mm
2
.

RS485 cables and FE cables must be shielded cables.

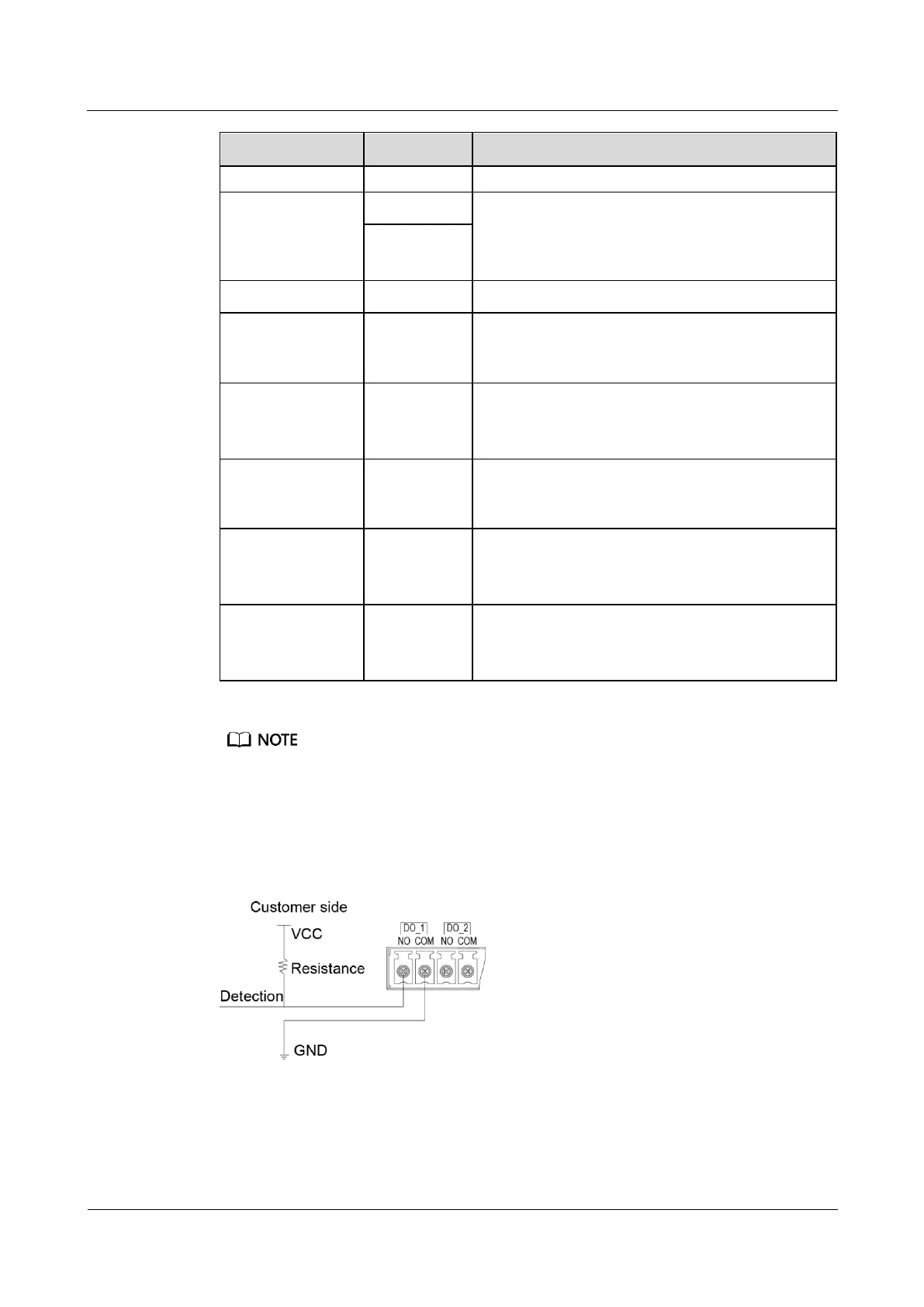

Figure 5-29 and Figure 5-30 are recommended wiring methods for DO ports.
Figure 5-29 Wiring method 1
