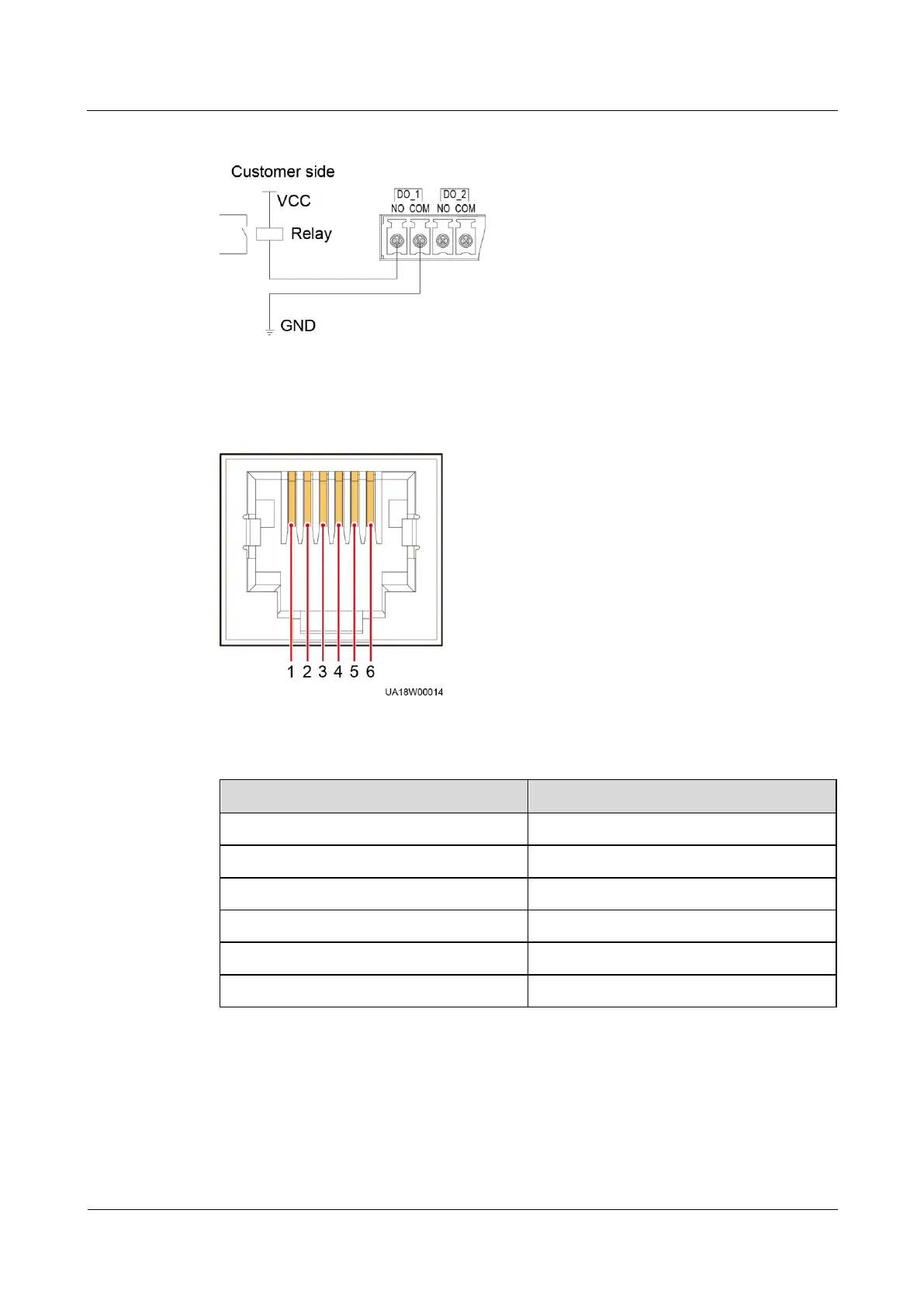

Figure 5-30 Wiring method 2
Figure 5-31 and Table 5-7 describe the COM1 pin definitions.
Figure 5-31 COM1 pins
Table 5-7 COM1 pin definition
Pin
Description
1
GND
2
N/A
3
RS485-
4
RS485+
5
N/A
6
12V_PORT
Figure 5-32 and Table 5-8 describe the COM2 pin definitions.
