Do System Tests to Identify Defective Components
5
102 810430 Troubleshooting Guide Powermax65/85/105 SYNC
Test 7 – Start signal
Use this test if you fire the torch but there is no plasma arc.
Test 7 – Procedure for a hand torch
1. Make sure that the torch is set to the green “ready to fire” ( ) position.

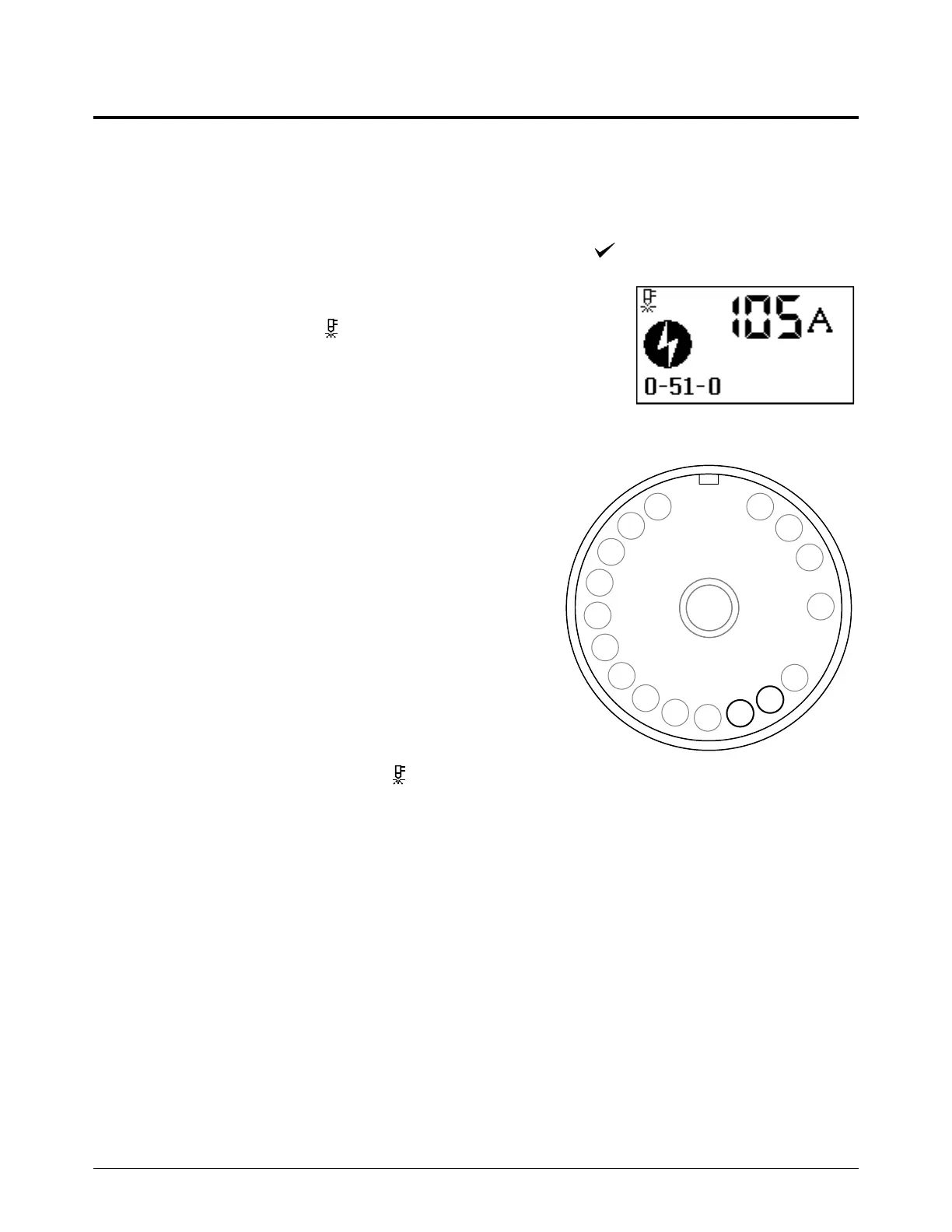

2. Look at the main screen as you set the power switch on
the plasma power supply to ON (I). Do you see the
“torch started” icon ( ) and the 0-51-0 fault code?
 If yes, continue with the next step.
 If no, continue with step 5.
3. Disconnect the torch from the plasma power supply.
4. Make sure that the torch trigger is not being
pulled, and measure the resistance between
pin 6 and pin 7 in the torch connector. Is the
resistance very low?
 If yes, do a check for short circuits in the
torch lead. Replace the torch lead if the
wires in it are short-circuited.
 Also do a check for short circuits in the
trigger switch assembly. Replace the
trigger switch if it is short-circuited.
 If no, reconnect the torch to the plasma
power supply, and continue with the next
step.
5. Does the “torch started” icon ( ) show as you
fire the torch?
 If yes, continue with step 8.
 If no, disconnect the torch from the plasma power supply, and continue with the next step.
6. Measure the resistance between pin 6 and pin 7 in the torch connector while you are pulling the
torch trigger. Is the resistance very high?
 If yes, do a check for open circuits in the torch lead. Replace the torch lead if there are open
circuits.
 Also do a check of the trigger switch for open circuits. Replace the trigger switch if there
are open circuits.
 If no, continue with the next step.
BLK
BLK
1
2
3
4
5
BLU
6
VIO
7
ORG
8
BLK
9
BRN
10
GRY
11
YEL
12
WHT
13
RED
14
15
16
17
