Access Service Information and Settings
134 810430 Troubleshooting Guide Powermax65/85/105 SYNC
From the status screen you can access other screens that show system information and settings.

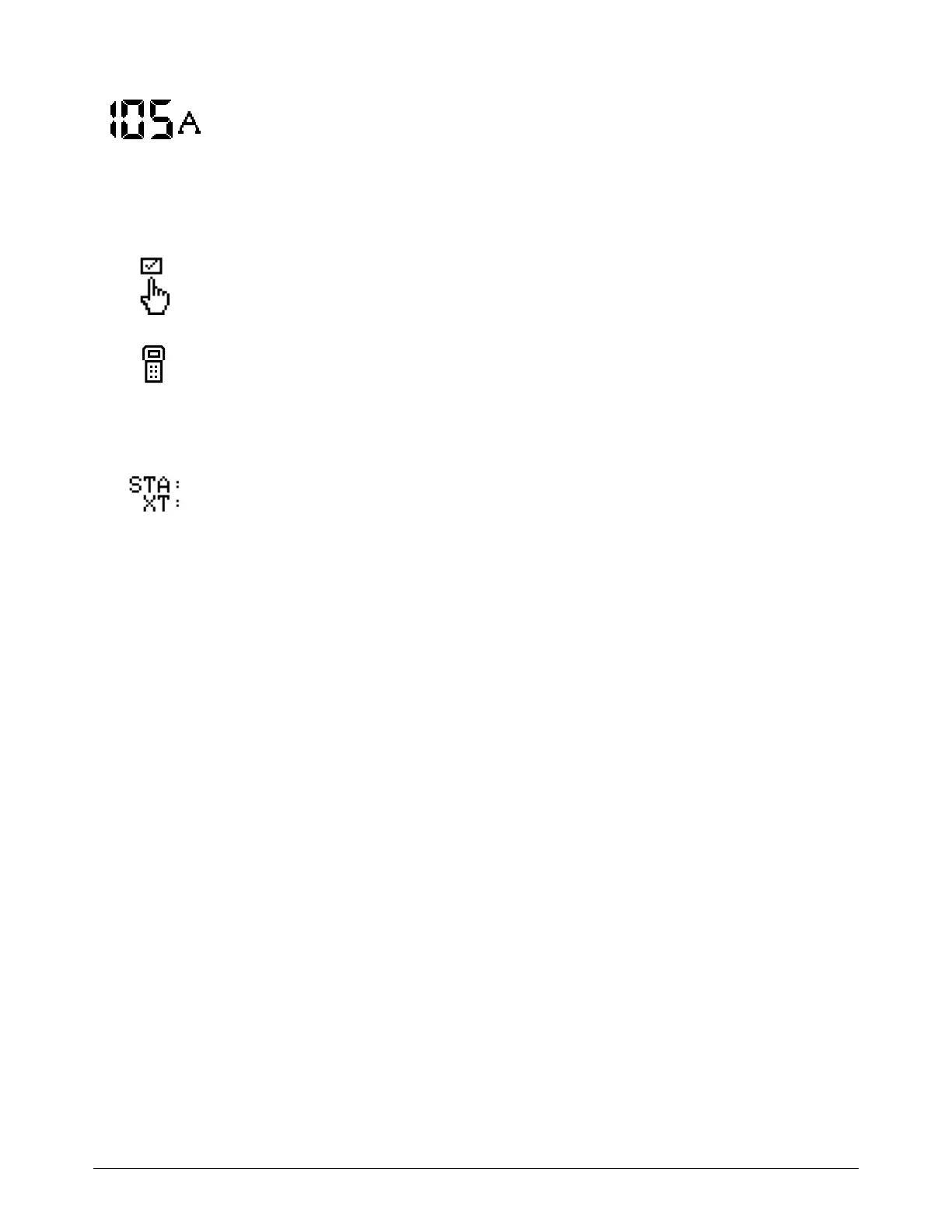

Current setting (amperage) – This is the current at which the plasma power supply
will cut or gouge, in amperage.
Use either the adjustment knob on the plasma power supply or the
amperage-adjustment control on the hand torch to change the output current.
Installing a Hypertherm cartridge of a different amperage also changes the
current setting.
Non-default configuration – This icon shows that at least one default system setting
has been changed.
Remote control – This icon shows that a CNC or other controller is controlling the
plasma power supply. The front panel controls are disabled during remote mode
operation. But fault codes and fault icons still show as they would otherwise,
and you can go to the menu screens to see information about the plasma power
supply, torch, and cartridge.
Cartridge data – These fields show the total number of pilot arc starts (STA) and the
cumulative plasma arc transfer time (XT) for the life of the Hypertherm cartridge
that is installed on the torch. These fields do not show by default. Refer to
page 149.
