Do System Tests to Identify Defective Components

Powermax65/85/105 SYNC Troubleshooting Guide 810430 81

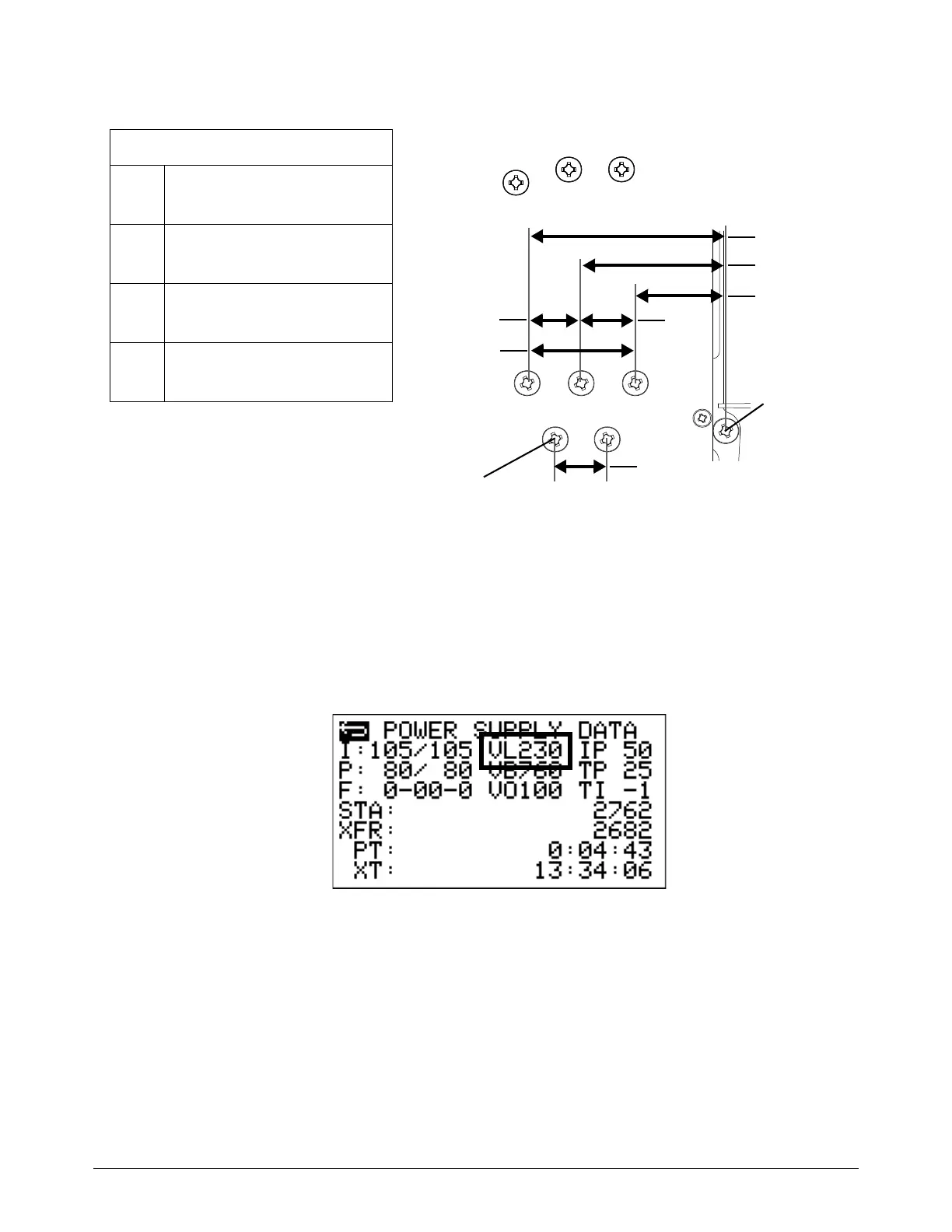

Figure 11 –Powermax105SYNC

5. If the diode bridge output value is correct, but you continue to get an 0-60-n fault code, do the

following:

a. Go to the POWER SUPPLY DATA screen.

b. Make sure that the value in the VL field is ±15% of the AC line voltage.

3-phase

Black (CSA)

Brown (CE/CCC)

White (CSA)

Black (CE/CCC)

Red (CSA)

Gray (CE/CCC)

Green (CSA)

Green/yellow (CE/CCC)

LV /1.73 2

Black wire

Ground

(GRD)

LV X

1.414

LV /1.73 2

LV = incoming line voltage
