Hypertherm XPR300 User Manual

Installation
3
132 809480 Instruction Manual XPR300
5. Make sure that the torch is level (at a 0° angle) in all directions, as shown in Figure 35. You can
use a digital level to measure alignment for standard-position cutting, marking, and piercing.

During bevel cutting, the torch is at an angle (not perpendicular) to the
workpiece. The torch position for XPR torches can range from 0° – 52°.
For information on bevel cutting, refer to Bevel cutting on page 218.
6. Remove the consumables, including the water tube, from the torch.

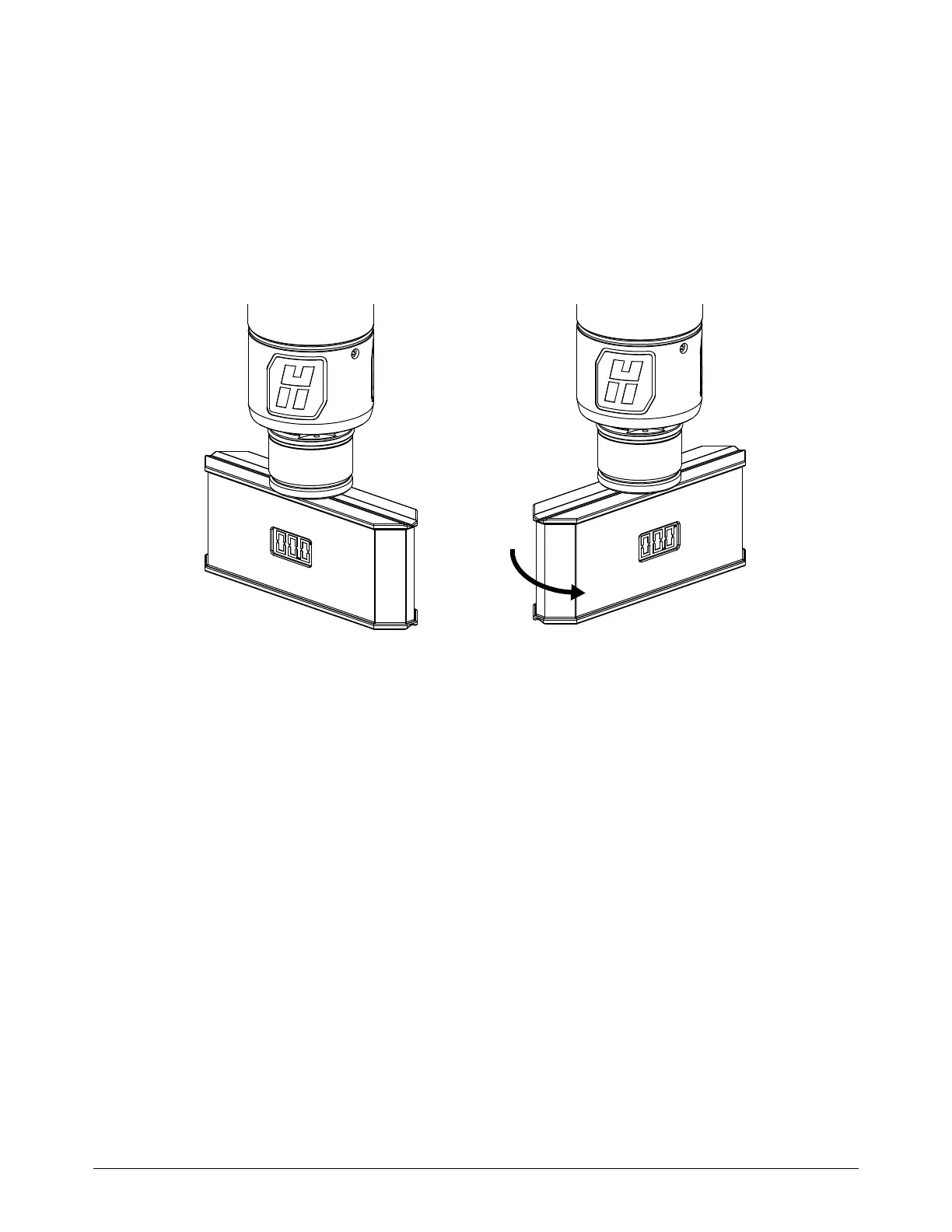

Figure 35 – Level the torch
7. Tighten the screws on the torch mounting bracket.

Hypertherm XPR300 Specifications

General

Cutting Current	300 A
Duty Cycle	100% at 300 A
Technology	X-Definition Plasma
Gas Supply	Oxygen, Nitrogen, Air
Cutting Capacity (Mild Steel)	38 mm (1.5 in)
Severance Capacity (Mild Steel)	75 mm (3 in)
Pierce Capacity (Mild Steel)	50 mm (2 in)
Input Voltage	200–480 V, 3-PH, 50/60 Hz
