Hypertherm XPR300 User Manual

Parts List
9
370 809480 Instruction Manual XPR300

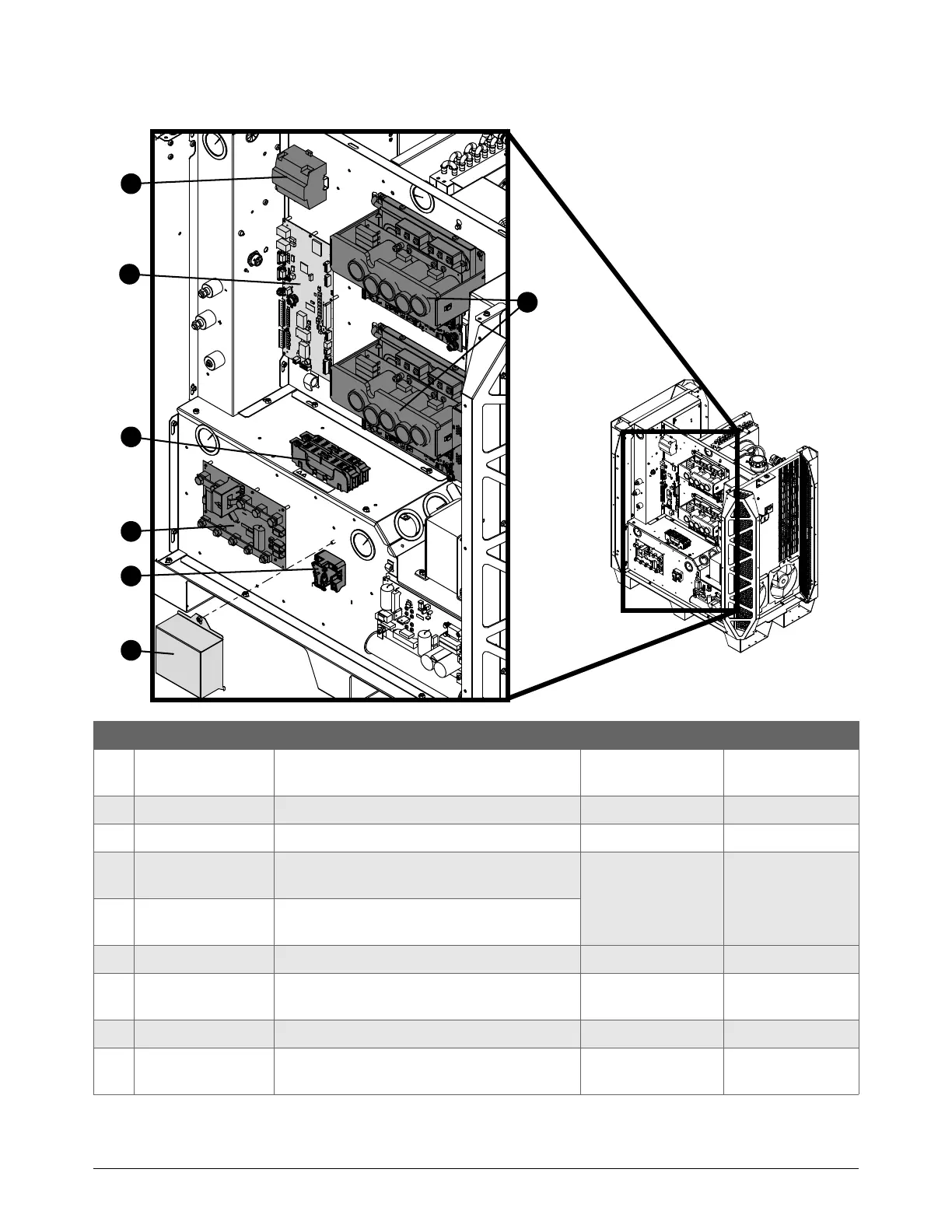

Control side – view 2
Part number Description Designator Quantity
1 229640
Power source: 88 VAC – 264 VAC to
24 VDC
PS1 1
2 428750 Control PCB PCB1 1
3 208394 Fuse holder: 2P, 30 A, 600 V – 1
208395
Fuse: 8 A, 600 V, Class R (used in 380 V,
400 V, 415 V, 440 V, 480 V, 600 V)
F1, F2 2
208397
Fuse: 15 A, 600 V, Class R (used in 200 V,
208 V, 220 V, 240 V)
4 141371 I/O PCB PCB5 1
5 003277
Pilot arc relay: 24 VDC, coil, 60 A 28 VDC
contacts
CR1 1
6 101316 Pilot arc relay cover – 1
7 229679 Chopper assembly
Chopper 1,
Chopper 2
2
3
4
1
2
5
6
7
