Hypertherm XPR300 User Manual

Parts List
9
380 809480 Instruction Manual XPR300

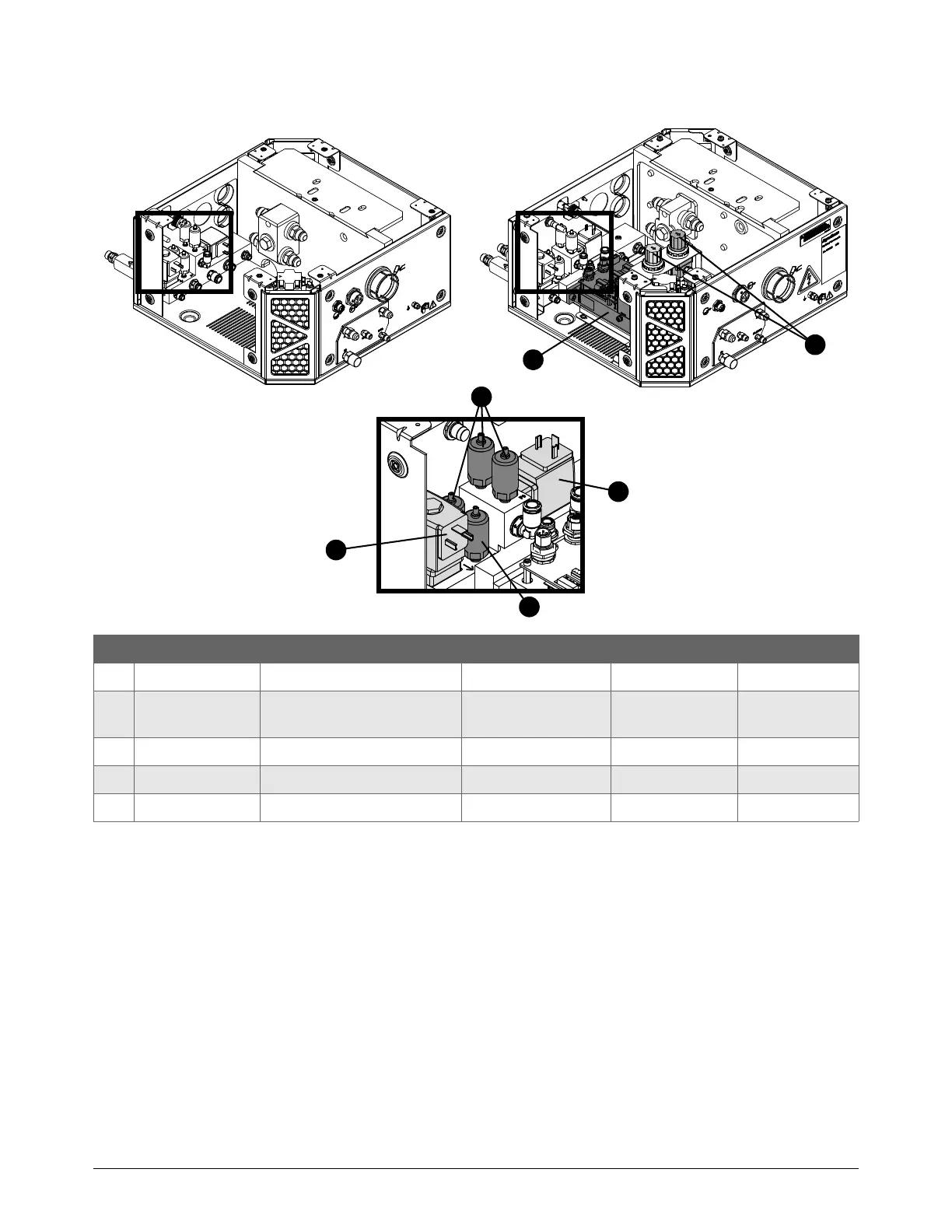

VWI and OptiMix gas connect console mixer, transducers, and valves
Part number Description Console Designator Quantity
1 229703 Mixer module OptiMix – 1
528057
Kit: Mixer module and cable
ties
OptiMix – 1
2 011101 Regulator OptiMix – 2
3 223398 Pressure transducer VWI and OptiMix P6 – P9 4
4 006167 Solenoid valve VWI and OptiMix B4, B5 2
VWI OptiMix
1
3
3
4
4
2

Hypertherm XPR300 Specifications

General

Cutting Current	300 A
Duty Cycle	100% at 300 A
Technology	X-Definition Plasma
Gas Supply	Oxygen, Nitrogen, Air
Cutting Capacity (Mild Steel)	38 mm (1.5 in)
Severance Capacity (Mild Steel)	75 mm (3 in)
Pierce Capacity (Mild Steel)	50 mm (2 in)
Input Voltage	200–480 V, 3-PH, 50/60 Hz
