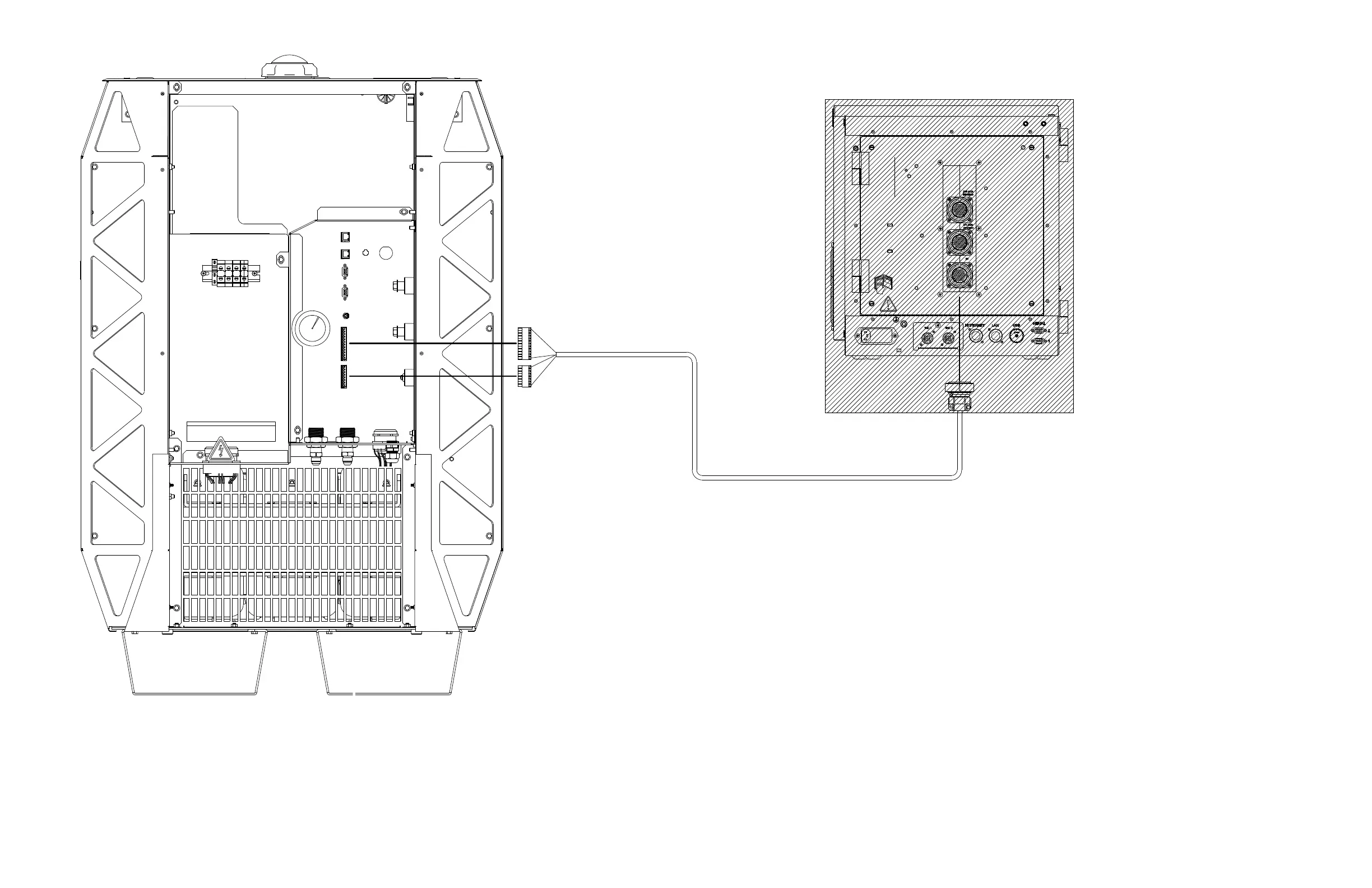

Discrete CNC connections (Sheet 21 of 22)
Discrete cable
Notes:
1. See the CNC documentation for installation and
connection details.
2. Torch height controller not shown. See the THC
documentation for voltage divider installation and
connection details.
013403
