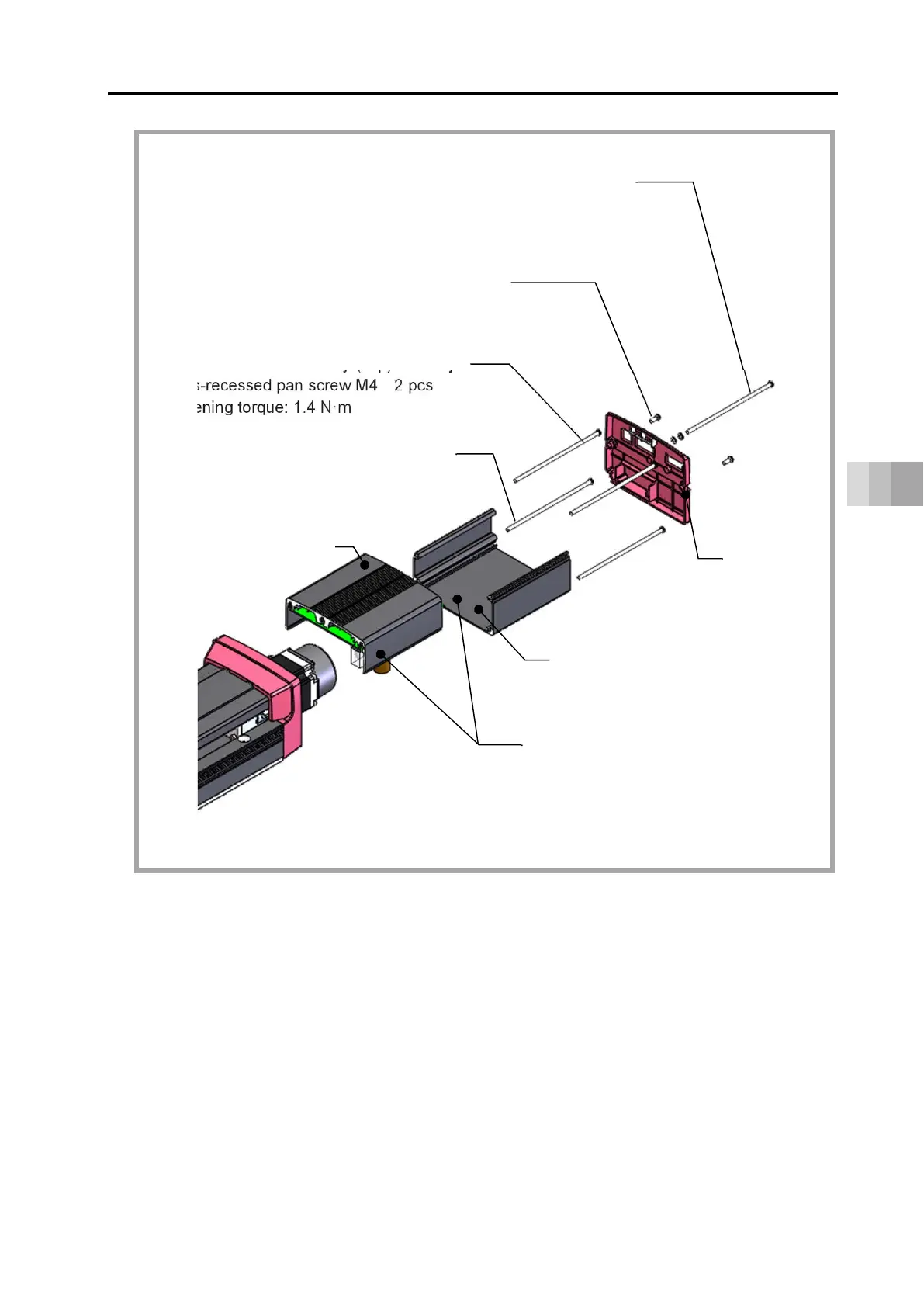

8.6 How to replace components
8-19
8. Maintenance and Inspection
[For grounding connection]
Cross-recessed pan screw M4 1 pc (for FG)
Tightening torque: 1.4 N·m
Spring washer / Plane washer 1pc each
[For end cover assembly fixation]
Cross-recessed tapping screw M4 2 pcs
Tightening torque: 0.8 N·m
[For motor cover assembly (Top) fixation]
Cross-recessed pan screw M4 2 pcs
Ti
g
htenin
g
tor
q
ue: 1.4 N·m
End cover
assembly
Motor cover
assembly (Top)
Motor cover assembly
Motor cover assembly (Bottom)
[For motor cover assembly (Bottom)
fixation]
Cross-recessed pan screw M4 2 pcs
Tightening torque: 1.4 N·m
