8.6 How to replace components
8-30
8. Maintenance and Inspection

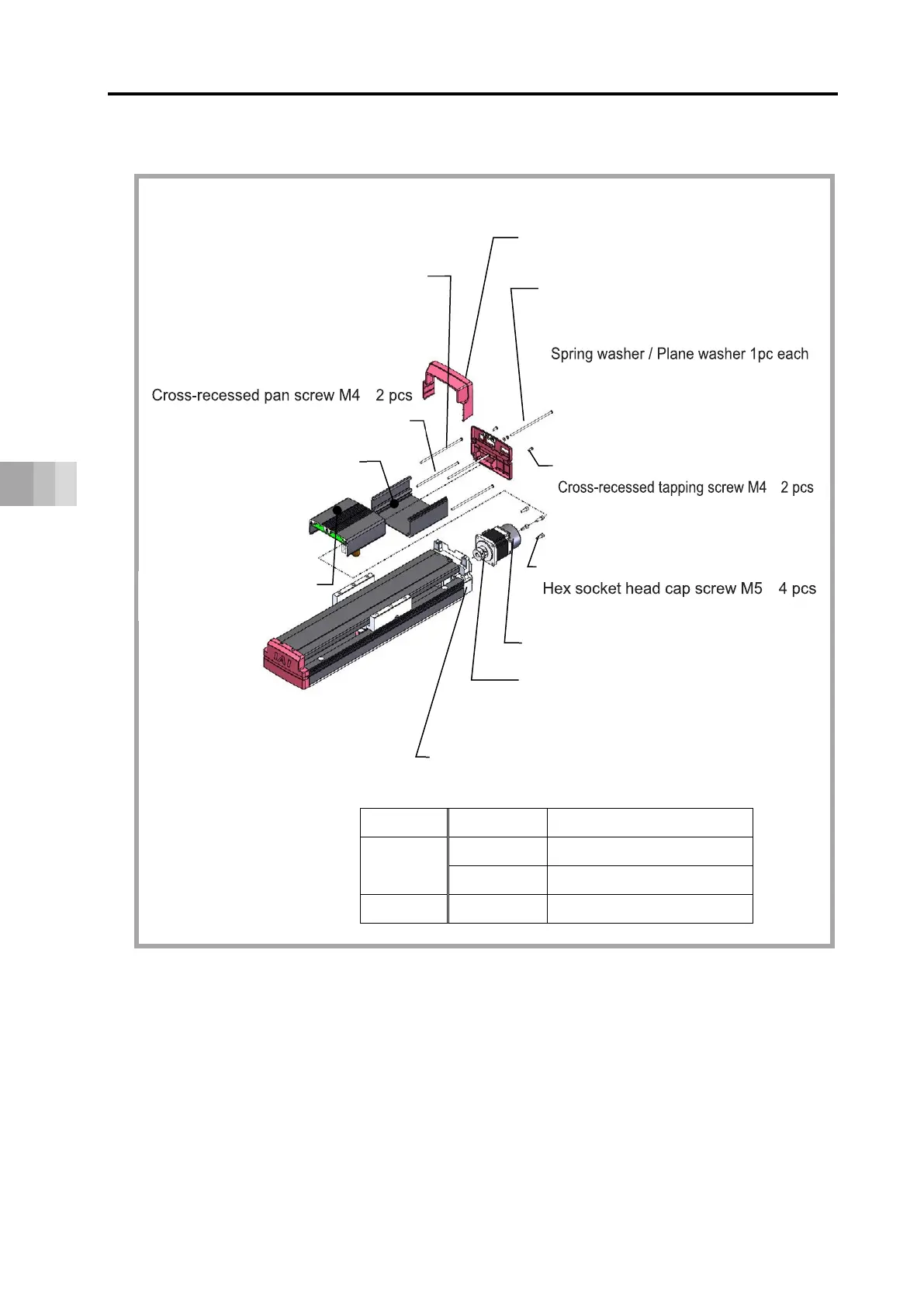

[Motor unit (Standard)]
Slider position for coupling installation
Type Lead Slider position [mm]
S13(X)
L 2
M, H, S 4
S15(X) L, M, H 4
[For grounding connection]
Cross-recessed pan screw M4 1 pc
Tightening torque: 1.4 N·m
[For motor cover (Top) fixation]
Cross-recessed pan screw M4 2 pcs
Tightening torque: 1.4 N·m
[For motor cover (Bottom) fixation]
Tightening torque: 1.4 N·m
Motor cover assembly
(Bottom)
[For end cover assembly fixation]
Tightening torque: 0.8 N·m
[For motor unit fixation]
Tightening torque: 3.4 N·m
[Coupling screw]
Hex socket head cap screw M3 1 pc
Tightening torque: S13(X) 2 N·m
S15(X) 4 N·m
Motor cover assembly
(Top)
Rear bracket cover
Motor unit (Standard)
Rear bracket
To Next Page
