8.6 How to replace components
8-29
8. Maintenance and Inspection
10) Mount the end cover.
For the wireless type, put on Wireless Cable [A] before attaching the end cover
assembly.
Pay attention to cables when putting on the the end cover so they will not be pinched
at the covers.
Caution
When conducting replacement of the motor unit for vertical installation, fix the slider in
advance to taking the motor off.
It is very risky if replacement of the motor unit is conducted without fixing the slider as the
slider could drop at the moment that the motor is taken off.

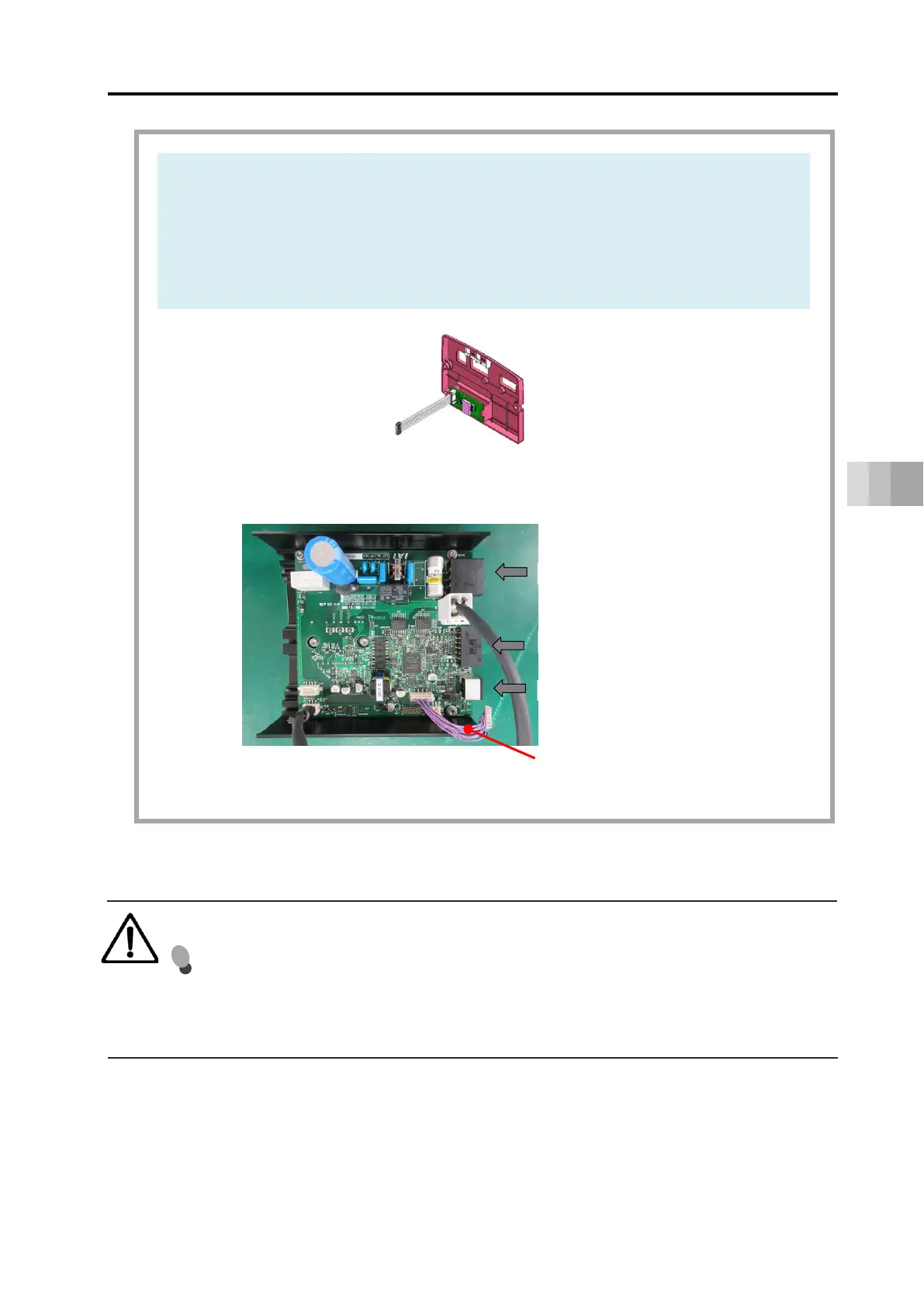

Power I/O connector
Wireless cable [A]
Teaching port
Motor power supply connector
Wireless cable [A]
<End cover assembly︓Wireless Type>
