8.6 How to replace components
8-37
8. Maintenance and Inspection
4) Attach a new cushion and put the cushion holding plate taken off in (3) back on.
● The cushion is in common for each place of of front bracket, rear bracket, support
bracket and slider.
● When applying, keep the cushion pressed while fixing to remove any clearance
between the cushion seating surface and the mating part. Also, confirm after
tightening the screws that the cushion is applied property without any warpage.
→ For how to apply cushion to each place, refer to Cushion Application to Front
Bracket and Rear Bracket, Cushion Application to Support Bracket and Cushion
Application to Slider in the following pages.

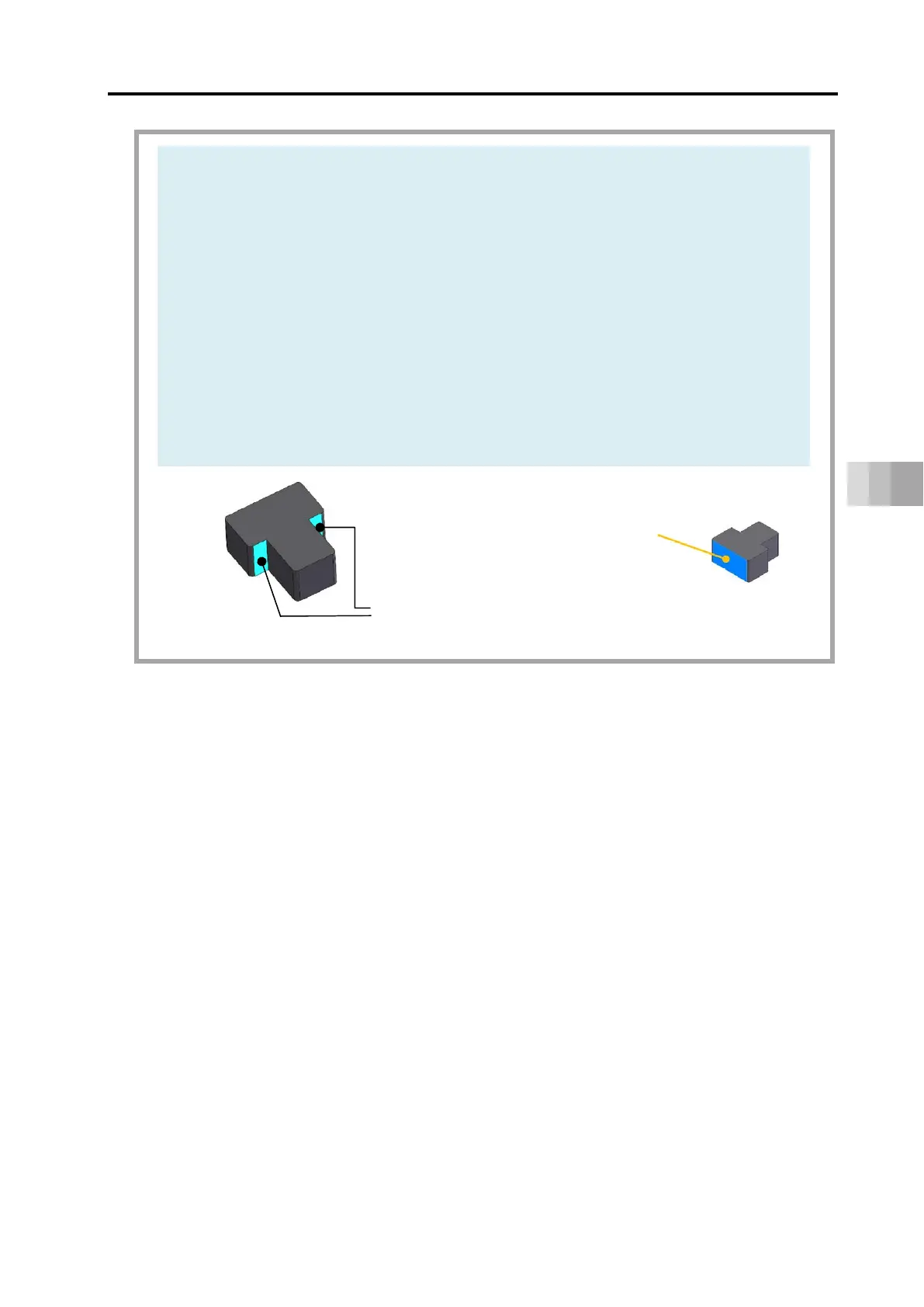

5) Affix the cushion, clean the shock absorbing surface on the cushion, and then apply
grease thinly on the surface with hand.
Cushion seating surface
pply grease
Shock absorbing surface
on intermediate support cushion
To Next Page
