8.6 How to replace components
8-38
8. Maintenance and Inspection
[Cushion application to front bracket and rear bracket]
Put a cushion to the groove on the bracket and affix it with the cushion holding plate.
* When tightening the screws, push the cushion and hold it while fixing the screws to
remove any clearance between the cushion and the bracket.
* After applied, confirm that the cushion is applied property without any clearance or
warpage.
* Affix the cushion, clean the shock absorbing surface on the cushion, and then apply
grease thinly on the surface with hand.

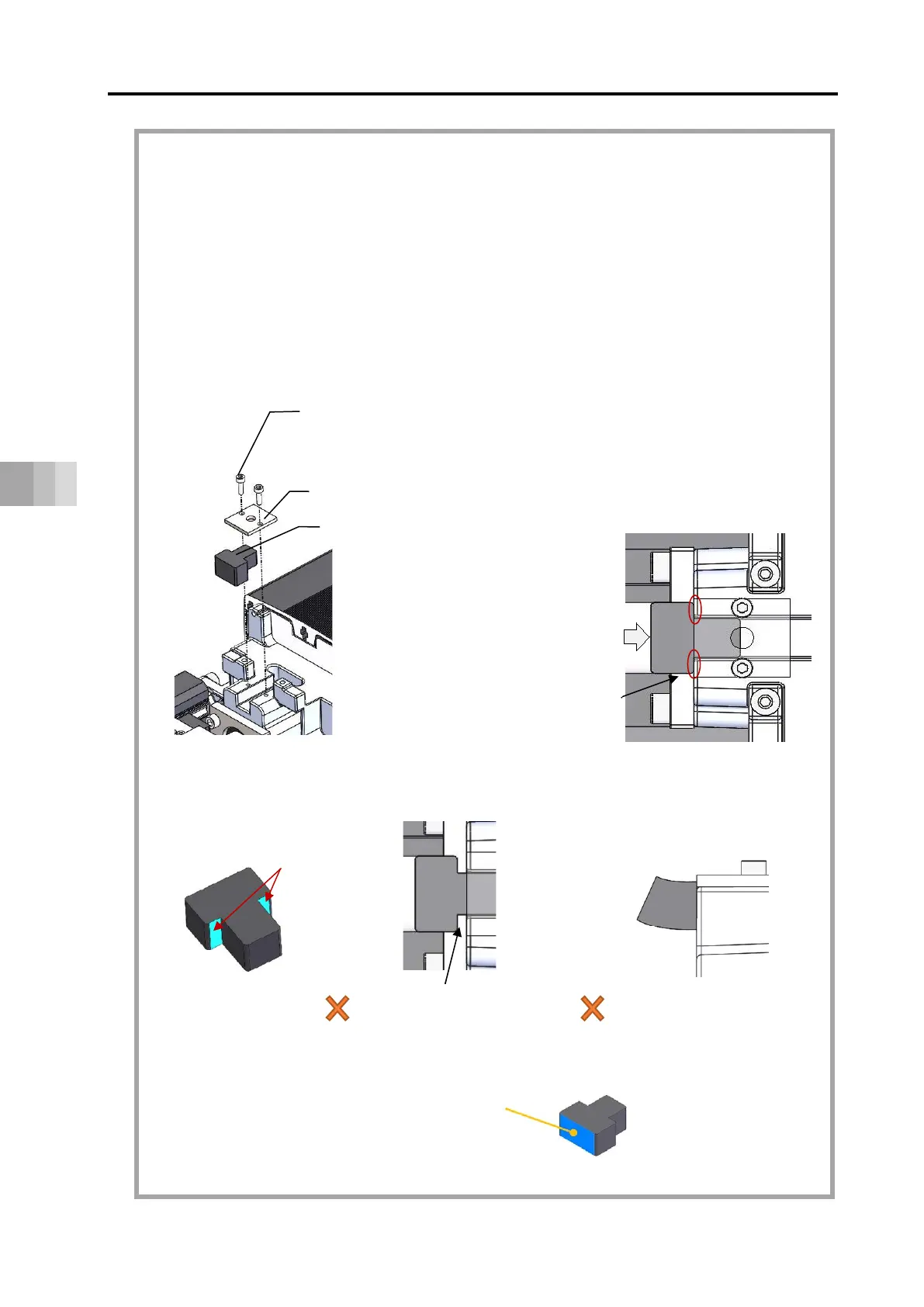

[For cushion fixation]
Hex socket head cap screw M3 2 pcs
Tightening torque: 1.54 N·m
Cushion holding plate
Cushion
Fix while pushing and
holding cushion
Sit it tight to remove any
clearance between the
cushion seating surface
and the bracket.
Cushion seating surface
There is clearance
between cushion seating
surface and bracket
Cushion is warped
(not horizontally applied)
pply grease
Shock absorbing surface
on intermediate support cushion
