8.6 How to replace components
8-40
8. Maintenance and Inspection
[Cushion application to slider]
Put a cushion to the groove on the block at the top of the slider and affix it with the
cushion holding plate.
* When tightening the screws, push the cushion and hold it while fixing the screws to
remove any clearance between the cushion and the support block.
* After applied, confirm that the cushion is applied property without any clearance or
warpage.
*
Affix the cushion, clean the shock absorbing surface on the cushion, and then apply
grease thinly on the surface with hand.

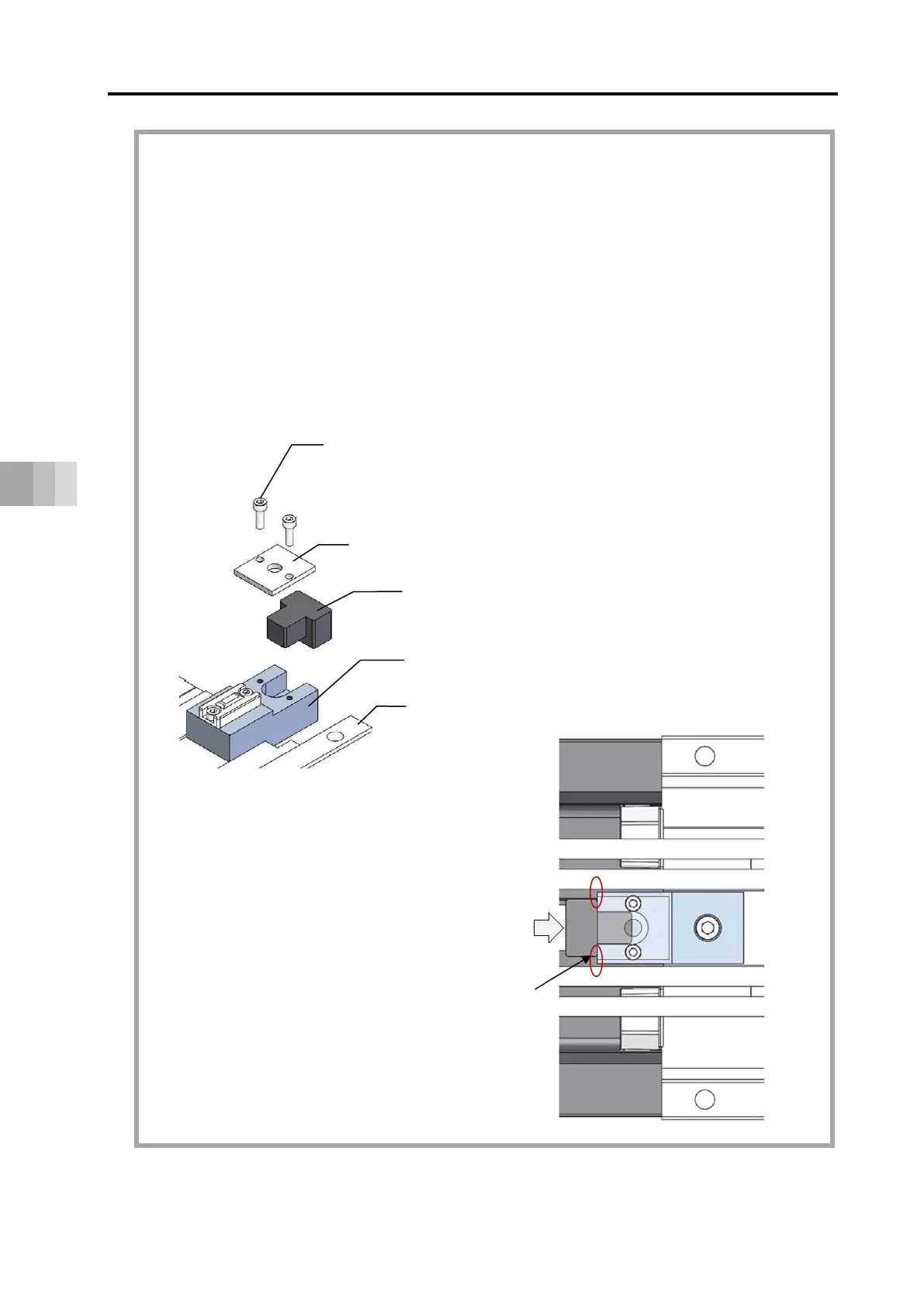

[For cushion fixation]
Hex socket head cap screw M3 2 pcs
Tightening torque: 1.54N·m
Cushion holding plate
Cushion
Slider
Support block
Fix while pushing and
holding cushion
Sit it tight to remove any
clearance between the
cushion seating surface
and the support block.
