Icom IC-7800 - Page 221

16-5

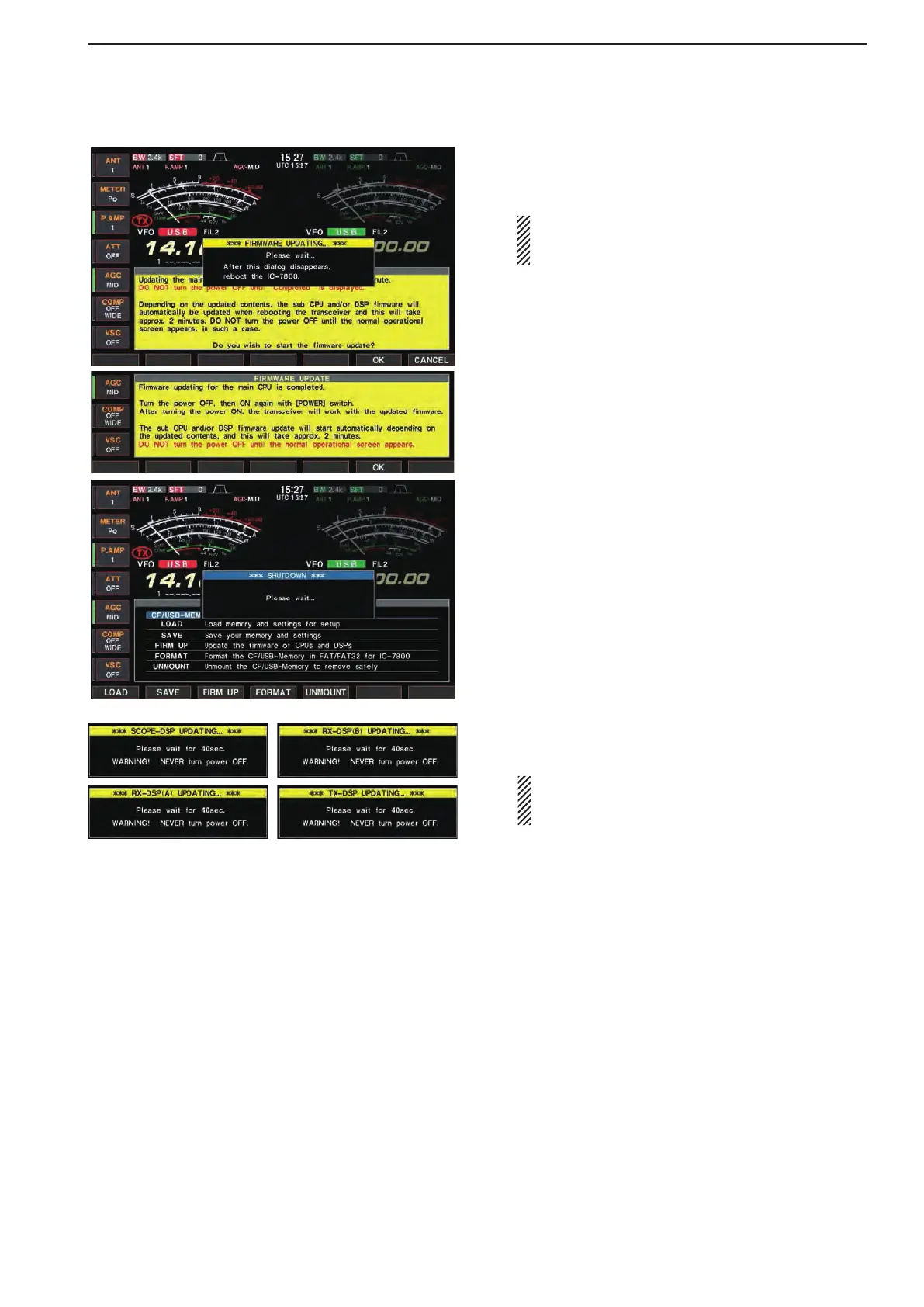

!3 After the firmware loading is completed, the trans-
ceiver starts the update automatically and the dia-
log as at left is displayed.
R WARNING! NEVER turn the IC-7800 power
OFF at this stage.
The transceiver firmware will be damaged.
!4 When the dialog disappears, the precaution as at
left is displayed.
!5 Read the precaution carefully, and then push
[F-6•OK].
 •ReturntoCF/USB-Memorysetmenu.
!6 Push [POWER] to turn the IC-7800 power OFF,
then ON again.
!7 Depending on the updating, one to four dialog as at
left appears in sequence.
R WARNING! NEVER turn the IC-7800 power
OFF at this stage.
The transceiver firmware will be damaged.
!8 After the dialog disappears, the firmware updat-
ing is completed and normal operation screen ap-
pears.
16
UPDATING THE FIRMWARE
