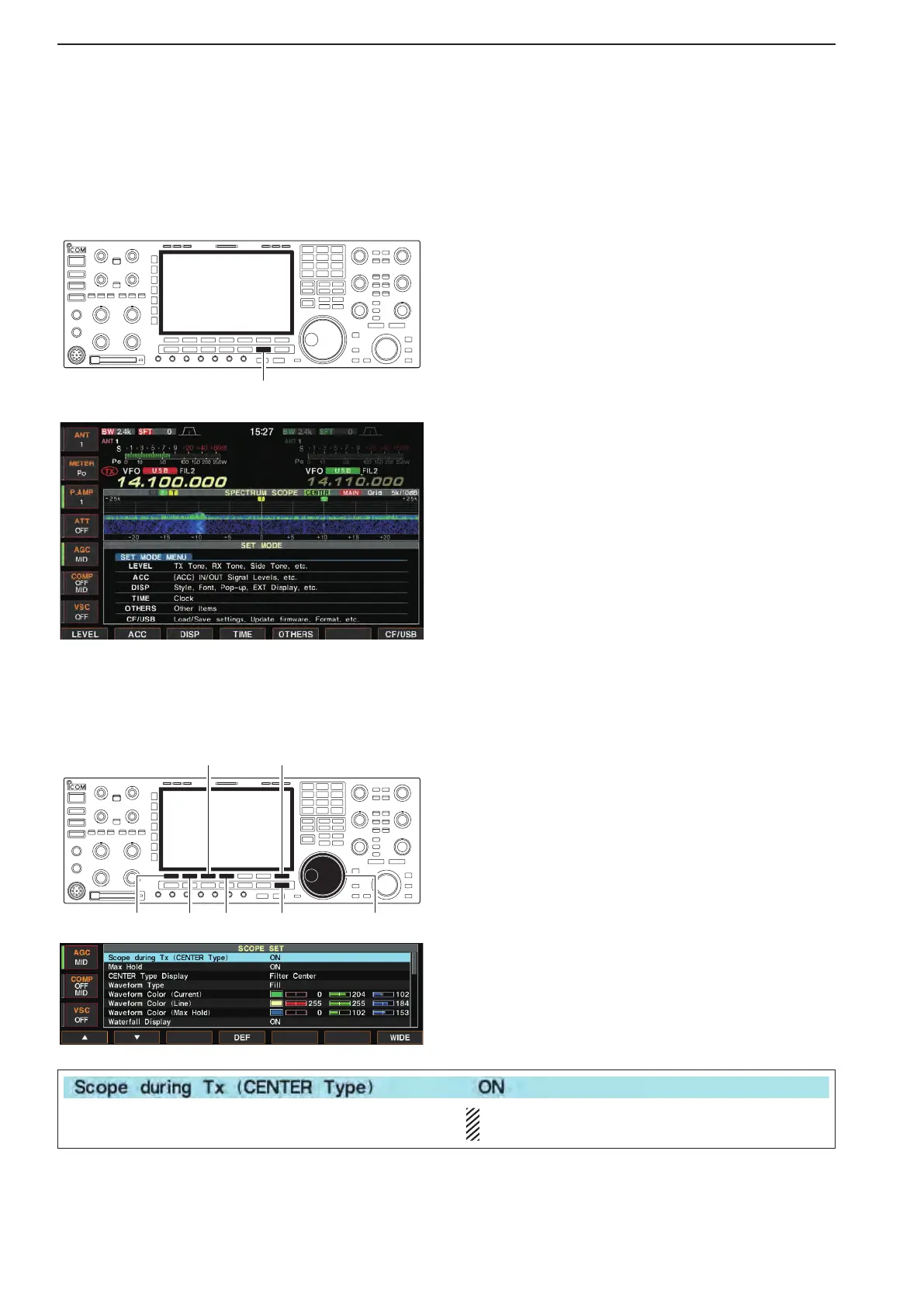

D Mini scope screen indication
The mini scope screen can be displayed with another
screen display, such as set mode menu, decoder
screen, memory list screen, etc. simultaneously.
[M.SCOPE]
q Set the scope mode (center or fix), marker, attenu-
ator, span, etc. in advance. (pp. 5-2, 5-3)
w Push [M.SCOPE] to toggle the mini scope indica-
tion ON or OFF.
 •TheS/RFmetertypeduringminiscopeindicationcan
be selected in display set mode (Meter Type (Wide
Screen) item). (p. 12-11)
D Scope set mode
This set mode is used to set the waveform color,
sweeping speed, scope range for fix mode, etc.
[F-1•Y] Main dial[EXIT/SET][F-2•Z][F-4•DEF]
[F-3•Ω ≈] [F-7•WIDE]
q During spectrum scope display ON, hold down
[F-7•WIDE/SET]toselectscopesetmodescreen.
 •Push[F-7•WIDE]totogglethescreensizebetweennor-
mal and wide.
wPush[F-1•Y ]or[F-2•Z] to select the desired set
item.
e Set the desired condition using the main dial.
 •Holddown[F-4•DEF]for1secondtoselectthedefault
condition or value.
 •Push [F-3•Ω ≈] to select the set contents for some
items.
r Push [EXIT/SET] to exit from set mode.
5
FUNCTIONS FOR RECEIVE
Turn the transmitting signal waveform indication ON
or OFF.
NOTE: The transmitting signal waveform indication
is available for the center mode only.
