SET MODE
■ Level set mode (continued)

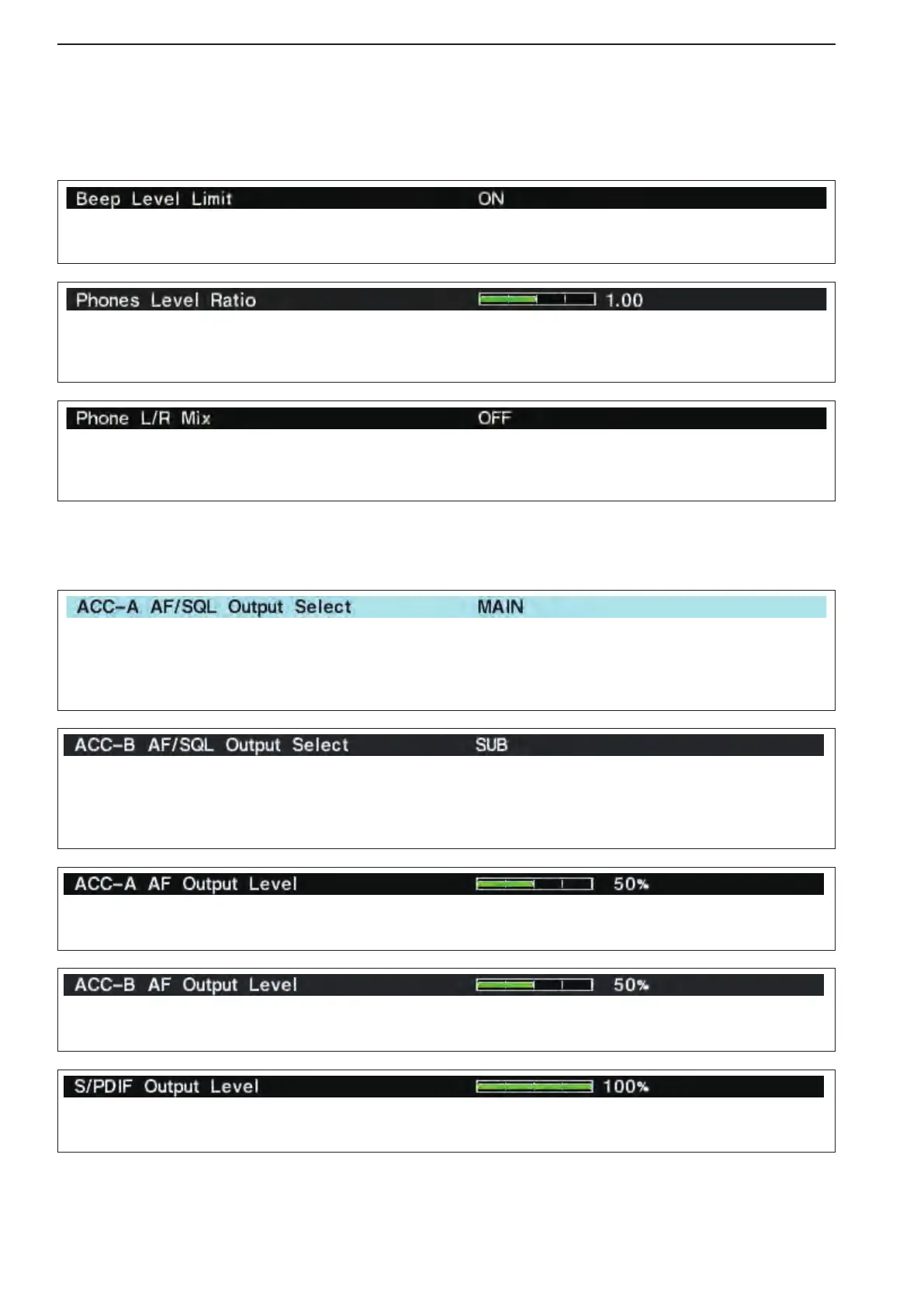

Sets the ratio for audio output level from the head-
phone toward to the internal speaker within 0.60 to
1.40 range in 0.01 steps. (default: 1.00)
Selects the headphone audio output. •OFF:Outputsthemainband’saudiofromtheleft,
and sub band’s audio from the right. (default)
•ON :Outputsthemixedaudio.
Selects the desired band for the audio and squelch
signals output from [ACC1–A] (Audio: pin 5, Squelch:
pin 6) from MAIN and SUB.
•MAIN :Main band’s AF and squelch signals are
output from [ACC1–A]. (default)
•SUB :Subband’sAFandsquelchsignalsareout-
put from [ACC1–A].
Selects the desired band for the audio and squelch
signals output from [ACC1–B] (Audio: pin 5, Squelch:
pin 6) from MAIN and SUB.
•MAIN :Main band’s AF and squelch signals are
output from [ACC1–B].
•SUB :Subband’sAFandsquelchsignalsareout-
put from [ACC1–B]. (default)
Sets the desired audio output level, output from
[ACC1–A], within 0 to 100% in 1% steps.
•Outputsapproximately200mVat50%(default)setting.
Sets the desired audio output level, output from
[ACC1–B], within 0 to 100% in 1% steps.
•Outputsapproximately200mVat50%(default)setting.
Sets the desired output level of [S/P DIF], within 0 to
100% in 1% steps. (default: 100%)
■ ACC set mode
Turns the beep output level limiting capability ON or
OFF. (default: ON)
