OTHER FUNCTIONS AND OPERATIONS
6

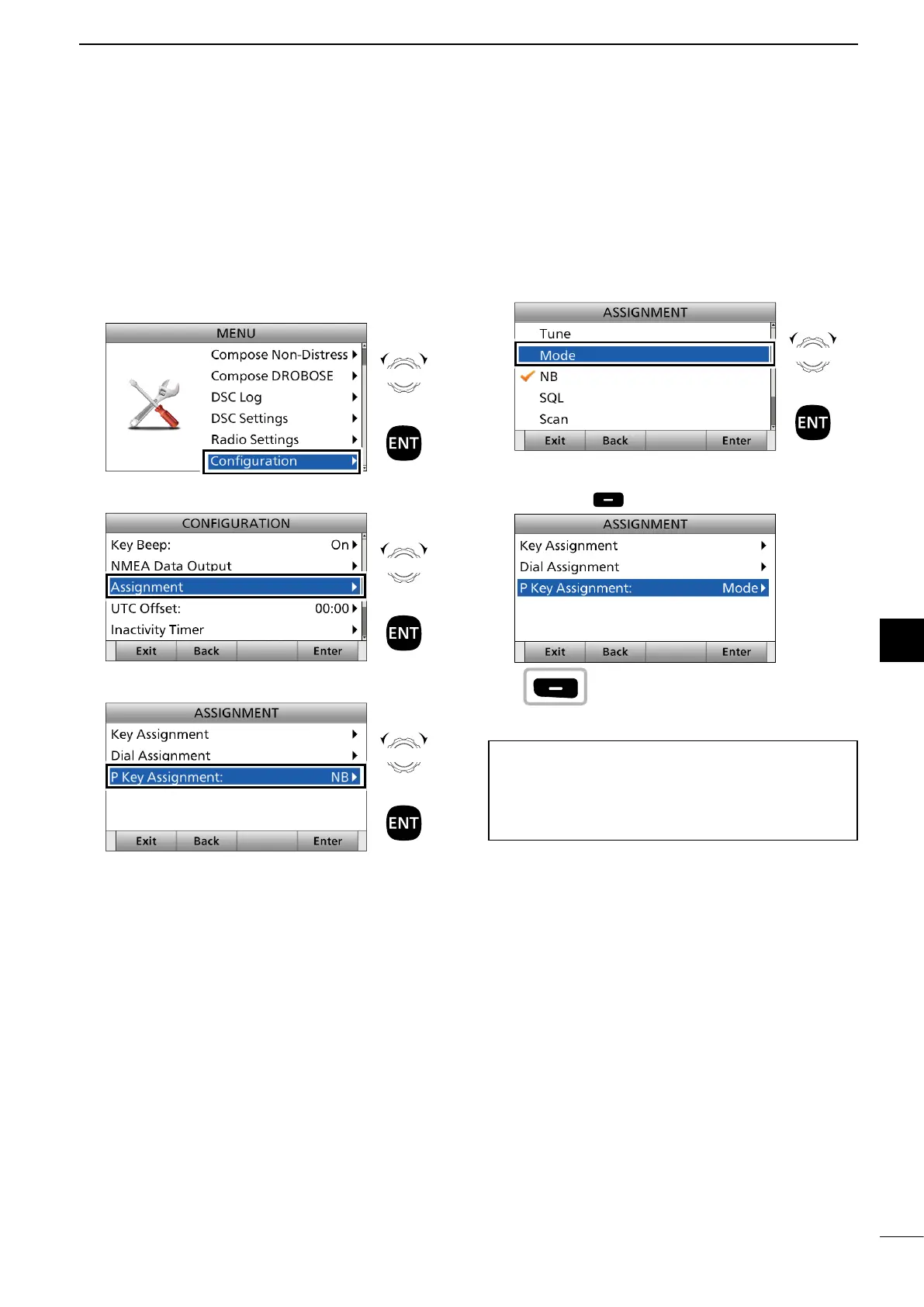

D Assigning a Software Key function to
[P] on the HM-214H
MICROPHONE
Example: Assigning “Mode” to [P].
1. Push [MENU].
2. Select “Configuration.”
3. Select “Assignment.”
4. Select “P Key Assignment.”
Rotate
+
Push
CH/GRP
Rotate
+
Push
CH/GRP
Rotate
+
Push
CH/GRP
5. Select a Software Key function. (Example: Mode)
• “Mode” is assigned to [P].
6. Push [Exit] to return to the Main screen.
TIP: You can con rm “Mode” is assigned to [P] after
returning to the Main screen.
Push [P] on the HM-214H
microphone
.
• The operating mode changes.
Rotate
+
Push
CH/GRP
Push
