GPS OPERATION
8-15
TransmittingD-PRSdata
When D-PRS is selected in the GPS TX mode, you can
transmit D-PRS data.
When operating in the D-PRS mode, the following
codes are transmitted to the PC.
D-PRS code is based on APRS
®
code.
(APRS
®
: Automatic Packet Reporting System).
D D-PRS
D-PRS is a function that simultaneously sends position
data received from the internal or external GPS receiv-
er, using the slow speed data packet space, along with
voice in the DV mode.
In an analog mode, you can transmit or receive only
voice or data at one time. However a D-PRS capable
radio can transmit or receive message data or GPS po-
sition data at the same time voice is being transmitted
or received.
I-GATE is required to send a position data to the APRS
server.
D OperatingD-PRS
To transmit in D-PRS, follow the steps below, and
for more details, see the pages listed along with the
steps.
 1. “MY”(Yourowncallsign)entering (p. 6-5)
 2.ReceivingGPSdata(p. 8-3)
 3.SetGPSTXMODEtoD-PRS (p. 8-17)
Set transceivers prior to the ID-5100A/E to D-PRS.
 4.SetTXinformation (pp. 8-17 to 8-24)
You must set SSID and symbol.
( GPS > GPS TX Mode > D-PRS > TX Format >
Position, Object, item or Weather > SSID, Symbol)

 Complete(YoucantransmitinD-PRS)
NOTE:
• If “GPS select” is set to “Manual,” the position data
entered in “Manual Position” is change to the D-PRS
format data to transmit. (p. 12-20)
(GPS > GPS Set > ManualPosition)
• Please note that if “GPS Auto TX” is set to any other
setting than “OFF,” the data is transmitted according
to the set time. (p. 8-41)
(GPS > GPS Auto TX)
I-GATE
I-GATE
JA3YUA-Z
APRS server
PC
You can check the
location on a map site.
D-STAR
repeater
Information from an APRS network
Voice, Messages and
D-PRS positions
Voice, Messages and
D-PRS positions
Voice, Messages and
D-PRS positions
Voice, Messages and
D-PRS positions
D-PRS positions
D-PRS positions
D-PRS
positions
<Using a repeater>
<Simplex>

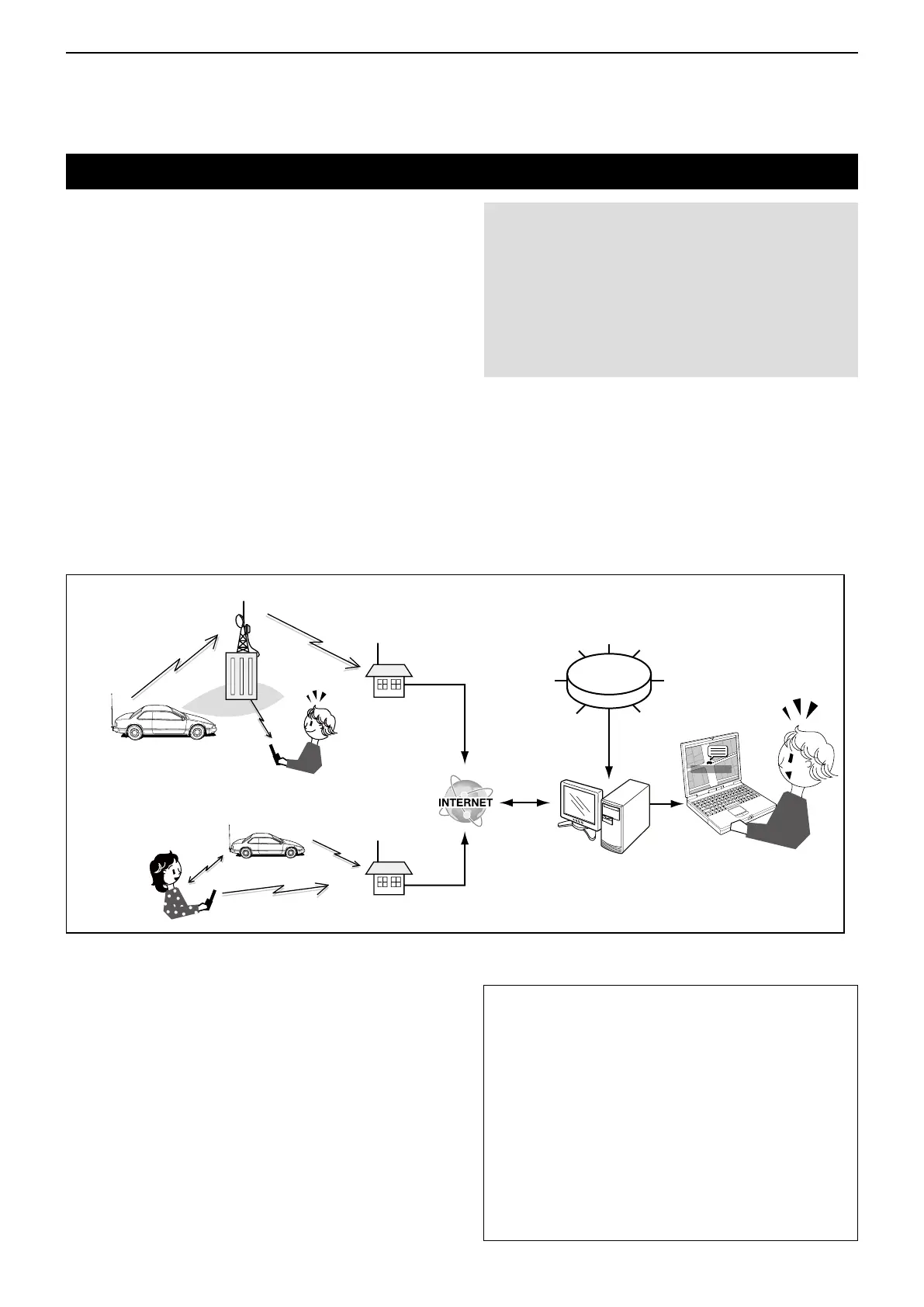

•TheimageofD-PRS
Foryourreference:
In D-PRS, you can transmit earthquake or weather
information, in addition to position information.
(GPS > GPS TX mode > TXformat)
[TXformatofD-PRS]
• Position (Mobile/Base):
Used to transmit position data.
• Object: Used to transmit specic position data.
(Time information can be included.)
• Item: Used to transmit specic position data.
(Time information cannot be included.)
• Weather: Used to transmit weather information.
