5 - ADJUSTMENTS AND SETTING-UP BOSS 332/545/552 HD
EN
5 - Pag. 15 / 34

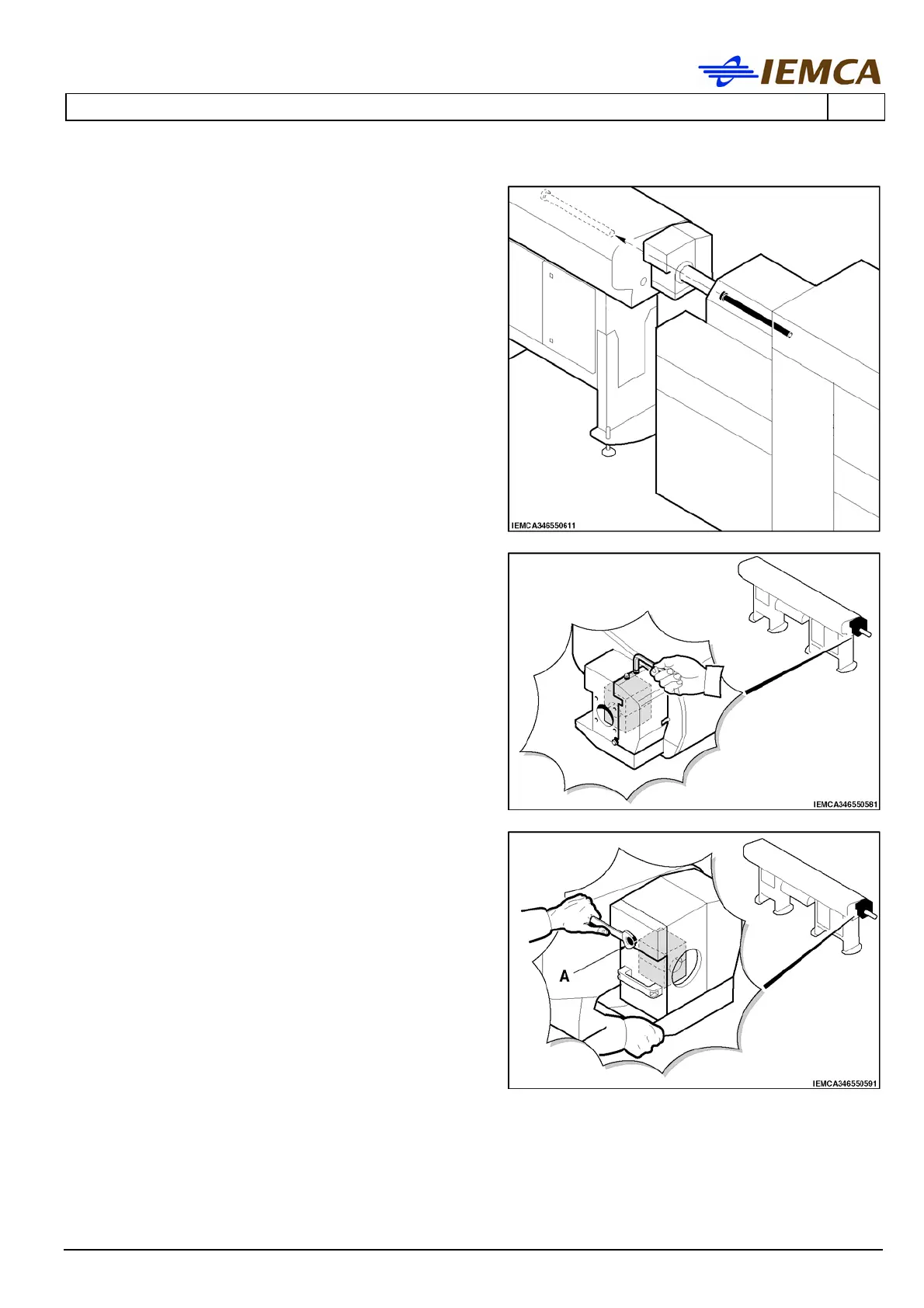

• If necessary, remove the lathe spindle liner and
install another one suitable for the diameter of
the guide channels.
Install front half bushes suitable for the bar in the
following way:
BOSS 332
• Insert the two half bushes and place the cover.
BOSS 545/552-HD
• Insert the upper half bush, turn the shaft "A"
and insert the lower half bush.
• Close the half bushes completely and place the
cover.
