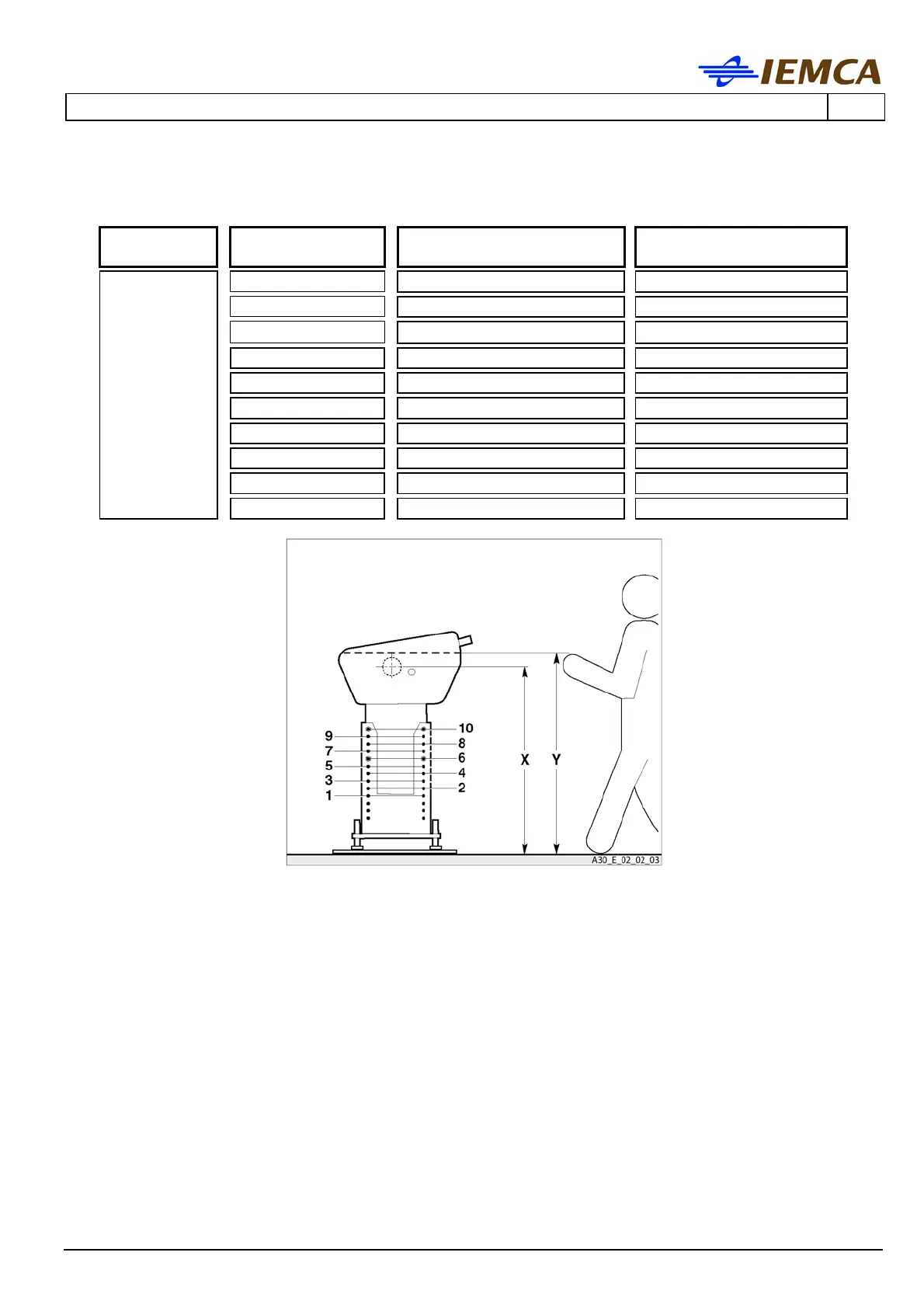

Working axis height with axial displacement
Model
Upper screws
position
X (mm)
Working axis height
Y (mm)
Max. loading height
1 905÷950 1100
2 945÷995 1135
3 980÷1020 1160
4 1015÷1055 1205
5 1050÷1090 1240
6 1095÷1125 1275
7 1115÷1160 1310
8 1155÷1195 1345
9 1190÷1230 1380
BOSS 332
BOSS 545
BOSS 552 - HD
10 1225÷1265 1415
